ZW type explosion-proof self-priming sewage pump

Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
Min. Order: 1 Set/Sets
Delivery Time: 15 Days

Basic Info

Model No.: BODA -093

Impeller Number: Single-Stage Pump

Working Pressure: High Pressure Pump

Influent Type of Impeller: Single Suction Pump

Position of Pump Shaft: Horizontal Pump

Pump Casing Combined: Verticaljoint Surface Pump

Mounting Height: Since Irrigation Centrifugal Pumps

Impeller: Open

Usage: Pump

Product Name: S Series Double Suction Pump

Additional Info

Packaging: wooden box

Productivity: 500

Brand: BODA

Transportation: Ocean,Land,Air

Place of Origin: china

Supply Ability: 500

Certificate: ISO9901

HS Code: 4101201190

Port: Tianjin,Qingdao,Shanghai

Product Description

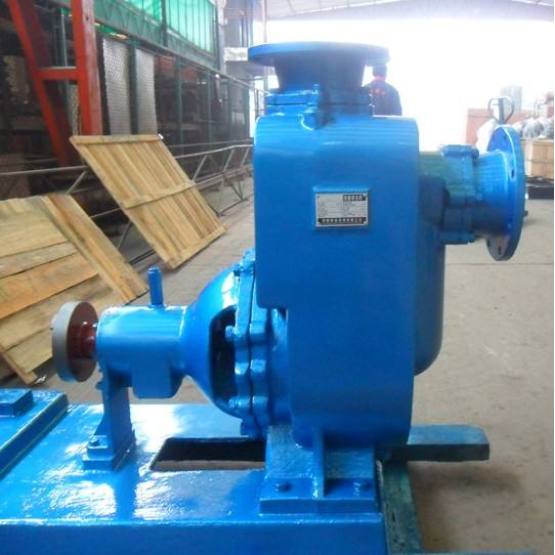

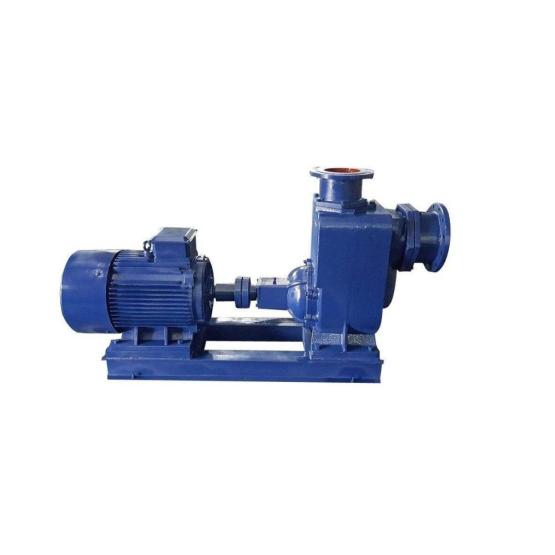

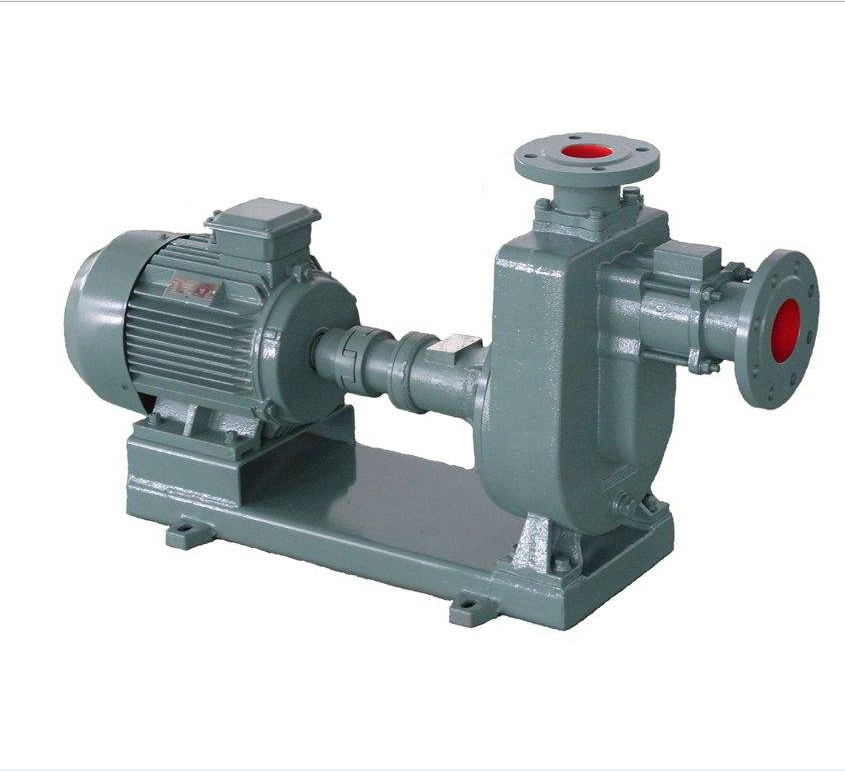

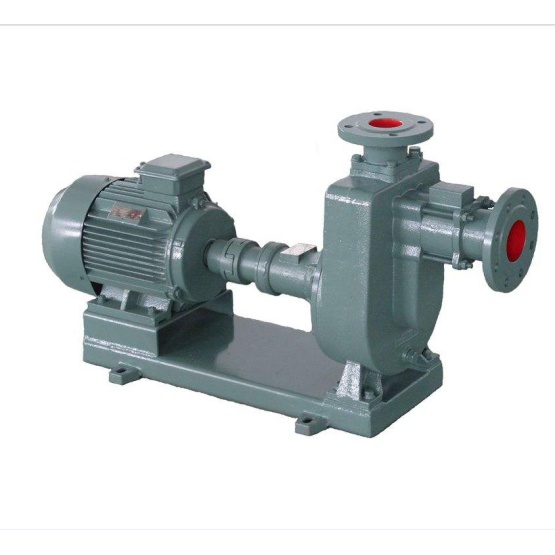

ZW type explosion-proof self-priming sewage pump  stainless steel self-priming sewage pump

Stainless steel self-priming sewage pump overview

      ZW self-priming sewage pump, also known as solid-liquid pump or impurity pump. The hydraulic design of this series of pumps is unique. The impeller is shrunk in a separate impeller chamber. The impeller chamber is connected to the pressure chamber. When the impeller rotates, the liquid in the pump produces a strong axial eddy current, which causes the inlet to create a vacuum and the outlet to generate a lift. Therefore, the impurities can be discharged from the pressurized water chamber, so that the flow passage is completely unobstructed, and the sewage discharge effect is unmatched by other self-priming sewage pumps. The ZW self-priming vortex does not block the sewage pump produced by this unit. It can be installed like a general self-priming pump without the installation of a bottom valve, and can also contain large solid blocks, long fibers, sediments, waste minerals, and manure treatment. Everything works sewage. Can be widely used in municipal sewage engineering, light industry, paper, textile, food, chemical, electrical, petroleum, mining and river pond farming industries. It is an ideal impurity pump for pumping solid particles, fibers, slurries and mixed suspensions in China. Performance range flow Q: 8 ~ 800 m3 / h Diameter DN: 25 ~ 300mm Head H: 15 ~ 80m Speed N: 2900 ~ 1450r / min Motor power: 1.5 ~ 55kw.

      ZW self-priming non-blocking sewage pump is the self-priming and sewage discharging system developed by our company based on the structure and performance of ZX self-priming centrifugal pump and QW submersible sewage pump, drawing on the advantages of similar foreign products. New pump type. It can be used as a general clean water self-priming pump without the need to install a bottom valve, without water, and can absorb dirt and sediment containing 60% of the diameter of the large solids and 1.5 times the diameter of the impeller. Waste ore impurities, manure treatment and all engineering sewage and colloidal liquids, completely reduce the labor intensity of manpower, and are easy to install and use, rarely repaired, and the performance has reached the international advanced level. It has a broad application market and development prospects. Using computer design and optimization processing, the company has strong technical strength, rich production experience and perfect testing methods to ensure the stability and reliability of product quality.

Stainless steel self-priming sewage pump

Applicable to chemical, petroleum, pharmaceutical, mining, paper, fiber, pulp, textile, food, power plant and municipal sewage projects, public facilities sewage, river pond farming and other industries.

1. Ambient temperature ≦ 50 ° C, medium temperature ≦ 80 ° C special requirements up to 200. ° C

2. The medium PH value is 6-9 for cast iron and 2-13 for stainless steel.

3. The medium weight does not exceed 1240 kg / m3

4. The self-priming height should not exceed the specified value of 4.5-5.5 meters, and the length of the suction pipe is ≦10 meters.

5. Through the capacity of the suspended particles diameter is 60% of the pump diameter, the fiber length is 5 times the pump diameter.

Stainless steel self-priming sewage pump product advantages

1. Strong sewage discharge capacity: special impeller anti-blocking design ensures that the pump is efficient and non-blocking.

2, high efficiency and energy saving: the use of excellent hydraulic model, the efficiency is 3 to 5% higher than the general self-priming pump.

3, self-priming performance: self-priming height is 1 meter higher than the general self-priming pump, and the self-priming time is shorter.

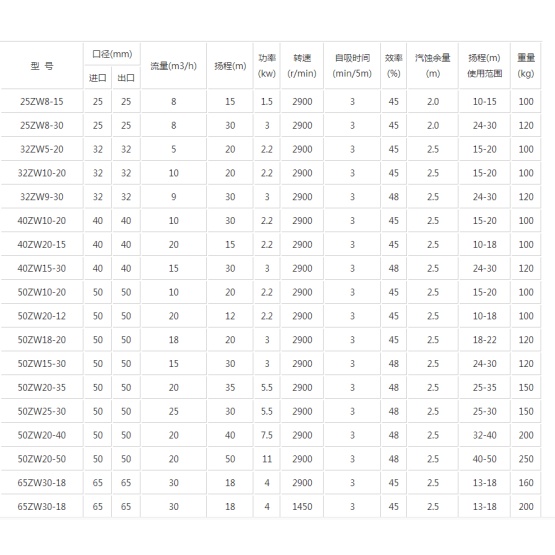

Stainless steel self-priming sewage pump technical parameters

Flow rate: 5-800m3/h;

Head: 12-60m;

Motor power: 2.2-132KW;

Speed: 1450-2900r/min;

Caliber: φ25-φ300;

Medium temperature: ≤100 °C;

Self-priming height: 4.5-6.0m.
