AS AV type tear diving sewage pump

Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
Min. Order: 1 Set/Sets
Delivery Time: 15 Days

Basic Info

Model No.: BODA-095

Impeller Number: Single-Stage Pump

Working Pressure: High Pressure Pump

Influent Type of Impeller: Single Suction Pump

Position of Pump Shaft: Horizontal Pump

Pump Casing Combined: Verticaljoint Surface Pump

Mounting Height: Since Irrigation Centrifugal Pumps

Impeller: Open

Usage: Pump

Product Name: S Series Double Suction Pump

Additional Info

Packaging: wooden box

Productivity: 500

Brand: BODA

Transportation: Ocean,Land,Air

Place of Origin: china

Supply Ability: 500

Certificate: ISO9901

HS Code: 4101201190

Port: Tianjin,Qingdao,Shanghai

Product Description

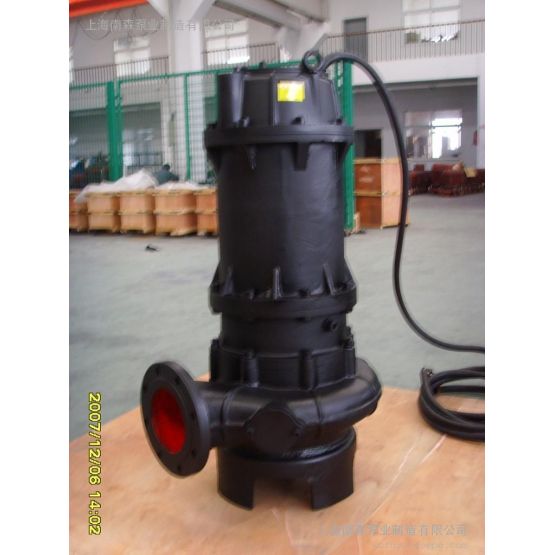

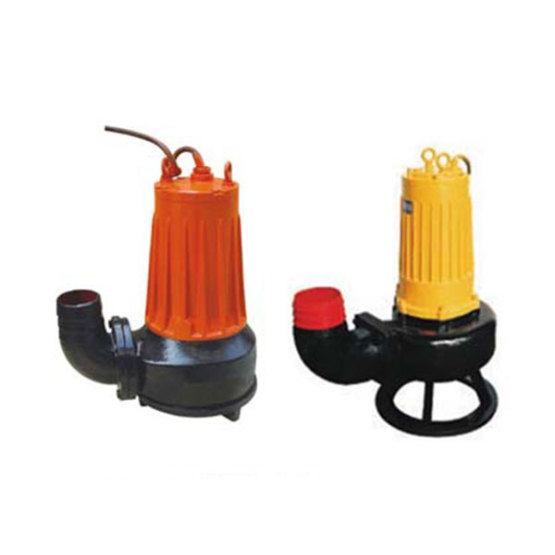

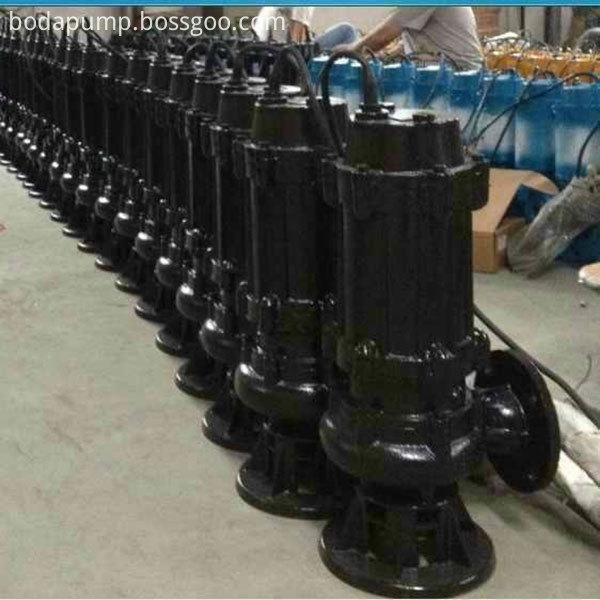

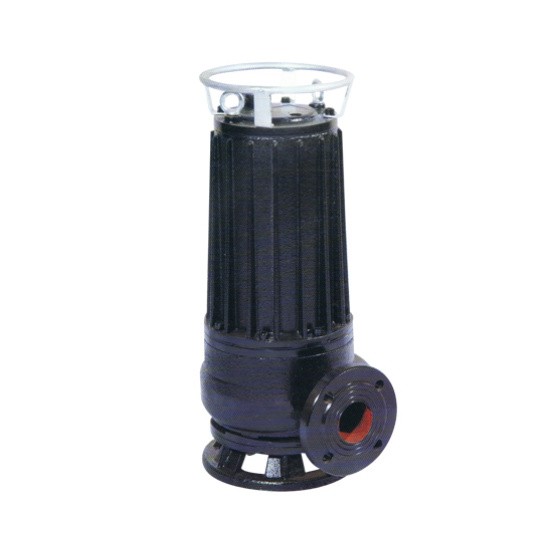

AS AV type tear diving sewage pump  5

AS, AV type tearing submersible sewage pump product overview

      AS, AV submersible sewage pump is developed by the company using advanced German technology. This series of pumps has a tearing structure, which can tear and cut long fibers, bags, belts, grass, cloth and other materials in the sewage. And then discharged smoothly, especially suitable for conveying liquids containing hard solids, fibrous materials and particularly dirty, sticky and slippery liquids. The hydraulic performance of this series of sewage pump is advanced and mature, and the products have passed the performance test, and all the indicators meet the relevant design requirements. The company's products are all designed and optimized by computer. The company has strong technical strength, rich production experience and perfect testing methods to ensure the stability and reliability of product quality.

Main features of AS and AV type tearing submersible sewage pump

◆ Adopt advanced technology, strong sewage discharge capacity, no clogging, and can effectively pass solid particles with diameter φ30-φ80 mm.

◆ The tearing mechanism can tear, cut off, and then discharge the fiber material without adding a strainer to the pump.

◆ The design is reasonable, the supporting motor power is small, and the energy saving effect is remarkable.

◆ The mechanical seal of the new material can make the pump run safely for more than 8000 hours.

◆ Compact structure, convenient movement and simple installation, which can reduce the construction cost and eliminate the need to build a pump house.

◆ It can be used within the full lift range to ensure that the motor will not be overloaded.

◆ Floating ball days can automatically control the start and stop of the pump according to the required water level change, without special care.

◆ Double rail automatic installation system, which brings great convenience to installation and maintenance, people do not have to enter and exit the sump.

◆ Equipped with fully automatic protection control box to effectively protect the product from leakage, water leakage and overload, which improves the safety and reliability of the product.

AS, AV type tearing submersible sewage pump main use

◆ Discharge of serious polluted wastewater from factories and businesses

◆ Sewage discharge from hospitals and hotels

◆ Urban sewage treatment plant discharge system

◆ Municipal engineering, construction site

◆ Sewage drainage system in residential areas

◆ Exploration, mine supporting machine

◆ Rural biogas digesters and farmland irrigation

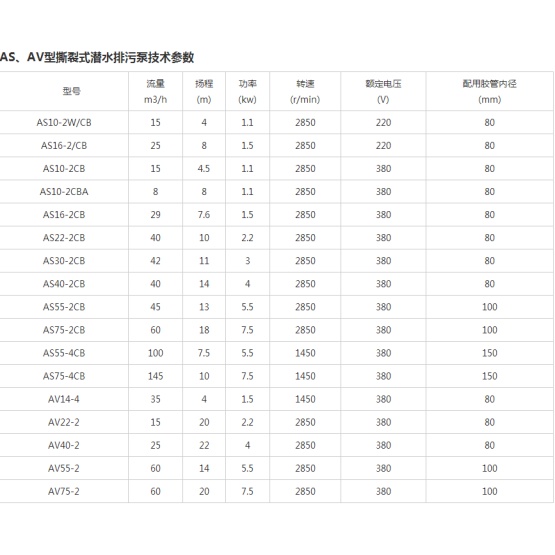

AS, AV type tearing submersible sewage pump use range

Flow rate: 15-145m3/h

Head: 4-25m

Speed: 1450-2900r/min

Caliber: φ76-φ152

Temperature range: -15-+40°C

Working pressure: ≤1.0Mpa

AS, AV type tearing submersible sewage pump model meaning

Example: AS/AV 10-2W/CB-A

AS-single blade impeller

AV-swirl impeller

10-motor power P2 × 10 (adjusted)

2-pole number of motors

W-voltage is 220V
