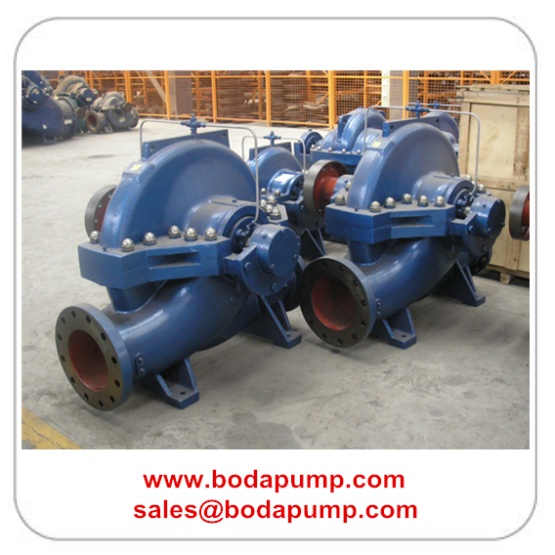

Large Flow Rate Double Suction Water Pump

Payment Type: L/C,T/T,Western Union
Incoterm: FOB,CFR,CIF
Min. Order: 1 Set/Sets
Delivery Time: 20 Days

Basic Info


Model No.: XS

OEM:: Yes

Position Of Pump Shaft: Horizontal Pump

Origin: Shijiazhuang

Color: As Your Requirement

Power: Electric Or Diesel

Theory:: Centrifugal Pump

Material: Cast Iron, Stainless Steel, Etc

Structure:: Double Suction Water Pump

Application:: Transfer Water

Model No.: XS


Additional Info


Packaging: In Wooden case or as your requirement

Productivity: 300sets/month

Brand: Boda

Transportation: Ocean,Land,Air

Place of Origin: Shijiazhuang

Certificate: ISO


Product Description

Double Suction Diesel Dewatering Water Pump Description:
High Flow Rate Horizontal Split Case Double Suction Centrifugal Water/Sewage Pump is used for conveying water or the physical and chemical properties similar to water and other liquids, is transported liquid temperature shall not be higher than 80 DEG C, suitable for factories, mines, urban water supply, power stations, agricultural irrigation and water conservancy.

Double Suction Diesel Dewatering Water Pump Characteristic:
Compact structure,beautiful outline,stable operation,low noise;
Both inlet and outlet of this pump are placed under the axial line,so it is unnecessary to remove the inlet and outlet pipeline and motor;
The shaft seal of water pump has fine mechanical seal and soft stuffing seal,which can be selected according to different condition by user;
The impeller is static-balance calibrated,fixed on the shaft with round nut,and its axial position can be adjusted via the round nut;
The pump is direct drived by motor via resilient coupling,it can be drived by internal combustion engine if it is necessary.


Double Suction Diesel Dewatering Water Pump General:
Inlet Diameter: 150-800mm
Capacity: 112-3600m3/h
Head: 9-140m
Rotation Speed: 970-2950r/min
Power: 18.5-850kW

Pump Medium:
    Clean water and other liquids that their physical and chemical property is  similar to clear water, solid contents don't exceed 80mg/l; It can pump industrial corrosive waste water, seawater and rainwater including suspend substance etc, when adopting special material.


Structure type:

The split-casing centrifugal pump is horizontal, the pump case is horizontal on the shaft axial, the up parts is the pump cover, the down parts is the pump casing, the suction and the discharge are all under the axial, its centerline is perpendicular to the axis.It can open the pump cover and take out the rotor parts without disassembling the inlet and outlet pipes when overhauling. The shaft sealing is the soft packing sealing or the mechanical sealing.


The rotation direction:
Viewed from motor, the direction of the pump is anti-clockwise,that is the suction in the left, the discharge in the right.
The rotating direction of the type xxxS-xx pump is clockwise, that is the suction in the right, the discharge in the left.
Also can move the driver to another edge according to the user requires. Then, the rotating direction, the suction and discharge direction is in the opposite as the described above.


The main parts materials:
The materials of the flow parts is the casting iron, the impeller can be the casting steel and the brass if in need, but should remark in the contract.


water pump
