GW type pipeline sewage pump

Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
Min. Order: 1 Set/Sets
Delivery Time: 15 Days

Basic Info

Model No.: BODA-094

Impeller Number: Single-Stage Pump

Working Pressure: High Pressure Pump

Influent Type of Impeller: Single Suction Pump

Position of Pump Shaft: Horizontal Pump

Pump Casing Combined: Verticaljoint Surface Pump

Mounting Height: Since Irrigation Centrifugal Pumps

Impeller: Open

Usage: Pump

Product Name: S Series Double Suction Pump

Additional Info

Packaging: wooden box

Productivity: 500

Brand: BODA

Transportation: Ocean,Land,Air

Place of Origin: china

Supply Ability: 500

Certificate: ISO9901

HS Code: 4101201190

Port: Tianjin,Qingdao,Shanghai

Product Description

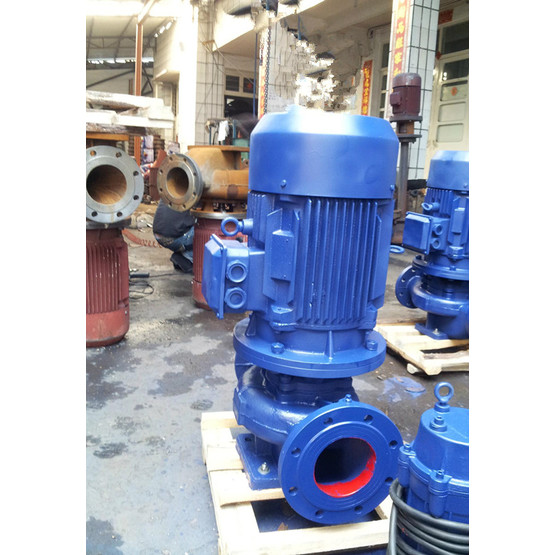

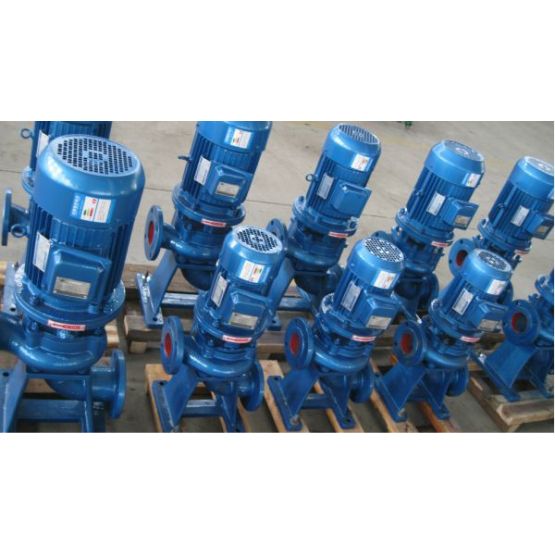

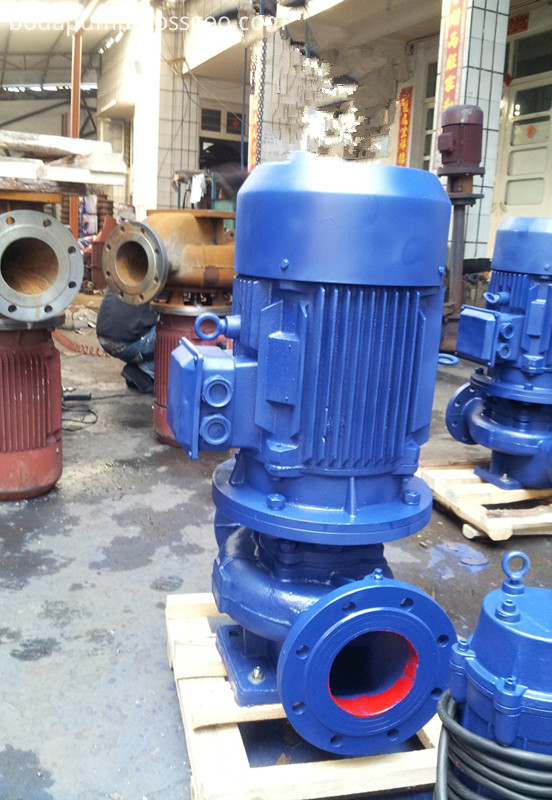

GW type pipeline sewage pump  explosion proof pipeline type non blocking sewage pump 7 2

GW type pipeline sewage pump  explosion proof pipeline type non blocking sewage pump 7 8

Pipeline non-blocking sewage pump overview

      GW type vertical pipeline sewage pump is convenient to install and can be used as a general pipeline pump for pressurized water supply of high-rise buildings. It can also transport sewage containing granular fiber. In addition to transporting sewage, it is also suitable for use as a drainage pump. Flush the condensing circulation pump, etc. The pumps feature a unique impeller structure and a new mechanical seal that efficiently transports solids and long fibers. Compared with the conventional impeller, the impeller is in the form of a single flow channel or a double flow channel. It is similar to a curved pipe of the same cross-section. It has very good over-flow and is equipped with a reasonable volute to make the pump efficient. High and impeller dynamic and static balance test, so that the pump has no vibration during operation.

Pipeline type non-blocking sewage pump

     GW series pipeline type non-clogging sewage pump is suitable for the discharge of serious polluted wastewater from the factory, the sewage discharge station in the main residential area, the water distribution system of the urban sewage treatment plant, the water supply equipment of the water supply plant, the hospital, the hotel. Sewage discharge, municipal engineering construction sites, mine supporting machines, rural biogas digesters, farmland irrigation and other industries, transporting granular sewage, dirt, can also be used for clean water and with weak corrosive media.

Pipeline non-blocking sewage pump use conditions

A. The ambient temperature of the sewage pump is ≤40°C, the humidity is ≤95%, and the altitude is ≤1000m.

B. The medium temperature does not exceed 60 ° C, and the medium weight is 1 to 1.3 kg / dm 3 .

C, the use of cast iron material range PH5 ~ 9.

D, stainless steel material can use general corrosive media.

E. The use environment should not exceed 1000 meters above sea level. When the above conditions are exceeded, it should be submitted at the time of ordering to provide you with more reliable products.

Note: If the user has special temperature, medium and other requirements, please specify the details of the transport medium when ordering, so that the unit can provide more reliable products.

Pipe type non-blocking sewage pump product features

1. The pump and the motor are directly connected coaxially, belonging to the electromechanical integration product, with compact structure and stable performance.

2, large flow channel anti-blocking hydraulic components design, greatly improve the ability of dirt to pass, can effectively pass the pump diameter of 5 times the fiber material and the diameter of the pump diameter of about 50% of the solid particles.

3. The design is reasonable, the matching motor is reasonable, the efficiency is high, the noise is low, and the energy saving effect is remarkable.

4. The mechanical seal adopts hard wear-resistant tungsten carbide, which has the characteristics of durability and wear resistance, which can make the pump run safely for more than 8000 hours.

5, the pump is a vertical structure, the center line of the import and export is on the same horizontal line, and the specifications of the inlet and outlet flanges are the same, and the installation and disassembly are very convenient.

6, small footprint, no need to build a machine room, can save a lot of infrastructure costs; add a protective cover on the motor fan end, the whole machine can be placed outdoors.
