Basic Info

Model No.: BODA-096

Impeller Number: Single-Stage Pump

Working Pressure: High Pressure Pump

Influent Type of Impeller: Single Suction Pump

Position of Pump Shaft: Horizontal Pump

Pump Casing Combined: Verticaljoint Surface Pump

Mounting Height: Since Irrigation Centrifugal Pumps

Impeller: Open

Usage: Pump

Product Name: S Series Double Suction Pump

Additional Info

Packaging: wooden box

Productivity: 500

Brand: BODA

Transportation: Ocean,Land,Air

Place of Origin: china

Supply Ability: 500

Certificate: ISO9901

HS Code: 4101201190

Port: Tianjin,Qingdao,Shanghai

Product Description

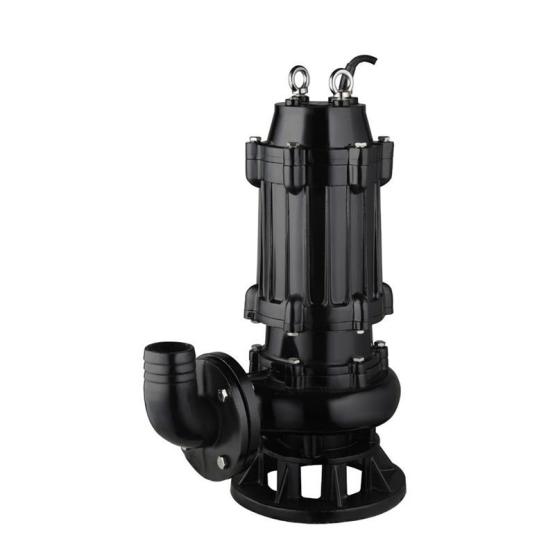

Submersible sewage pump overview

WQ (QW) series submersible non-blocking sewage pump is based on the introduction of foreign advanced technology, and through the joint efforts of the scientific research personnel of our factory, it also extensively solicits the opinions of domestic water pump experts, and has successfully developed through many improvements. After testing various performance indicators, it has reached the advanced level of similar foreign products. Submersible sewage pump flow: 7∽2400m3/h, head: 7∽60m, etc. The submersible sewage pump is designed and manufactured into WL, YW and GW series products with the same performance parameters according to the medium used and installed.

Submersible sewage pump product features

1. The unique single-piece or double-wheel structure greatly improves the dirt passing ability, and can effectively pass the fiber material of the pump diameter and the solid particles with a diameter of about 50% of the pump diameter.

2. The mechanical seal adopts a new type of hard and corrosion-resistant titanium carbide material, which can make the pump run safely for more than 8000 hours.

3, the overall structure is compact, small size, small noise, significant energy-saving effect, easy maintenance, no need to build a pump room, sneak into the work, greatly reducing the project cost.

4. There is a high-precision interference water leakage detection sensor in the sealed oil chamber. The thermal resistance component is embedded in the stator winding, and the pump motor is automatically protected.

5, can be equipped with automatic control cabinet according to user needs, automatic protection of the pump leakage, leakage, overload and over-temperature, improve the safety of the product and reliability.

6. The float switch can automatically control the start and stop of the pump according to the required liquid level change, without special care, and is extremely convenient to use.

7. WQ series submersible sewage pump can be equipped with double-rail automatic coupling installation system according to user needs. It is more convenient to install and maintain, and people do not have to enter the sump for this purpose.

8, can be used in the full lift, and ensure that the motor will not overload.

9. Submersible sewage pump has two different installation methods, fixed automatic coupling installation system and mobile free installation system.
