LW vertical non-blocking sewage pump
Model No.: BODA-097
Impeller Number: Single-Stage Pump
Working Pressure: High Pressure Pump
Influent Type of Impeller: Single Suction Pump
Position of Pump Shaft: Horizontal Pump
Pump Casing Combined: Verticaljoint Surface Pump
Mounting Height: Since Irrigation Centrifugal Pumps
Product Name: S Series Double Suction Pump
Packaging: wooden box
Place of Origin: china
Supply Ability: 500
HS Code: 4101201190
LW vertical non-blocking sewage pump overview
LW vertical non-blocking sewage pump is imported from foreign advanced technology, through absorption and transformation, and all performance indicators have reached the level of similar products of national standards. Due to the unique single (double) channel impeller, the sewage discharge capacity is strong, and it can effectively pass through the 5 times of the pump diameter and the solid particles with the diameter of the pump diameter of 50%. The dynamic seal uses two sets of special materials of the hard alloy mechanical seal. The device is made of cast iron and stainless steel. The pumps feature a unique impeller structure and a new mechanical seal that efficiently transports solids and long fibers. Compared with the conventional impeller, the impeller is in the form of a single flow channel or a double flow channel. It is similar to a curved pipe of the same cross-section. It has very good over-flow and is equipped with a reasonable volute to make the pump efficient. High and impeller dynamic and static balance test, so that the pump has no vibration during operation. The hydraulic performance of the pump is advanced and mature. The performance indicators of the products have reached the relevant standards. After the products are put on the market, their unique effects, reliable performance and stable quality are welcomed and praised by the users.
LW vertical non-blocking sewage pump product features
1. Adopting the unique single-blade or double-blade impeller structure, which greatly improves the ability of the dirt to pass through, and can effectively pass the 5 times of fibrous material and the diameter of the pump with a diameter of about 50% of the same body;
2. The mechanical seal adopts a new type of hard all-gold corrosion-resistant tungsten carbide material, which makes it run in the oil chamber for a long time, which can make the pump run safely for more than 8000 hours;
3. The overall structure is compact, the volume is small, the noise is small, the energy saving effect is remarkable, the maintenance is convenient, and the motor adopts the standard Y series motor, which is convenient for the user to replace;
4. The automatic control cabinet can automatically control the over-motion and stop of the pump according to the required liquid level change, without special care, and it is very convenient to use;
5. It can be equipped with square plate and disc installation system according to the needs of users. It brings great convenience to installation and maintenance, and people can enter the sump without having to do this;
6, can be used within the full lift range, and ensure that the motor will not overload;
7. The sewage pump is equipped with an outdoor type motor, so there is no need to build a pump room, and it can be directly installed in outdoor use to save money;
8. The pump is a vertical structure.
LW non-blocking sewage pump product use
LW series non-blocking sewage pump is suitable for the discharge of serious polluted wastewater from the factory, the sewage discharge station in the main residential area, the water distribution system of the urban sewage treatment plant, the water supply equipment of the water supply plant, the sewage discharge of hospitals and hotels. Municipal engineering construction sites, mine supporting machines, rural biogas digesters, farmland irrigation and other industries, conveyor belt particles of sewage, dirt, can also be used for clean water and with weak corrosive media.
LW non-blocking sewage pump operating conditions
1. The ambient temperature of the sewage pump is ≤40°C, the humidity is ≤95%; the altitude is ≤1000m, and it should be submitted at the time of ordering.
2. The medium temperature does not exceed 60 ° C, and the medium weight is 1 ~ 1.3 kg / dm3.
3, the use of cast iron material is PH5 ~ 9.
4, 1Cr18Ni9Ti stainless steel material can use general corrosive medium.
5, the use of the environment altitude does not exceed 1000 meters, when it is exceeded, should be submitted at the time of order, in order to provide you with more reliable products.
Note: If the user has special temperature, medium and other requirements, please specify the details of the transport medium when ordering, so that the unit can provide more reliable products.

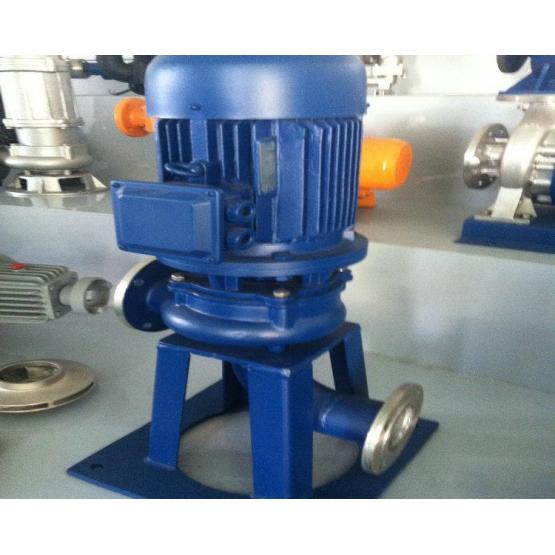

LW vertical sewage pump structure description
The LW vertical sewage pump is a single-suction volute type pump. The pump is equipped with a non-blocking and anti-winding single (double) large flow channel impeller, which has a good passing ability. This series of pumps has two structural forms, one is that the motor is directly coaxial with the pump, the other is connected by a coupling, and the motor uses a standard vertical motor. The structure diagram is as follows, each structure has two types of base connection, one is imported horizontal suction, has a corner function, can be placed into 0°, 90°, 180°, 270° according to the requirements of use, to facilitate the pipeline The connection is the second, the inlet is axially inhaled, which is convenient for vertical installation.
