IHF explosion-proof fluoroplastic lined centrifugal pump

Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
Min. Order: 1 Set/Sets
Delivery Time: 15 Days

Basic Info

Model No.: BODA-077

Product Name: S Series Double Suction Pump

Additional Info

Packaging: wooden box

Productivity: 500

Brand: BODA

Transportation: Ocean,Land,Air

Place of Origin: china

Supply Ability: 500

Certificate: ISO9901

HS Code: 4101201190

Port: Tianjin,Qingdao,Shanghai

Product Description

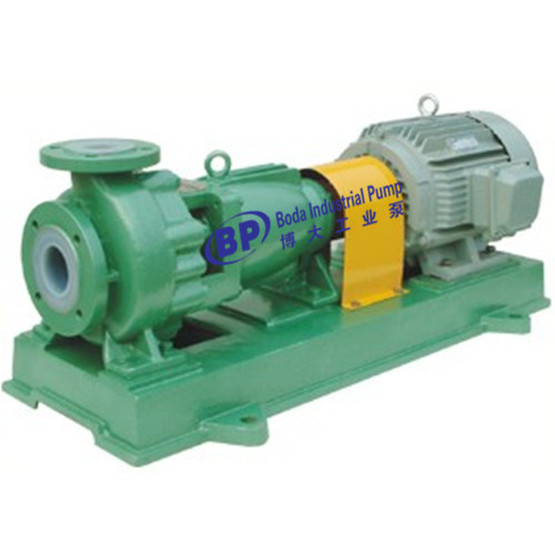

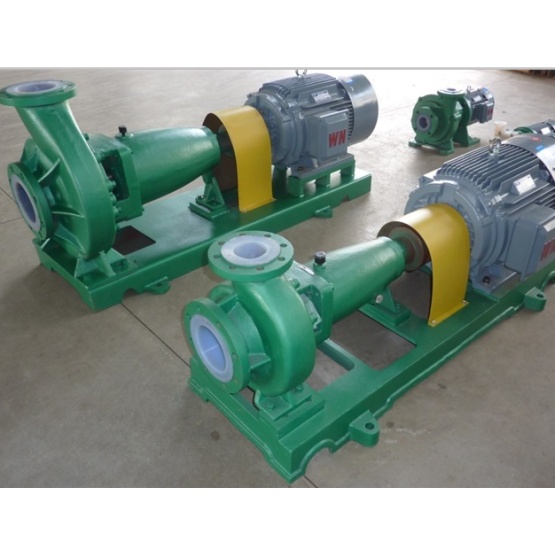

IHF series explosion-proof fluoroplastic lined centrifugal pump

HF type fluoroplastic centrifugal pump overview

The IHF pump is a single-stage single-suction fluoroplastic alloy chemical centrifugal pump. It is designed and manufactured according to international standard design and combined with non-metal pump processing technology. The pump has corrosion resistance, wear resistance, high temperature resistance, no aging, and mechanical strength. High, no toxin decomposition, wide temperature, and medium temperature of -85 °C-200 °C.

IHF type fluorine plastic centrifugal pump product features

IHF series fluoroplastic lining centrifugal pump is designed according to international standards. The pump body is made of metal casing lining polyfluoroethylene propylene (F46); the pump cover, impeller and bushing are all extruded with metal inserts and fluoroplastics. The external type bellows mechanical seal is used; the static ring is 99.9% (aluminum ceramic or silicon nitride); the moving ring is made of PTFE filling material. Its characteristics are superior corrosion resistance and corrosion resistance.

IHF type fluorine plastic centrifugal pump product use

The pump is suitable for conveying any concentration of strong corrosive medium such as sulfuric acid, hydrochloric acid, acetic acid, hydrofluoric acid, nitric acid, aqua regia, strong alkali, strong oxidant, organic solvent, reducing agent, etc. It is the new corrosion resistance in the world. One of the equipment. Its great advantages are advanced and reasonable structure, strong corrosion resistance, tight and reliable sealing performance, stable operation, low noise and long service life.
