SFB SFBX corrosion resistant centrifugal pump
Model No.: BODA-090
Product Name: S Series Double Suction Pump
Packaging: wooden box
Place of Origin: china
Supply Ability: 500
HS Code: 4101201190
SFB, SFBX stainless steel corrosion-resistant centrifugal pump features
The SFB and SFBX series pumps are stainless steel corrosion-resistant centrifugal pumps developed by our company. The impellers of the two-sided three-knife series pumps are in the form of a semi-open structure, while others are in the form of a closed structure. In addition, the connection between the pump and the motor is Straight contact and bearing bracket type, all pump shaft seals are currently mechanical seals with advanced cantilever technology of West Germany, because our products integrate excellent structure, performance, shape and over-flow parts And the connecting frame is made of high quality stainless steel material, so the two series of products have reliable corrosion resistance and make
A series of advantages such as convenient use, maintenance, compact structure, low energy consumption and good sealing performance.
1. Overcurrent parts and connecting frame: 1Cr18Ni9Ti stainless steel
2, mechanical seal: static ring: ceramic (SiC). The moving ring graphite is impregnated with furan resin.
3, rubber structural parts: fluorine rubber.
4. If the conveying medium or the use condition does not match the pump configuration material, other materials may be negotiable.
Such as: over-current parts with 316, shaft seal can be equipped with PTFE. Or other kinds of static and dynamic rings.
SFB, SFBX stainless steel corrosion-resistant centrifugal pump main use
SFB and SFBX series pumps can be transported at temperatures not higher than 90 ° C (direct connection) or not higher than 105 ° C (with bearing bracket type), with or without) fine soft particles or fiber, corrosive or Hygienic requirements, SFBX series pumps also have self-priming performance, two series of pumps are widely used in food, beverage, medicine, sewage treatment, chemical, electroplating, bleaching, fine chemicals and other industries.

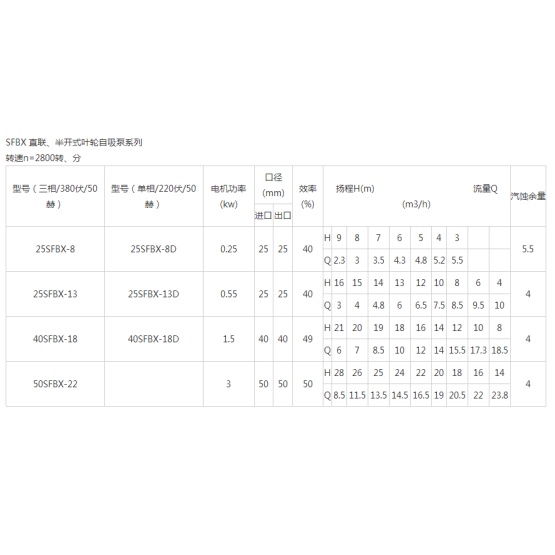

SFB direct-coupled, semi-open impeller pump series speed n=2800 rpm
