Basic Info

Model No.: BODA-078

Product Name: S Series Double Suction Pump

Additional Info

Packaging: wooden box

Productivity: 500

Brand: BODA

Transportation: Ocean,Land,Air

Place of Origin: china

Supply Ability: 500

Certificate: ISO9901

HS Code: 4101201190

Port: Tianjin,Qingdao,Shanghai

Product Description

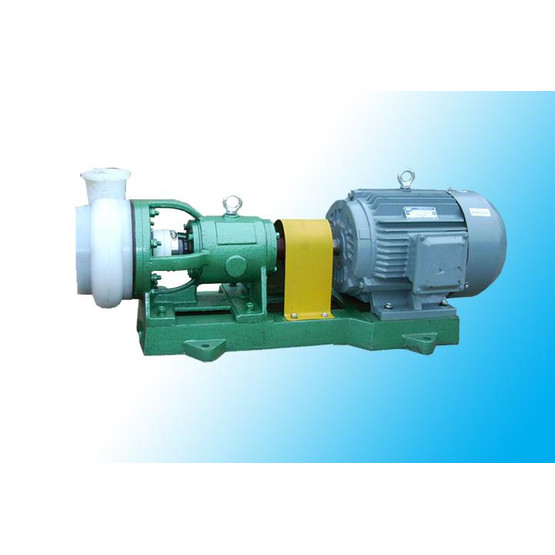

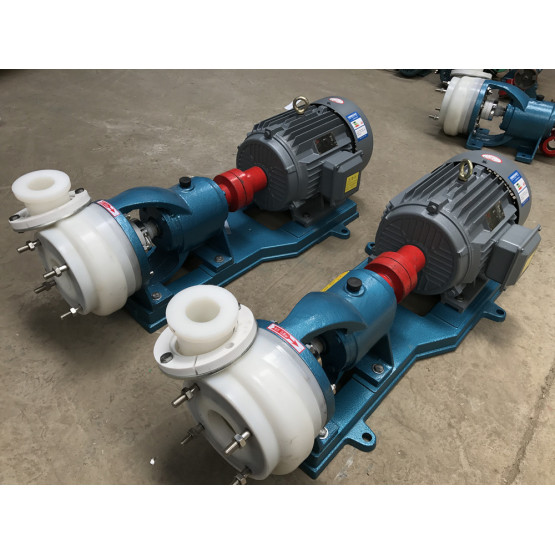

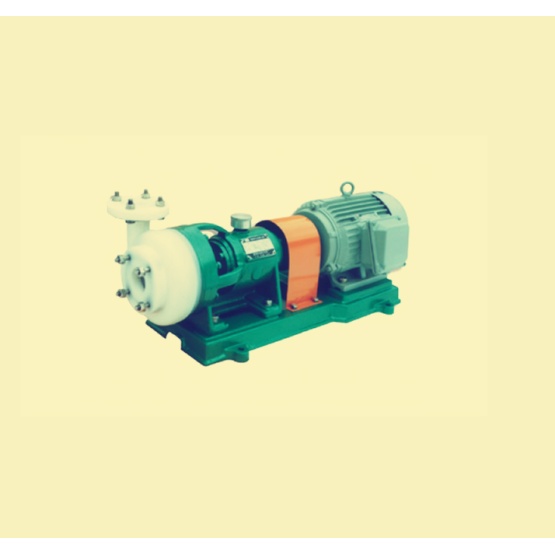

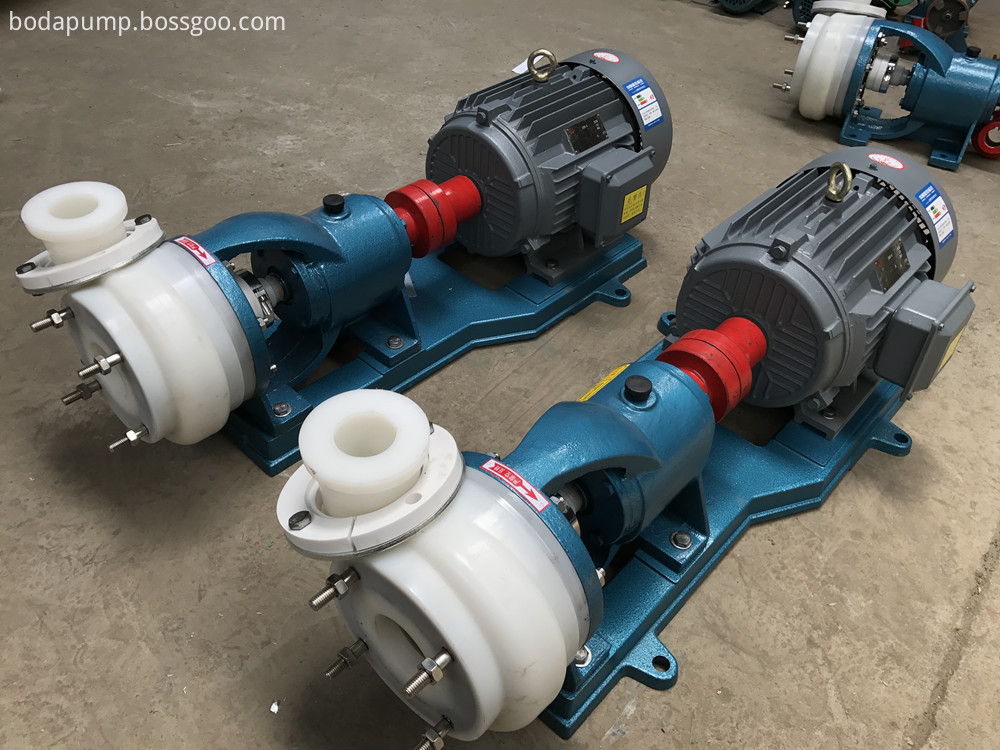

FSB type corrosion resistant fluoroplastic centrifugal pump overview

      FSB type fluoroplastic alloy centrifugal pump is designed according to international standards. The pump body is made of metal shell lining polyfluoroethylene propylene (F46). The pump cover, impeller and bushing are all extruded with metal inserts and fluoroplastics. It adopts externally mounted bellows mechanical seal. The static ring is made of 99% alumina ceramic or silicon nitride. The moving ring is made of PTFE filling material. It is resistant to corrosion and wear and is suitable for conveying any concentration of sulfuric acid, hydrochloric acid, acetic acid and hydrofluoric acid. A highly corrosive medium with harsh conditions such as nitric acid, aqua regia, strong alkali, strong oxidant, organic solvent and reducing agent is one of the strong corrosion-resistant equipments in the world.

      The products are all designed and optimized by computer. The company has strong technical force, rich production experience and perfect testing methods to ensure the stability and reliability of product quality.

FSB type corrosion-resistant fluoroplastic centrifugal pump model meaning

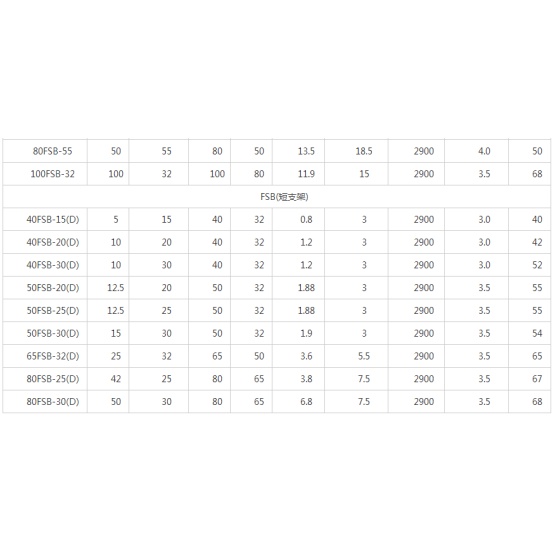

 FSB type corrosion-resistant fluoroplastic centrifugal pump technical parameters

Flow rate: 3.6 ~ 100m3 / h;

Head: 15 ~ 55m;

Speed: 2900r/min;

Power: 1.5 ~ 18.5KW;

Import diameter: 25 ~ 100mm;

Applicable temperature: -20 ° C ~ 120 ° C.

FSB type corrosion-resistant fluoroplastic centrifugal pump design features

The FSB and FSB-D fluoroplastic alloy centrifugal pump over-flow parts are all made of fluoroplastic alloy. The structure is compact, easy to operate and low in price. The two types of pump casings, impellers and machine seals can be used interchangeably. Welcome.

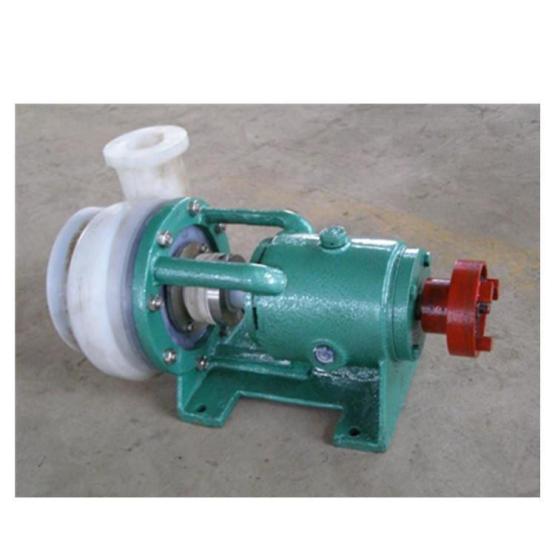

FSB type corrosion resistant fluoroplastic centrifugal pump mechanical seal

      FSB and FSB-D fluoroplastic alloy centrifugal pump adopts the current advanced external PTFE bellows mechanical seal, which is characterized by the ability to compensate the radial runout of the pump shaft, single-end seal externally mounted, easy to load and unload, intuitive working state, resistant Corrosion wear-resistant sealing performance, multi-layer protection, extending the service life of the machine seal; for conveying corrosive media containing impurity particles, it can be equipped with a single-face hard-hard (silicon carbide-silicon carbide) mechanical seal without cooling water. Strong corrosive medium such as strong alkali and hydrofluoric acid is used with pressureless sintered silicon carbide seal; the user needs to consider the solid content in the medium and the special corrosiveness of the medium.
