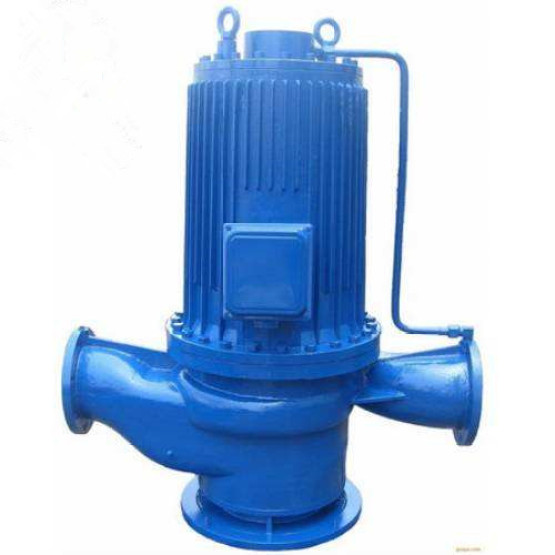

LHP vertical shield pump
Model No.: BODA-092
Product Name: S Series Double Suction Pump
Packaging: wooden box
Place of Origin: china
Supply Ability: 500
HS Code: 4101201190
1. Adopting a new low-speed shielded motor design and manufacturing advanced technology, applied in the field of liquid power, and launched a series of new products to meet the requirements of modern environmental protection. The basic performance parameters of the vertical shielded pump series comply with ISO2858 international standard and JB/T6878.1-93 national standard. This product has advanced design, reasonable structure, stable performance, low noise and low temperature rise. It is the existing conventional horizontal type. An ideal replacement for centrifugal pumps and vertical line pumps. The performance range of this series of products: flow rate 3.8∽1440m3/h, head 5∽8m, with motor power 0.55∽132KW, speed 1450r/min and 2900r/min. Product Features 1. The new low-speed shielding motor and medium self-circulation system ensure low noise, low vibration and low temperature rise.
2. The pump body adopts the pipeline structure. The inlet and outlet are the standard flange sizes with the same caliber and are on the same center line. They can be installed at any position on the pipeline like the valve. It is convenient, fast and stable, and meets different pipelines. Arrangement requirements.
3, electromechanical coaxial, the use of fully enclosed, no shaft seal (only static seal without dynamic seal) of the unique structure, to prevent the leakage of liquid, to ensure the transport of the medium without pollution to the environment.
4. The sliding bearing is used to replace the rolling bearing used in the conventional motor, no maintenance is required, the pump runs smoothly, and the vibration noise is extremely low.
5, installation and maintenance is convenient, no need to dismantle the pipeline system, as long as the pump body connection bolt mother can be removed to take all the rotor parts for inspection and maintenance.
6. The unique installation structure greatly reduces the footprint of the pump and saves the basic construction.
7. The user can install and run the pump in series and parallel according to the actual use requirements.
1. The vertical type of general-purpose shielding pump is suitable for conveying clear water and fluid medium with physical and chemical properties similar to clean water. The medium temperature does not exceed 95 °C, and it is also suitable for ultra-low temperature fluid. Applicable to industrial and urban water supply and drainage, high-rise building pressurized water, garden spray, fire boost, long-distance fluid transport, HVAC cycle, bathroom and other cold and warm water cycle pressurization and equipment. It is especially suitable for occasions with high requirements for vibration and noise, such as underground pump rooms and air conditioning refrigeration systems.
2, vertical shield pump hot water type is mainly used for conveying water temperature not exceeding 160 ° C, soft water without solid particles, suitable for energy, metallurgy, chemical, textile, paper and sprinkling, hotels, restaurants, bathrooms, boiler heat Water pressurized circulation and urban heating systems.
3, the vertical material of the conversion material is anti-corrosion type for the non-solid particles, corrosive, liquid similar to water, suitable for petroleum, chemical, metallurgy, electric power, paper, food, pharmaceutical, synthetic fiber and atomic energy industries. .

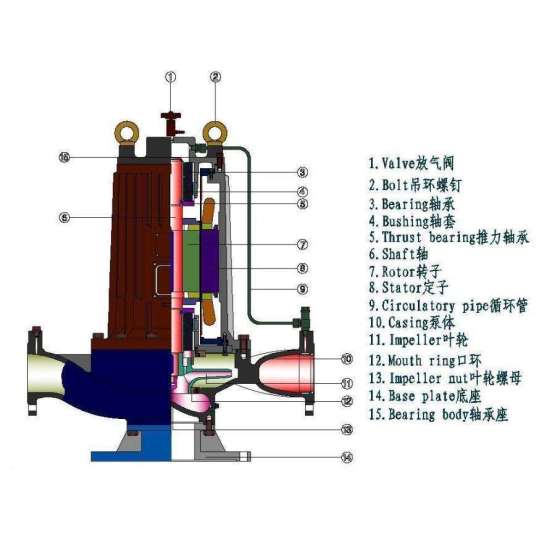

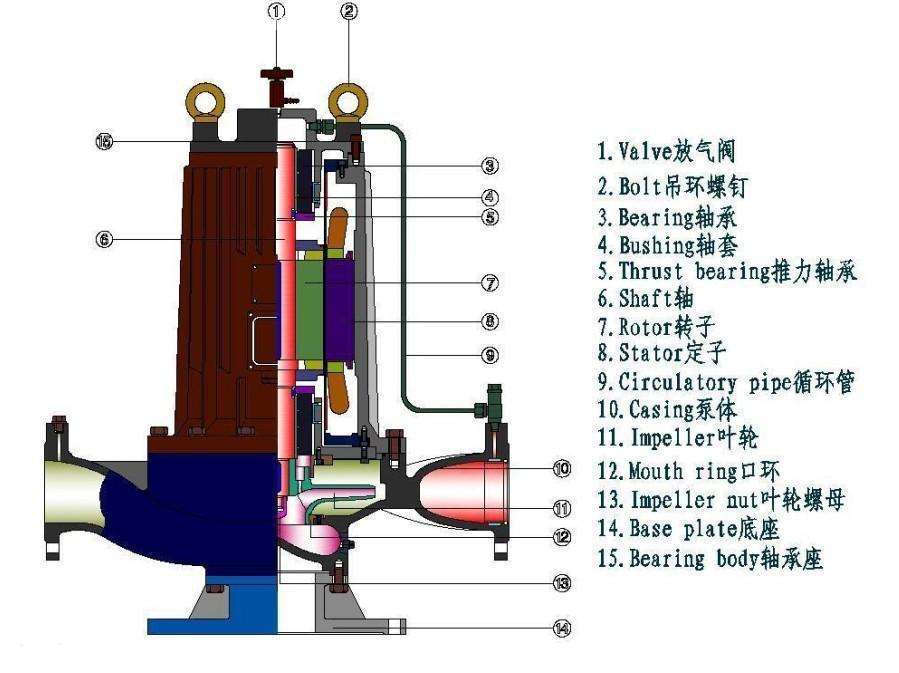

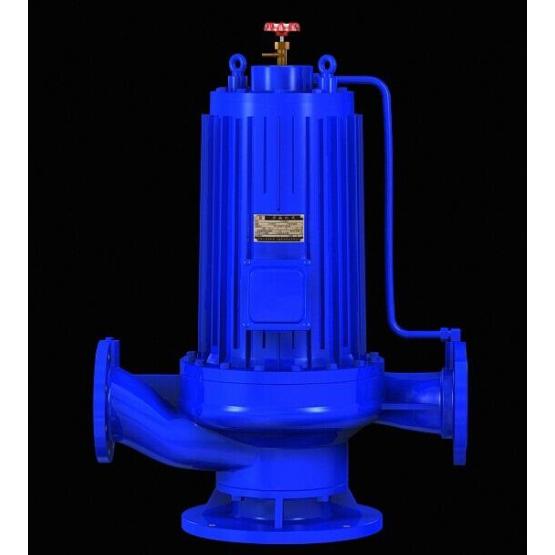

The unit is an electromechanical integrated structure. The pump and the motor are mounted on the same shaft. They are composed of pump body, impeller, pump cover, sliding bearing, stator, rotor, shielding sleeve, motor casing and circulation pipe. The pump is a vertical single-suction single-stage centrifugal pump. The inlet and outlet are on the same horizontal axis. The standard flange specifications are adopted, and the defects can be directly installed. The floor space is small and the maintenance is convenient. The stator and rotor of the motor are shielded by a shielding sleeve, and the fluid medium is used to cool the motor and lubricate the bearing through the circulating tube, which has the characteristics of reasonable design and reliable operation. The pump is equipped with a base, which can be directly installed on the foundation due to its low noise and vibration-free advantages.
