ZS horizontal single stage centrifugal pump

Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm: FOB,CFR,CIF,FCA,CPT
Min. Order: 1 Set/Sets
Delivery Time: 15 Days

Basic Info


Model No.: BODA-095

Product Name: S Series Double Suction Pump


Additional Info


Packaging: wooden box

Productivity: 500

Brand: BODA

Transportation: Ocean,Land,Air

Place of Origin: china

Supply Ability: 500

Certificate: ISO9901

HS Code: 4101201190

Port: Tianjin,Qingdao,Shanghai


Product Description

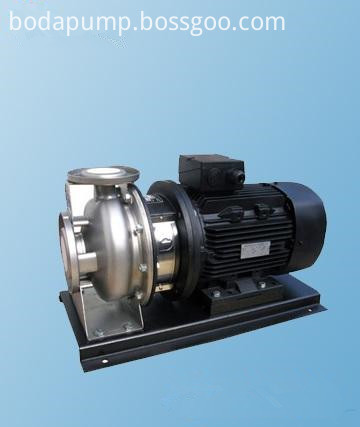

ZS type stainless steel horizontal single stage centrifugal pump 4

ZS stainless steel horizontal single-stage centrifugal pump product overview

     ZS stainless steel horizontal single-stage centrifugal pump is made of advanced technology such as stainless steel plate stamping and expansion welding. It is the first generation of centrifugal pump in China, which can replace traditional IS pump and general corrosion-resistant pump. It has the characteristics of beautiful appearance, light structure, high efficiency, energy saving, durability, light corrosion resistance and low noise.

ZS type stainless steel horizontal single-stage centrifugal pump product application

ZS stainless steel horizontal single-stage centrifugal pump is a versatile product with a wide range of applications. It can transport various media including water or industrial liquid, and is suitable for different temperature, flow and pressure ranges. Typical applications include the following:

Water supply: water plant filtration, transportation and district water supply and supercharged supercharger;

Industrial pressurization: process water system, cleaning system;

Industrial liquid transportation: boiler feed water, condensing system, cooling and air conditioning system, machine tool matching, acid-base transportation;

Water treatment: distillation system or separator, swimming pool, etc.;

Farmland irrigation, petrochemical, medical and health.

ZS type stainless steel horizontal single stage centrifugal pump installation conditions

ZS type stainless steel horizontal single-stage centrifugal pump is a direct coupling type of pump shaft, which consists of pump, pump shaft and standard motor:

1) The pump should be installed in a ventilated and anti-freezing place;

2) The installation of the pump should ensure that the pump is not affected by the tension of the system piping during use;

3) If the pump is installed outdoors, a suitable cover must be provided to prevent the electrical components from entering or condensing;

4) In order to facilitate inspection and maintenance, there should be sufficient space around the unit;

5) The electrical wiring device shall ensure that the pump is not damaged by phase loss, voltage instability, leakage and overload;

6) The pump should be installed horizontally on the base, the horizontal direction is the suction port of the pump, and the vertical direction is the discharge port of the pump.

ZS type stainless steel horizontal single-stage centrifugal pump operating conditions

Clean, thin, non-flammable, explosive, liquid that does not contain solid particles and fibers;

a liquid having a temperature between -20 ° C and +100 ° C;

Ambient temperature +40 ° C;

1000 meters above sea level;

The system has a high pressure of 10 bar.

ZS type stainless steel horizontal single stage centrifugal pump motor

The motor is a fully enclosed, air-cooled two-pole standard motor;

Protection level: IP55;

Insulation class: F;

Standard voltage: 50Hz 1 × 220V 3 × 380V
