YWJ type automatic mixing and submerged pump

Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
Min. Order: 1 Set/Sets
Delivery Time: 15 Days

Basic Info

Model No.: BODA-114

Impeller Number: Single-Stage Pump

Working Pressure: High Pressure Pump

Influent Type of Impeller: Single Suction Pump

Position of Pump Shaft: Horizontal Pump

Pump Casing Combined: Verticaljoint Surface Pump

Mounting Height: Since Irrigation Centrifugal Pumps

Impeller: Open

Usage: Pump

Product Name: S Series Double Suction Pump

Additional Info

Packaging: wooden box

Productivity: 500

Brand: BODA

Transportation: Ocean,Land,Air

Place of Origin: china

Supply Ability: 500

Certificate: ISO9901

HS Code: 4101201190

Port: Tianjin,Qingdao,Shanghai

Product Description

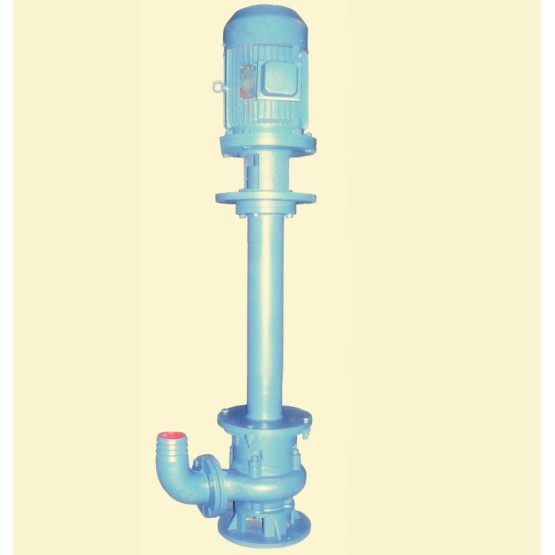

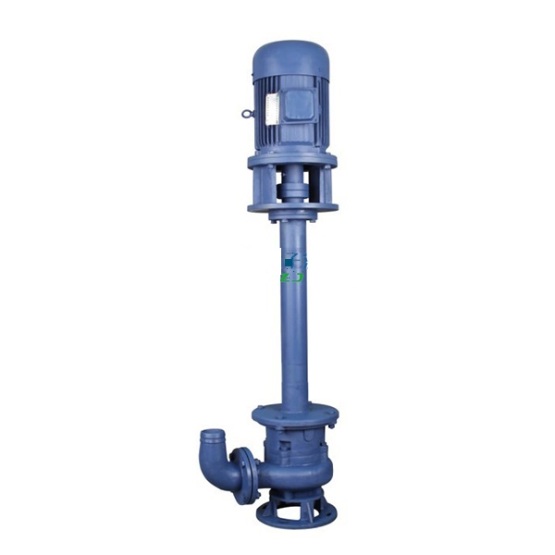

YWJ type automatic mixing and submerged pump 3

YWJ type automatic mixing and submerged pump overview

      YWJ type automatic mixing liquid submerged pump and QGYW type cutting type submerged pump are a new generation of environmentally friendly products developed by our company based on ordinary non-blocking liquid sewage pump. The YWJ automatic mixing and submerged pump adopts an automatic stirring device. The device rotates at high speed with the pump shaft to generate a strong stirring force. The sediment in the sewage pool is stirred into a suspended matter and discharged into the pump to improve the anti-clogging of the pump. And the sewage discharge capacity reduces the sedimentation of the sewage pool, reduces the operating cost of the pump unit, and has obvious advanceability and practicability. QGYW uses fiber chopping to make it smaller and then enter the pump for discharge, which greatly improves the non-blocking performance of the pump and makes the operation of the pump unit safer and more reliable.

YWJ type automatic mixing and sump pump product use

1. Discharge of heavily polluted water from factories and businesses

2. Drainage system of urban sewage treatment plants, hospitals and hotels

3. Sewage drainage station in residential area

4. water supply plant water supply device

5. Municipal engineering, construction sites

6, exploration, mining, power plant supporting machine

7. Rural biogas digesters, farmland irrigation, river pond dredging

Description of structure characteristics of YWJ type automatic mixing and submerged pump

1. Adopt unique double-flow non-blocking impeller structure to improve the over-current capacity and sewage discharge capacity of sewage materials.

2. The automatic stirring device of YWJ starts to stir the submerged pump rotates with the pump shaft at high speed, which produces a strong stirring force. The sediment in the pool is stirred into a suspended solid and then sucked into the impeller to discharge it.

3, YWJ automatically stirs the liquid pump to separate the base into two, so that the mixing and the water do not affect each other.

4. The automatic cutting device of QGYW cutting type submerged pump rotates with the pump shaft at high speed. The sharp cutter made of special material at the inlet of the impeller cuts the large particles or fibers sucked into the impeller and sucks it into the impeller, which enhances the Blockage performance.

5. The pump unit adopts double mechanical seal and is in the oil chamber for a long time to ensure safe and reliable operation of the pump.

6. The hydrodynamic seal of the auxiliary impeller structure not only has the auxiliary sealing function, but also protects the mechanical seal; balances the axial force and prolongs the service life of the bearing.

7. The pump unit is vertical structure, compact in structure, convenient to install, and the pump body is placed in water during operation, which is easy to start. It can be equipped with liquid level automatic control cabinet according to user needs, and automatically control the start of pump unit according to the change of required liquid level. And stop, no need to take care of the person, the use is extremely convenient.

8. The pump unit has two types of structure: single tube and double tube. They are installed in two ways: circular plate and square plate. They can also be produced according to customer requirements.

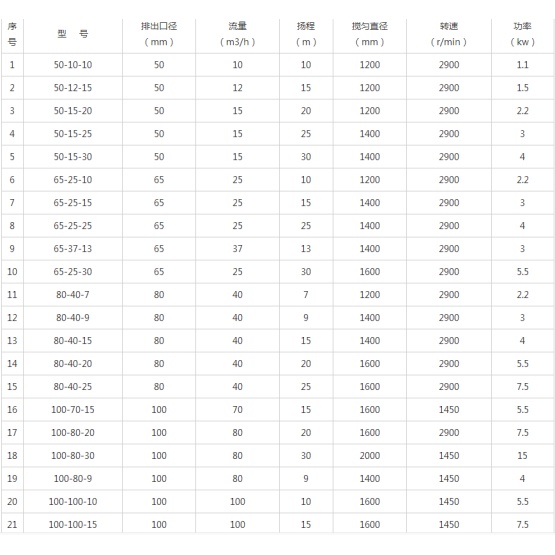

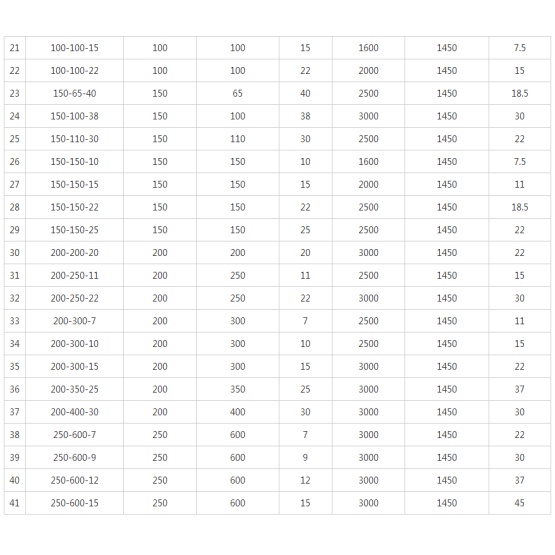

YWJ type automatic mixing and submerged pump working conditions

Flow range: 7-720m3/h

Lift range: 6-40m

Supporting power range: 1.1-45KW

Outlet diameter range: φ40∽φ250mm

Stirring range: φ1200∽φ3000mm

Medium temperature: <60°C

Medium weight: 1∽1.3kg/dm3

PH range: 4∽9

Note: If the user has special media and temperature requirements, please specify when ordering, so that the company can provide more reliable products.
