WQ S type knife shredded submersible sewage pump

Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
Min. Order: 1 Set/Sets
Delivery Time: 15 Days

Basic Info

Model No.: BODA-113

Impeller Number: Single-Stage Pump

Working Pressure: High Pressure Pump

Influent Type of Impeller: Single Suction Pump

Position of Pump Shaft: Horizontal Pump

Pump Casing Combined: Verticaljoint Surface Pump

Mounting Height: Since Irrigation Centrifugal Pumps

Impeller: Open

Usage: Pump

Product Name: S Series Double Suction Pump

Additional Info

Packaging: wooden box

Productivity: 500

Brand: BODA

Transportation: Ocean,Land,Air

Place of Origin: china

Supply Ability: 500

Certificate: ISO9901

HS Code: 4101201190

Port: Tianjin,Qingdao,Shanghai

Product Description

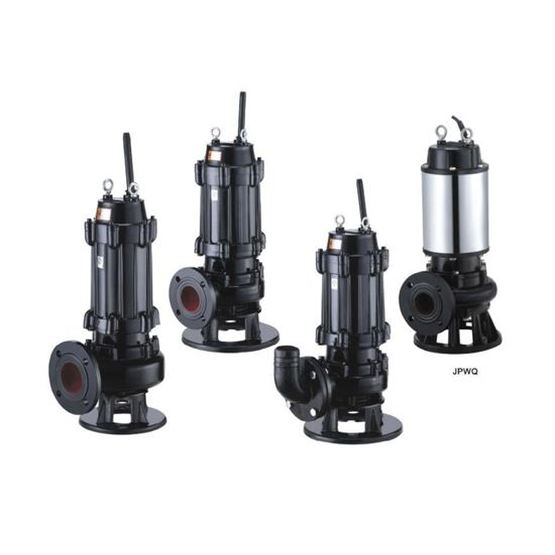

WQ S type knife shredded submersible sewage pump 2

1. S-type double-blade impeller can chop and smoothly discharge sacks, plastic woven bags, canvas gloves, leather gloves, cotton woven gloves, and daily plastic bags, cloth, toilet paper, sanitary napkins, cotton threads. It can completely avoid the pump and pipeline being blocked by the debris in the sewage, and it is not necessary to set up expensive sewage and decontamination devices when using.

2. The impeller and the pump cover are made of rust-resistant material and heat treated. The cutting edge on the impeller and the pump cover has sufficient hardness and rust resistance, so it is extremely resistant to wear and can be sharp for a long time.

3. The size of the impeller runner and the size of the pump runner are well matched, so that the shredded debris can pass smoothly.

4. The unique bearing and mechanical seal arrangement makes the cantilever of the shaft very short, and the rigidity and strength of the shaft is very high. Thus, the vibration of the shaft is small, and the leakage of the mechanical seal is greatly reduced; the shaft can withstand a large Impact load; the bearing is completely in the oil bath of the oil chamber, which can get good lubrication and cooling, even in the heavy load working condition where the pump cuts hard objects from time to time, it still has a long life.

5. The mechanical seal is arranged on the pump side and the motor side to realize the reliable double diving shaft seal protection of the motor. The oil in the oil chamber adequately lubricates and cools the mechanical seal. The mechanical seal area on the pump side has a structure of shredding and driving debris, so that the debris cannot be accumulated or deposited in the mechanical seal cavity, thereby avoiding the normal operation of the mechanical seal.

6. The scraping groove provided between all the overcurrent rotating parts and the fixing member can scrape the thin and tough debris which is squeezed between the overcurrent rotating member and the fixing member, thereby avoiding the pump power increasing or blocking. .

7, can be equipped with dual-rail automatic coupling installation system according to user needs, it brings great convenience to installation and maintenance, people do not have to enter the sump for this purpose.

8. It can be equipped with automatic safety protection control cabinet according to user needs to absolutely protect the pump from water leakage, leakage, overload and over temperature, which improves the safety and reliability of the product.

9. According to the user's needs, the float switch can automatically control the start and stop of the pump according to the required liquid change. It does not need special care and is extremely convenient to use.

Main use of knife-crushing submersible sewage pump

      Suitable for the transportation of liquids containing solid particles, long fibers, and special industries in the pharmaceutical, paper, chemical, coal processing industries, various aquaculture, slaughterhouses, septic tanks, tanning, textiles, hospitals and urban sewage systems. Dirty, sticky and slippery sewage can also be used to pump clean water and weakly corrosive media.

Working conditions

1. The medium temperature does not exceed 60 ° C, the medium density is 1.0-1.3×103 kg/m 3 , and the pH value is in the range of 5-9;

2. The exposed part of the motor should not exceed 1/2;

3. The main parts of this model pump are cast iron, so it cannot be used to pump highly corrosive liquids.

Note: If the user has special requirements (such as high corrosiveness of the medium), it can be submitted at the time of ordering to provide a more reliable material.
