Basic Info

Model No.: BODA-127

Impeller Number: Single-Stage Pump

Working Pressure: High Pressure Pump

Influent Type of Impeller: Single Suction Pump

Position of Pump Shaft: Horizontal Pump

Pump Casing Combined: Verticaljoint Surface Pump

Mounting Height: Since Irrigation Centrifugal Pumps

Impeller: Open

Usage: Pump

Product Name: S Series Double Suction Pump

Additional Info

Packaging: wooden box

Productivity: 500

Brand: BODA

Transportation: Ocean,Land,Air

Place of Origin: china

Supply Ability: 500

Certificate: ISO9901

HS Code: 4101201190

Port: Tianjin,Qingdao,Shanghai

Product Description

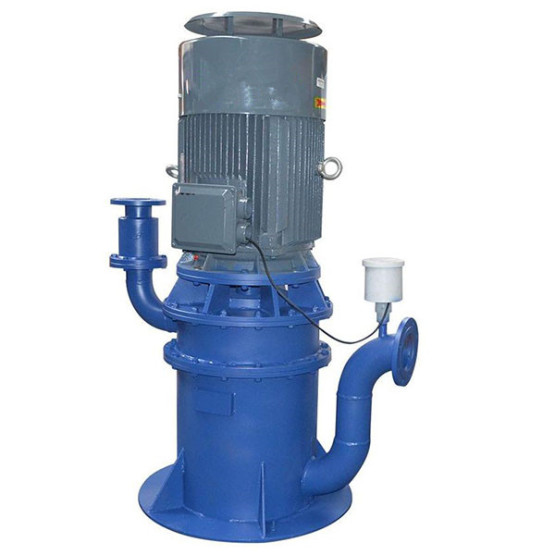

WFB type non-sealing self-control self-priming pump overview

      WFB series non-sealing self-control self-priming pump adopts non-leakage V-type sealing assembly, which eliminates the packing seal, packing seal and mechanical seal of traditional water pump, and completely subdues [run, run, drip and leak", which is a substitute for the original Ideal equipment for long-axis submerged pumps, submersible pumps, and submersible pumps. Disadvantages of the structure pump: First, the shutdown liquid leaks out in the axial direction, which is not suitable for the occasion of frequent starting equipment; Second, the power consumed by the auxiliary impeller is too large, and the pump efficiency is low. The improved structure of WFB has a sealing device, one is to improve the efficiency of the pump, the other is to reduce the power of the motor, and the third is to suppress the leakage phenomenon of the pump. The sealing device does not rub or wear during the movement, and the service life is more than 10 times longer than similar products. The principle of transplanting vacuum pump and self-priming performance are stable and reliable. In particular, the use of [electric air control valve" truly realizes [one-time drainage and self-priming for life". High efficiency, low vibration, low noise, flexible movement, easy disassembly, easy installation, no need to fix the foot, eliminating the need for long-axis submerged pump transportation, installation and maintenance. With superior self-control function, it can be used with high-tech fields and highly automated series.

WFB type non-sealed self-control self-priming pump model meaning



WFB type non-sealed self-control self-priming pump

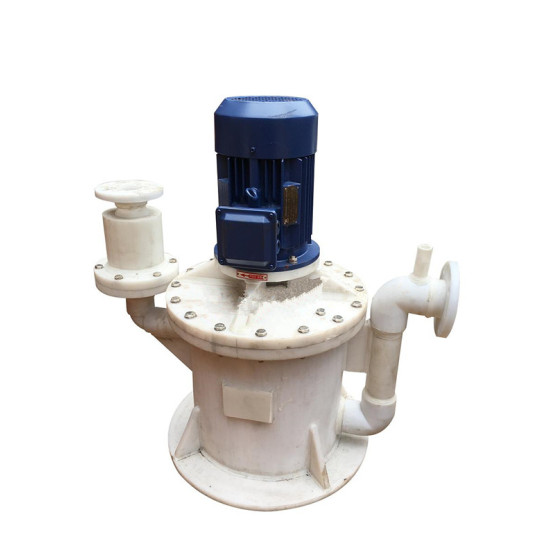

       WFB series non-sealed self-control self-priming pump has many functions such as temperature resistance, pressure resistance, wear resistance, "primary drainage" and "lifetime self-priming". At present, it produces various materials such as PTFE, chlorinated polyether, ultra-high molecular polyethylene, polypropylene, stainless steel, cast steel and pig iron. WFB type non-sealing self-control self-priming pump is widely used in electronics, electric power, chemical, metallurgy, medicine, food, electroplating, environmental protection, fire protection, municipal, water purification, national defense military, textile printing and dyeing, mining and mineral processing industries.

WFB type non-sealing self-control self-priming pump structure description

The non-sealed self-control self-priming pump is divided into five types: 1 type is a rectangular type non-sealed self-control self-priming pump, 2 type is a conical type non-sealing self-control self-priming pump, and 3 is an explosion-proof type non-sealing self-control self-priming pump, 4 Type is outdoor type non-sealing self-control self-priming pump, type 5 is trolley moving type non-sealing self-control self-priming pump without seal self-control self-priming pump flow design from 0.75-6850m3/h, head 5m-132m, liquid suction diameter 16-800 Mm, liquid outlet diameter 10 - 600 mm.
