W type vortex pump stainless steel vortex

Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
Min. Order: 1 Set/Sets
Delivery Time: 15 Days

Basic Info

Model No.: BODA-190

Product Name: S Series Double Suction Pump

Additional Info

Packaging: wooden box

Productivity: 500

Brand: BODA

Transportation: Ocean,Land,Air

Place of Origin: china

Supply Ability: 500

Certificate: ISO9901

HS Code: 4101201190

Port: Tianjin,Qingdao,Shanghai

Product Description

W type vortex pump stainless steel vortex pump horizontal vortex pump 3

Large flow: 14.4m3/h
Small flow rate: 0.7m3/h;
Big lift: 105m
Small lift: 20m;
Supporting high power: 11kW,
Small package: 0.75kW;
The speed is 2900r/min
W-type vortex pump overview

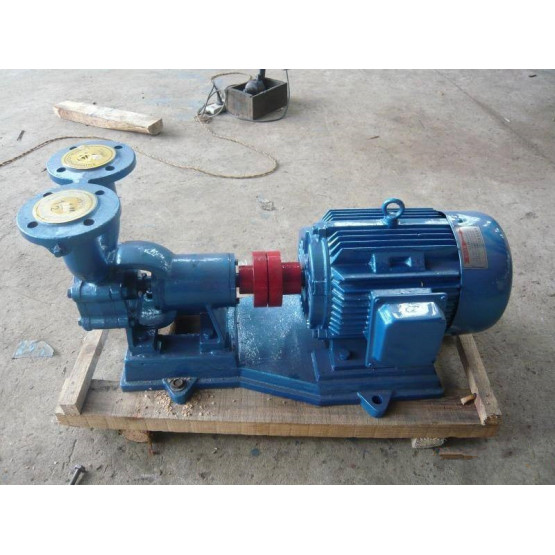

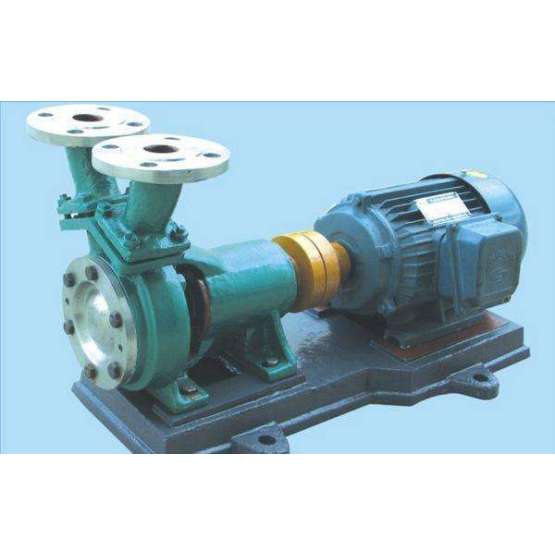

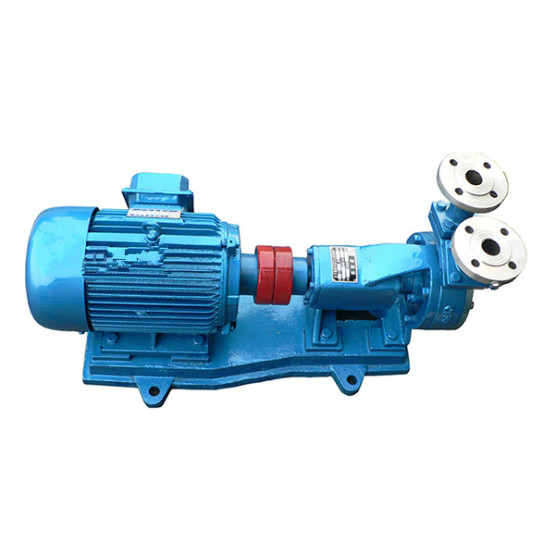

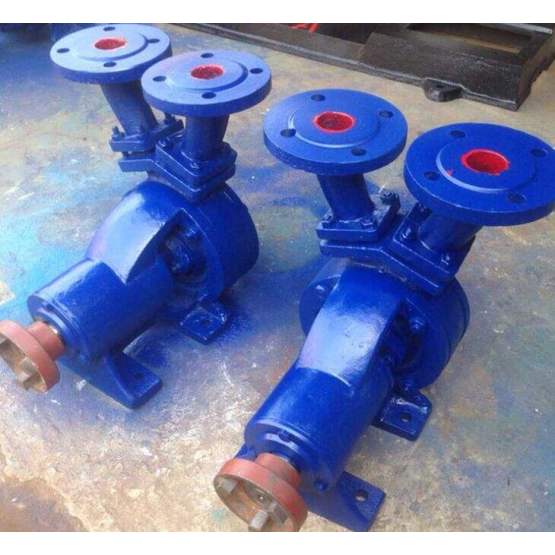

       The W-type vortex pump is a single-stage cantilever vortex pump with the inlet and outlet directions of the pump being vertically upward. The vortex impeller can move freely in the axial direction on the shaft to ensure that the axial gap between the impeller and the pump body and the pump cover are equal on both sides, allowing the paper pad to adjust the gap. The shaft seal form of the pump is divided into two types: a filler and a single-end mechanical seal. The pump and the motor are combined on a common base.
       W-type vortex pump is used to transport liquids with a temperature of -20 ° C ~ +80 ° C viscosity of not more than 5E, non-corrosive, solid particles. The pump has the characteristics of small size, light weight, generous appearance and convenient maintenance. It is suitable for industrial production water of chemical, petroleum, textile, electric power and other factories and mines, boiler feed water, heating water supply, high-rise building, fire protection, heat removal and water circulation. It is widely used in the manufacture of frozen heatstroke prevention and cooling drinks, high-pressure water supply for disinfection of food and beverage utensils in the catering industry. The pump has a large flow rate of 14.4m3/h, a small flow rate of 0.7m3/h, a large lift of 105m and a small lift of 20m. The supporting power is 11kW and 0.75kW, and the speed is 2900r/min.
