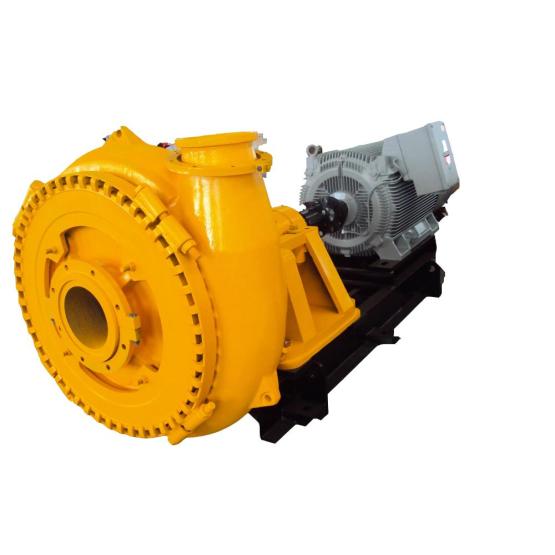

TZG(H) Gravel Sand Slurry Pump

Payment Type: L/C,T/T,Western Union
Incoterm: FOB,CFR,CIF
Min. Order: 1 Set/Sets
Delivery Time: 20 Days

Basic Info


Model No.: TZG(H)

Working Pressure: High Pressure Pump

Position Of Pump Shaft: Horizontal Pump

Impeller: Closed

Material: A05 A07 A49

Origin: Shijiazhuang

Drive Type:: CV, DC, Zv, Cr

Color: As Your Requirement

Package: In Woodenc Case Or As Your Requirement

Power: Electric Or Diesel

Product Name: Martime Application Slurry Pump


Additional Info


Packaging: In Wooden case or as your requirement

Productivity: 300sets/month

Brand: Boda

Transportation: Ocean,Land,Air

Place of Origin: Shijiazhuang

Supply Ability: 300 sets per month

Certificate: ISO

HS Code: 8413709990

Port: SHANGHAI,BEIJING,XINGANG


Product Description

TZG(H) Gravel Sand Slurry Pump / Gravel Sand / Slurry Pump /Sand Gravel Dredging Pump / TZG(H)

Martime Application Slurry Pump Product Description:

Construction of this pump is of single casing connected by means of clamp bands and wide wet passage. The wet parts are made of Ni-hard and high chromium abrasion-resistance alloys. The discharge direction of pump can be oriented in any direction of 360 degree. This type of pump possesses the advantages of easy installation and operation, good performance of NPSH and abrasion-resistance.



Type TZG(H) gravel pumps are designed for continuous handling the most difficult higher abrasive slurries which contain too big solids to be pumped by common pump. They are suitable for delivering slurries in Mining, Explosive sludge in metal melting. Dredging in dredger and course of rivers, and other fields. Type TZH pumps are of high head ones.


Features:

Type TZG(H) pump is designed for continuously handling the most difficult higher abrasive slurries which contain too big solids to be pumped by a common pump. They are suitable for delivering slurries in tunnel shield and pipe-jacking.


Product Features:

-Wide Passage

-Single casing

- Discharge direction can be oriented at any degrees



Martime Application Slurry Pump Structure:

gravel pump structure

gravel pump parts description

Gravel Slurry Pump Performance Table:

Type

Capacity

(l/s)

Head

(m)

Speed

(r/min)

Efficiency

(%)

NPSHr

(m)

Inlet Size

(mm)

Outlet Size

(mm)

Max.Diameter of flowed particle (mm)

100TZG-PD

10-70

3.5-51

600-1400

30-50

2.5-3.5

150

100

82

150TZG-PE

38-160

10-48

800-1400

50-60

3-4.5

200

150

127

200TZG-PS

60-272

13-50

500-1000

45-65

3-7.5

250

200

178

200TZGH-PS

100-360

28-80

500-950

60-72

2-5

250

200

180

250TZG-PF

100-420

11-58

400-850

50-70

2-4.5

300

250

220

250TZGH-PG

170-620

28-78

350-700

60-73

2-8

300

250

210

300TZG-PG

140-880

6-66

300-700

60-68

2-8

350

300

241

400TZG-PT

240-1060

9-48

250-500

60-72

3-6

450

400

254

Dimensionally Interchangeable with:

      TZG(H) ≈Warman®G(H)

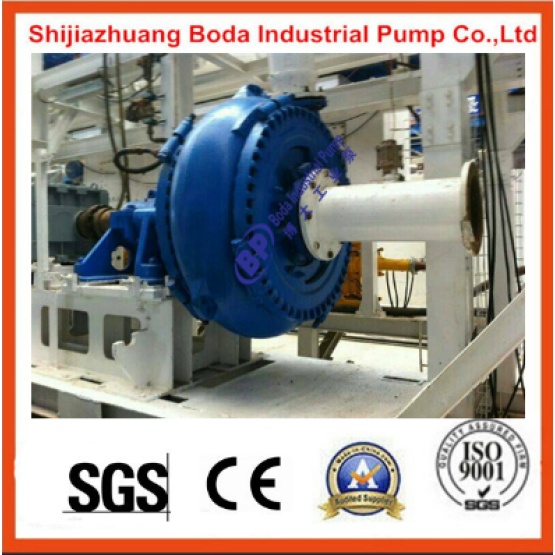

Application:

gravel pump application

dredge pump application

gravel slurry pump application



gravel slurry pump
