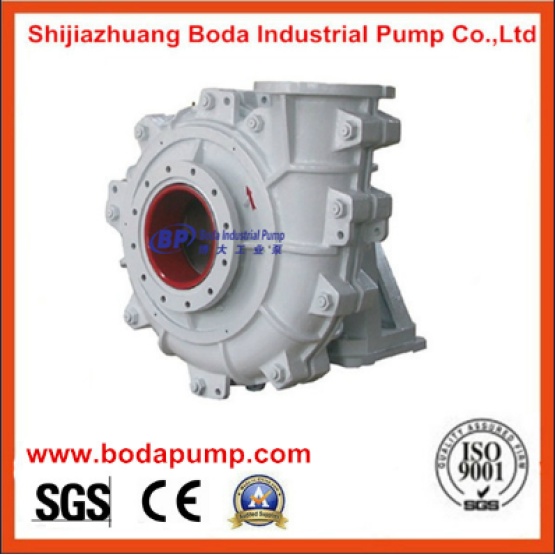

High Temperature Slurry Pump

Payment Type: L/C,T/T,Western Union
Incoterm: FOB,CFR,CIF
Min. Order: 1 Set/Sets
Delivery Time: 20 Days

Basic Info


Model No.: BH BHH BL BM

Working Pressure: High Pressure Pump

Position Of Pump Shaft: Horizontal Pump

Impeller: Closed

Material: A05 A07 A49

Origin: Shijiazhuang

Drive Type:: CV, DC, Zv, Cr

Color: As Your Requirement

Package: In Woodenc Case Or As Your Requirement

Power: Electric Or Diesel

Product Name: Martime Application Slurry Pump


Additional Info


Packaging: In Wooden case or as your requirement

Productivity: 300sets/month

Brand: Boda

Transportation: Ocean,Land,Air

Place of Origin: Shijiazhuang

Supply Ability: 300 sets per month

Certificate: ISO

HS Code: 8413709990


Product Description

High Temperature Slurry Pump Application and Features:
Type BM, BH, High Temperature Slurry Pump pumps are cantilevered, horizontal, centrifugal slurry pumps. They are designed for the handling highly abrasive, high density slurries in the metallurgical, mining, coal, power, building material and other industrial departments etc. The pumps of this type also may be installed in multistage series.
The frame plates for the type BM, BH pumps have replaceable wear-resistant metal liners or rubber liners. The impellers are made of wear-resistant metal or rubber.
The shaft seals for type BM, BH, pumps may be adoptable of gland seal or expeller seal. The discharge branch can be positioned at intervals of 45 degrees by request and oriented to any eight positions to suit installations and applications.

Low maintenance slurry pumps for mining
BM BH Series High Temperature Slurry Pump
Name: BM BH High Temperature Slurry Pump
Pump Type: BM  BH
Power: Motor/Diesel
Discharge Size: 1-18 inch
Capacity: 0~1000(l/s)
Head: 0~70m

Brief Introcustion to High Temperature Slurry Pump Type Selection:
Refering to the performance curves of the pump the selected capacity range
Should be as follows:
Pump Type BM, BH: 40-80% for higher density, strong abrasive slurries
40-80% for medium density, medium abrasive slurries
40-120% for lower density, lower abrasive slurries

Type Allowable Mating Max.Power (kw)                            Clear Water Performance             Impeller
Capacity  Q Head H
(m)
Speed n
(r/min)
Max EFF η(%) NPSH)
(m)
No of Vanes Impel Dia(mm)
(m 3 /h) (L/S)
1.5/1B_BH 15 12.6-28.8 3.5-8 6-68 1200-3800 40 2-4 5 152
2/1.5B_BH 15 32.4-72 9-20 6-58 1200-3200 45 3.5-8 5 184
3/2C_BH 30 39.6-86.4 11-24 12-64 1300-2700 55 4-6 5 214
4/3C_BH 30 86.4-198 24-55 9-52 1000-2200 71 4-6 5 245
4/3D_BH 60
6/4D-BH 60 162-360 45-100 12-56 800-1550 65 5-8 5 365
6/4E-BH 120
6/4D-BH 60 180-396 50-110 7-61 600-1600 55 3-8 4 372
6/4E-BH 120
8/6E-BH 120 360-828 100-230 10-61 500-1140 72 2-9 5 510
8/6R-BH 300
8/6E-BH 120 360-828 100-230 7-52 400-1000 70 2.5-6 4 536
8/6R-BH 300 360-828 100-230 7-52 400-1000 70 2.5-6 4 536
10/8ST-BH 560 612-1368 170-380 11-61 400-850 71 4-10 5 686
12/10ST-BH 560 936-1980 260-550 7-68 300-800 82 6 5 762
14/12ST-BH 560 1260-2772 350-770 13-63 300-600 77 3-10 5 965
16/14ST-BH 560 1368-3060 380-850 11-63 250-550 79 4-10 5 1067
16/14TU-BH 1200
10/8E-BM 120 540-1440 150-400 14-60 600-1100 73 4-10 5 549
