Sic Ceramic Light Duty Slurry Pump

Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm: FOB,CFR,CIF,FCA,CPT
Min. Order: 1 Set/Sets
Delivery Time: 15 Days

Basic Info


Model No.: BODA-0002

Impeller Number: Single-Stage Pump

Working Pressure: High Pressure Pump

Influent Type of Impeller: Single Suction Pump

Position of Pump Shaft: Horizontal Pump

Pump Casing Combined: Verticaljoint Surface Pump

Mounting Height: Since Irrigation Centrifugal Pumps

Impeller: Open

Usage: Pump

Product Name: S Series Double Suction Pump


Additional Info


Packaging: wooden box

Productivity: 500

Brand: BODA

Transportation: Ocean,Land,Air

Place of Origin: china

Supply Ability: 500

Certificate: ISO9901

HS Code: 4101201190

Port: Tianjin,Qingdao,Shanghai


Product Description

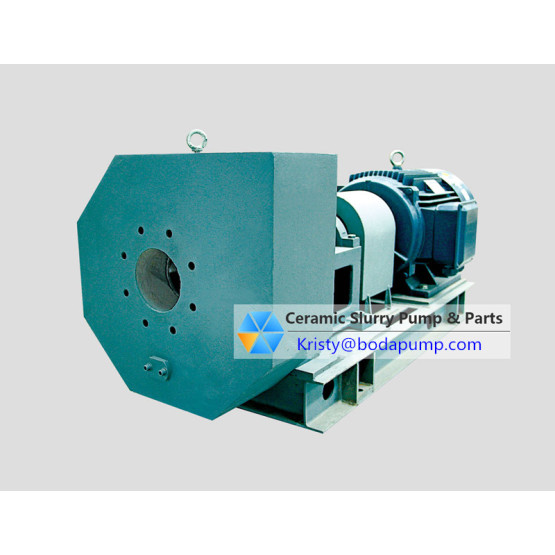

Ceramic slurry pump

Ceramic pump introduction

HAH-perfromance-curve

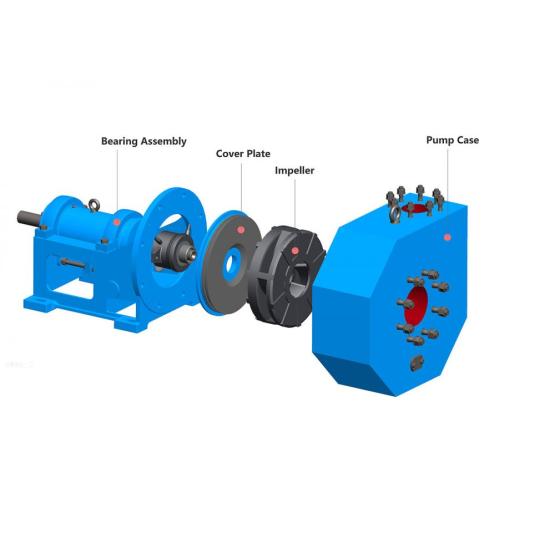

Heavy slurry pump explosion diagram-EN

SiC Ceramic Heavy Duty Slurry Pump:
Considering important issues, including wear life, component arrangement, material composition and slurry abrasiveness, we developed SiC ceramic material for slurry pump. In regards of resistance, metals alloy have only corrosion and no abrasion, or have only abrasion and no corrosion in reverse. BODA ceramic meterial slurry pump covers both corrosion and abrasion perfectly.It has a longer service life but not such expansive as metal pump in total.
BODA ceramic slurry pump are widely used for convey media with large grain particles and the media is also corrosive. In fact, if you find that your slurry pumps are always broken after working for a short time, than you can chose our slurry pump. Begin with producing of silicon carbide (SiC) material and SiC-Si3N4 parts for many industries, BODA started to manufacture advanced slurry pump & parts at the beginning of Twentieth Centuery.

Ceramic Slurry Pump Features:

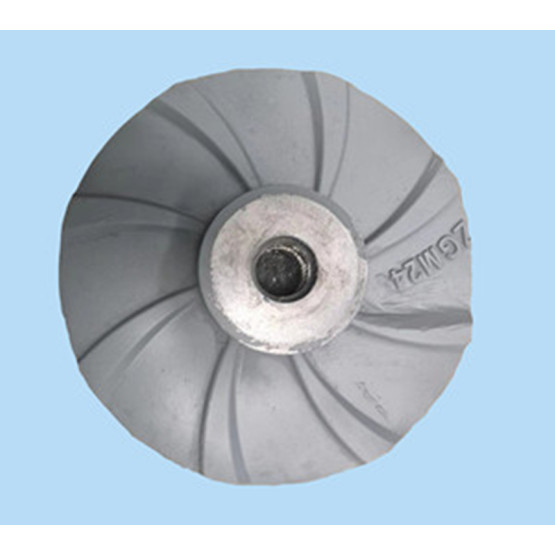

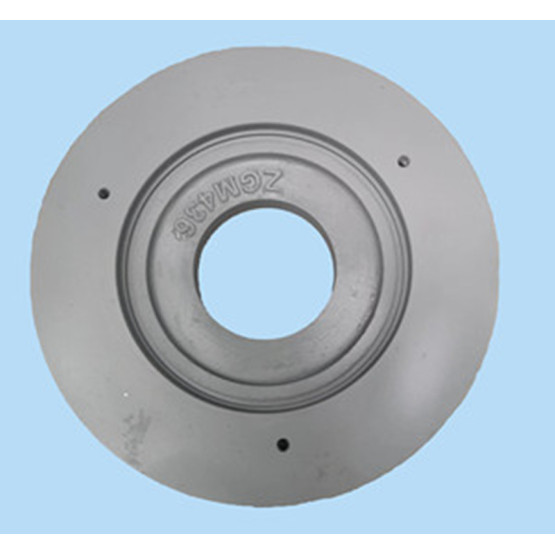

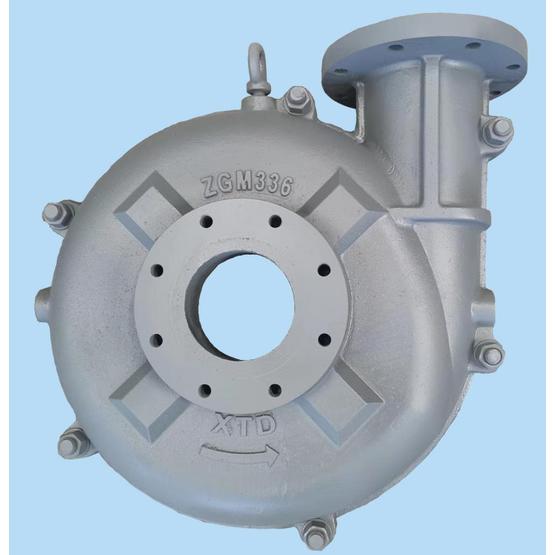

Thanks to the high temperature sintering process, we can munufacturing wet parts(impeller, throat bush, volute, back cover) by silicon carbide ceramic. These wet parts features many excellent performance as follows:
- Abrasion resistant
- Corrosion resistant
- Stand temperature up to 120 °C
- shockproof, anti impact
- compative price
Comparing with alloy slurry pump, the sic ceramic slurry pump, is always at a lower cost. Firstly, it gives the slurry pump a longer maintainance period. And sicilcon carbide is much cheaper than metal(A05, A49, Cr26, Duplex Stainless Steel-) .The SiC Ceramic slurry pump usually services for a time of 3-6 times longer than allloy slurry pump under same working condition.

Overview

By researching advanced ceramic, HONGYUAN developed this new kind of light duty slurry pump. It is mostly used for phosphorus chemical industry, Flow gas desulphurization for steel mill, and other kind of corrosion media with small size particles.


Feathures

Structure Single flow passage centrifugal pump
Material of wet-end components Silicon carbide(SiC) Ceramic
Stage Single
Standard DIN24256,higher than DIN24256
Efficiency A standard of slurry pump
Density of SiC ceramic impeller is much smaller than metal, so the shaft rotates smoothly.
There are different kinds of sealing. Gland seal, Mechanical seal, Expeller seal and so on can be chosen depending on different working condition.


Application

SiC ceramic light duty slurry pump is a revolutionary product in pump industry, which can be used to convey many kinds of acid, alkali corrosion slurry, and other kinds of special industry.

Flow Q 5 ~ 1300 m3/h
Head 5 ~ 170 m
Outlet Diameter 50 ~ 250m
PH Value 2.5 ~ 13
Cl- Concentration ≤60000ppm
Weight Concentration Cw ≤60%
Media Temperature ≤120°C
Density of SiC ceramic impeller is much smaller than metal, so the shaft rotates smoothly.
There are different kinds of sealing. Gland seal, Mechanical seal, Expeller seal and so on can be chosen depending on different working condition.

slurry pump parts
