Double Suction Diesel Dewatering Water Pump

Payment Type: L/C,T/T,Western Union
Incoterm: FOB,CFR,CIF
Min. Order: 1 Set/Sets
Delivery Time: 20 Days

Basic Info


Model No.: XS

OEM:: Yes

Position Of Pump Shaft: Horizontal Pump

Origin: Shijiazhuang

Color: As Your Requirement

Power: Electric Or Diesel

Theory:: Centrifugal Pump

Material: Cast Iron, Stainless Steel, Etc

Structure:: Double Suction Water Pump

Application:: Transfer Water

Model No.: XS


Additional Info


Packaging: In Wooden case or as your requirement

Productivity: 300sets/month

Brand: Boda

Transportation: Ocean,Land,Air

Place of Origin: Shijiazhuang

Certificate: ISO


Product Description

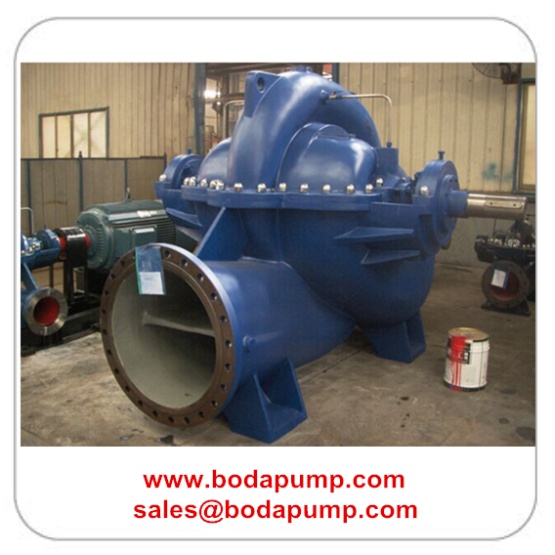

Centrifugal Split Case Water Pump
Type XS Centrifugal Split Case Water Pump
are new type of single stage double suction centrifugal split pumps with high performance. They are widely used in delivering liquids to the water plant, circulation water system of air-conditioner pipe net system of supplying heated water, construction, drainage pumping station, power-station, industrial water supply system ship industry, mine and etc.


Performance range

Pump outlet diameter 80~800mm
Capacity Q:22~11600m3/h
Head H:7~200m
Temperature

T:-20°c~105°c ( Type XS)

   -60°c~200°c (Type XS-R)

Solid parameter ≤80mg/L
Permissible pressure

≤2.5MPa ( Type XS)

≤4MPa  (Type XS-R)


Description of pump type

For example   XS250-450A-L-R(M.F)-J

XS--Advanced type split centrifugal pump

250--Pump outlet diameter(mm)

450--impeller diameter(mm)

A--Impeller has been cut first

L--Vertical mount

R--Heating water  M--Anti-friction    F--Anti-corrosive

J--Using mechanical seal



The material of main parts of the pump



Part name



Material



GB code



Pump casing

Grey cast iron

Ductile cast iron

Cast steel

HT250

QT400-18

ZG230-450



Impeller

Bronze

Grey cast iron

Silicon brass

Stainless steel

ZCuSn10Pb1

HT250

ZCuZn6Si4

ZG0Cr18Ni12Mo2Ti



Shaft

Stainless steel

Carbon steel

2Cr12

45



Sealing ring

Bronze

Grey cast iron

Silicon brass

Stainless steel

ZCuSn10Pb1

HT250

ZCuZn6Si4

ZG0Cr18Ni12Mo2Ti



water pump
