ISW series horizontal centrifugal pump | horizontal clean water pump

Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
Min. Order: 1 Set/Sets
Delivery Time: 15 Days

Basic Info

Model No.: BODA-076

Product Name: S Series Double Suction Pump

Additional Info

Packaging: wooden box

Productivity: 500

Brand: BODA

Transportation: Ocean,Land,Air

Place of Origin: china

Supply Ability: 500

Certificate: ISO9901

HS Code: 4101201190

Port: Tianjin,Qingdao,Shanghai

Product Description

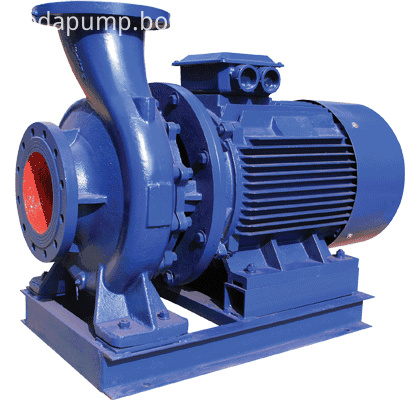

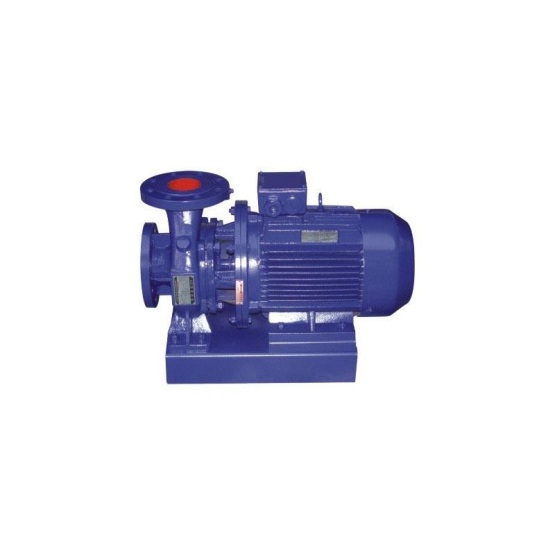

ISW series horizontal centrifugal pump  horizontal clean water pump 1

ISW horizontal pipeline centrifugal pump product features

1. Smooth operation: the absolute concentricity of the pump shaft is excellent in dynamic and static balance, ensuring smooth operation and no vibration.

2, dripping water does not leak: different materials of hard alloy sealing, to ensure that no leakage of different media delivery.

3, low noise: the pump under two low-noise bearings, running smoothly, except for the weak sound of the motor, basically no noise.

4. Low failure rate: The structure is simple and reasonable, the key part adopts the international first-class quality matching, and the trouble-free working time of the whole machine is greatly improved.

5, convenient maintenance: replacement of seals, bearings, simple and convenient.

6, the land is more provincial: the exit can be left, right, up three directions, easy to install and save the pipeline, saving space.

Main use of ISW horizontal pipeline centrifugal pump

1. ISW type pipeline centrifugal pump is used for conveying clean water and other liquids with physical and chemical properties similar to clean water. It is suitable for industrial and urban water supply and drainage, high-rise building pressurized water supply, garden irrigation, fire boosting and equipment matching, use temperature. T: ≤ 80 ° C.

2, ISWR (WRG) type hot water (high temperature) circulation pump is widely used in energy, metallurgy, chemical, textile, paper, and hotels and other high temperature hot water pressurized circulation pump and urban heating system circulation pump, ISWR use temperature T: ≤ 120 ° C, WRG use temperature T: ≤ 240 ° C.

3. ISWH horizontal chemical pump for transporting liquids without solid particles, corrosive and viscosity similar to water, suitable for petroleum, chemical, metallurgy, electric power, paper, food, pharmaceutical and synthetic fiber sectors, temperature T: -20 ° C - 120 ° C.

4, ISWB horizontal oil pump for the delivery of gasoline, diesel, kerosene and other petroleum products, the use temperature T: -20 ° C -120 ° C.

ISW type horizontal pipeline centrifugal pump use conditions:

1. Suction pressure ≤1.0Mpa, or pump system high working pressure ≤1.6Mpa, ie pump suction pressure + pump head ≤ 1.6Mpa, pump static pressure test pressure is 2.5Mpa, please indicate system working pressure when ordering. When the working pressure of the pump system is greater than 1.6Mpa, it should be separately submitted at the time of ordering. In order to manufacture, the overcurrent components and the coupling portion of the pump are made of cast steel.

2. Ambient temperature <40 ° C, relative humidity <95%.

3. The volume of solid particles in the medium to be transported does not exceed 0.1% of the unit volume, and the particle size is <0.2 mm.

Note: If the medium is used with fine particles, please specify when ordering so that a wear-resistant mechanical seal is used.
