ISG type explosion-proof vertical pipeline pump

Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm: FOB,CFR,CIF,FCA,CPT
Min. Order: 1 Set/Sets
Delivery Time: 15 Days

Basic Info


Model No.: BODA-192

Product Name: S Series Double Suction Pump


Additional Info


Packaging: wooden box

Productivity: 500

Brand: BODA

Transportation: Ocean,Land,Air

Place of Origin: china

Supply Ability: 500

Certificate: ISO9901

HS Code: 4101201190

Port: Tianjin,Qingdao,Shanghai


Product Description

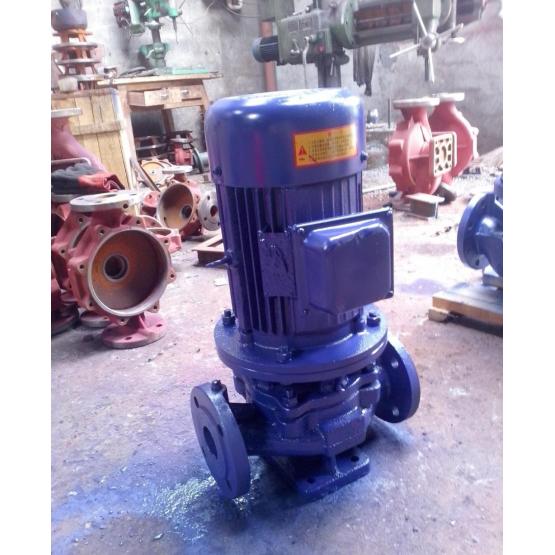

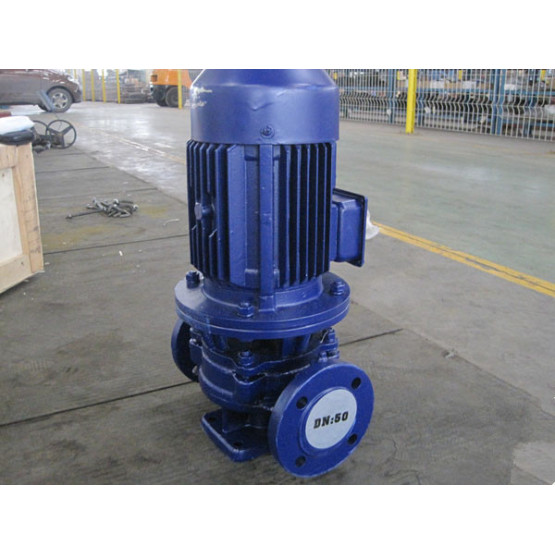

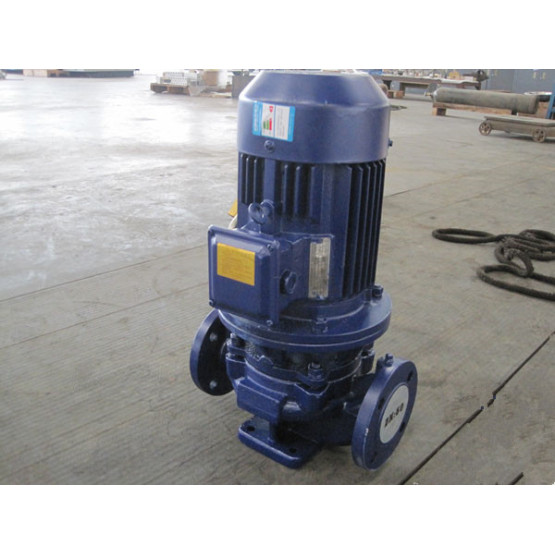

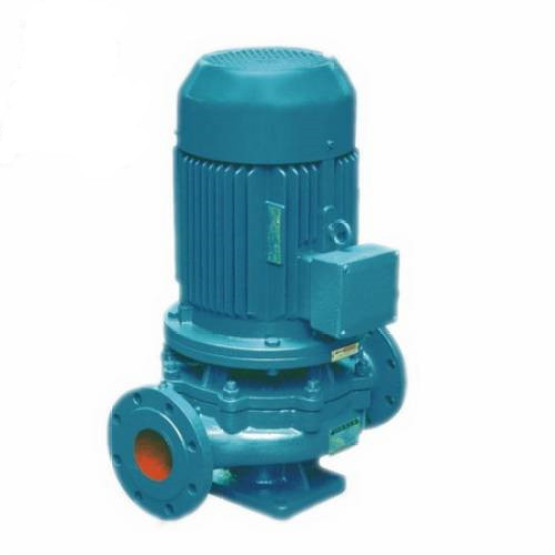

ISG type explosion-proof vertical pipeline pump 4

ISG series single-stage single-suction pipeline centrifugal pump is the scientific and technical personnel of the unit. The water pump expert in the United Nations selects the domestic excellent hydraulic model, adopts the performance parameters of the IS-type centrifugal pump, and carries out ingenious combination design on the basis of the general vertical centrifugal pump. At the same time, according to the use temperature, medium and other different on the basis of ALG type, the application of hot water, high temperature corrosion resistant chemical pump, oil pump. The series of vertical pipeline pump products have the advantages of high efficiency, energy saving, low noise and reliable performance, and meet the requirements of the new national machinery department JB/T53058-93. The products are designed and manufactured according to the international ISO2858 standard.

Main use of vertical pipeline pump

1.ISG vertical pipeline centrifugal pump for conveying clean water and other liquids with physical and chemical properties similar to clean water, suitable for industrial and urban water supply and drainage, high-rise building pressurized water supply, garden sprinkler irrigation, fire boosting, long-distance transportation , HVAC cycle, bathroom and other cold and warm water circulation pressurization and equipment, the use temperature T <80 °C.

2. IRG type vertical heat pump is suitable for metallurgical, chemical, textile, wood processing, paper making, and high-temperature hot water pressurized circulation of boilers in hotels, bathrooms, hotels, etc., as well as pumps for urban housing heating and circulation, with a temperature below 120 °C.

3.GRG vertical high temperature centrifugal pump is widely used in: energy, metallurgy, chemical, textile, papermaking, high temperature hot water pressurized circulation of boilers, hotels, bathrooms, hotels, etc., as well as urban housing heating cycle pumps, using temperatures below 240 °C .

4.IHG vertical pipeline chemical pump for transporting liquids without solid particles, corrosive and viscosity similar to water, suitable for petroleum, chemical, metallurgy, electric power, paper, food, pharmaceutical and synthetic fiber sectors, temperature It is -20 ° C ~ 120 ° C.

5.YG vertical pipeline oil pump for conveying petroleum products such as gasoline, kerosene and diesel. The temperature of the medium to be transported is -20 °C ~ + 120 °C.

6.IHGB vertical stainless steel explosion-proof chemical centrifugal pump, suitable for conveying flammable chemical liquids.

7. ISGD, IRGD, GRGD, IHGH, YGD, IHGBD vertical centrifugal pumps are suitable for occasions where environmental noise requirements are low and air conditioning cycles.

Vertical pipeline pump working conditions

1. Suction pressure ≤1.0MPa, or pump system high working pressure ≤1.6MPa, ie suction pressure + pump head ≤1.6MPa, pump static pressure test pressure ≤2.5MPa, please indicate the system working pressure when ordering. When the working pressure of the pump system is greater than 1.6MPa, it should be separately proposed at the time of ordering, so that the over-flow part and the connecting part of the pump are made of cast steel material during manufacture.

2. Ambient temperature <40 ° C, relative humidity <40%.

3. The volume of solid particles in the medium to be transported does not exceed 0.1 per unit volume, and the particle size is <0.2 mm.

Note: If the medium is made of fine particles, please specify when ordering, so that the manufacturer can wear a wear-resistant mechanical seal.

Vertical pipeline pump features

1. The pump is of vertical structure, the inlet and outlet are the same diameter, and they are located on the same center line. They can be installed in the pipeline like a valve. The shape is compact and beautiful, the floor space is small, and the building investment is low. Can be used outdoors.

2. The impeller is directly mounted on the long shaft of the motor. The axial dimension is short and the structure is compact. The pump and motor bearings are arranged reasonably, which can effectively balance the radial and axial loads generated by the pump operation, thus ensuring the smooth operation of the pump. Low vibration and low noise.

3. The shaft seal adopts mechanical seal or mechanical seal combination. It adopts imported titanium alloy seal ring, medium-sized high temperature resistant mechanical seal and hard alloy material, wear-resistant seal, which can effectively extend the service life of mechanical seal.

4. It is convenient to install and repair, no need to dismantle the pipeline system, just remove the pump joint nut to extract all the rotor parts.

5. The series and parallel operation of the pump can be adopted according to the requirements of use, that is, the flow and the head.

6. The vertical and horizontal installation of the pump can be used according to the requirements of the pipeline arrangement.
