IRG hot water pipe circulation pump

Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
Min. Order: 1 Set/Sets
Delivery Time: 15 Days

Basic Info

Model No.: BODA-097

Product Name: S Series Double Suction Pump

Additional Info

Packaging: wooden box

Productivity: 500

Brand: BODA

Transportation: Ocean,Land,Air

Place of Origin: china

Supply Ability: 500

Certificate: ISO9901

HS Code: 4101201190

Port: Tianjin,Qingdao,Shanghai

Product Description

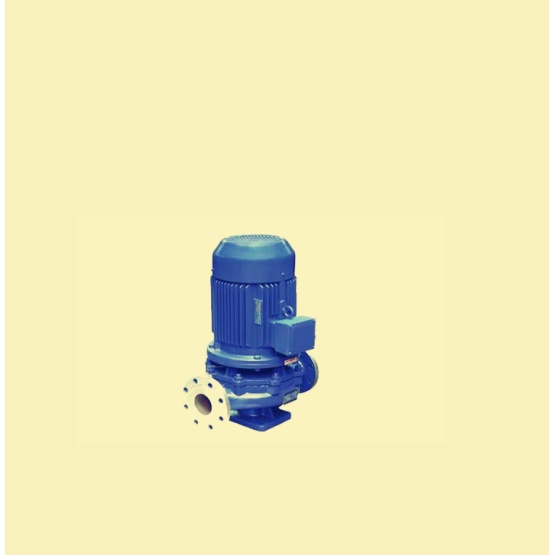

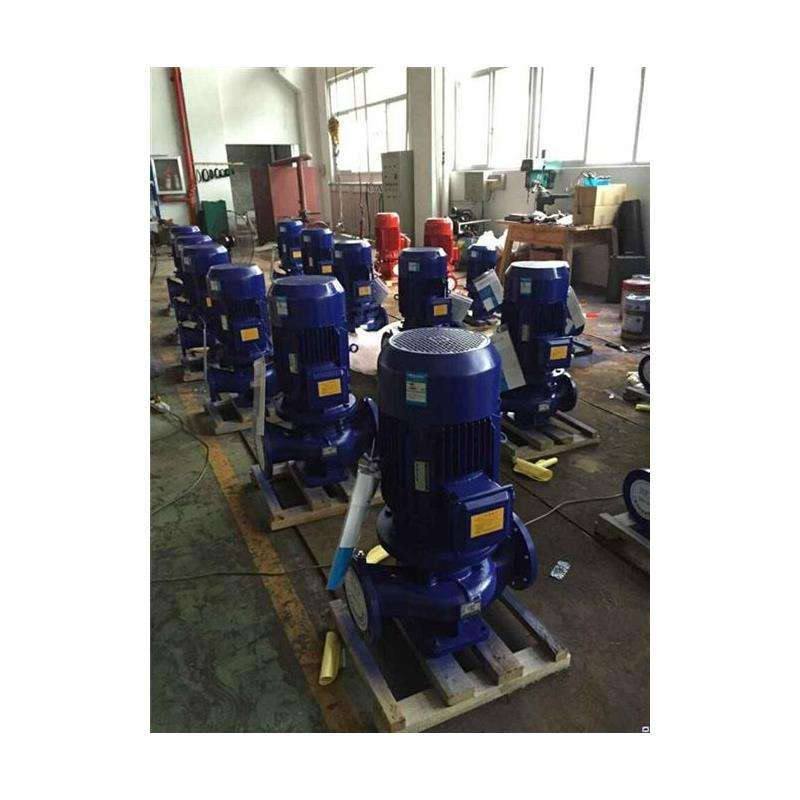

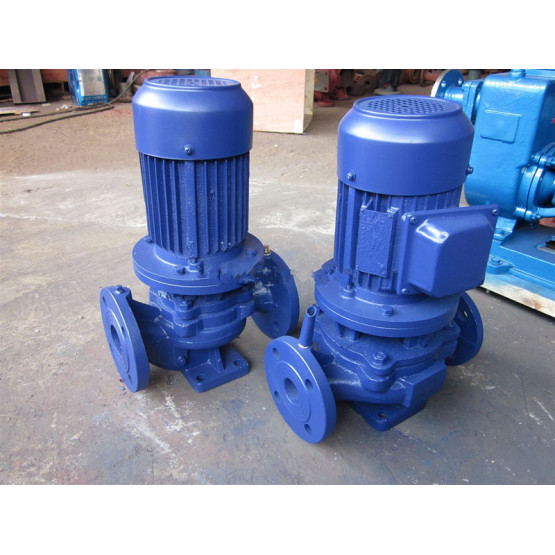

IRG hot water pipe circulation pump 4

Vertical single-stage hot water pipe centrifugal pump main use

1.ISG vertical pipeline centrifugal pump for conveying clean water and other liquids with physical and chemical properties similar to clean water, suitable for industrial and urban water supply and drainage, high-rise building pressurized water supply, garden sprinkler irrigation, fire boosting, long-distance transportation , HVAC cycle, bathroom and other cold and warm water cycle pressurization and equipment matching, the use temperature T <80.

2. IRG type vertical heat pump is suitable for metallurgical, chemical, textile, wood processing, papermaking, high temperature hot water pressurized circulation of boilers in hotels, bathrooms, hotels, etc., as well as pumps for urban housing heating and circulation, with a temperature below 120.

3.GRG vertical high-temperature centrifugal pump is widely used in: energy, metallurgy, chemical, textile, papermaking and high-temperature hot water pressurized circulation of boilers in hotels, bathrooms, hotels, etc., as well as urban housing heating cycle pumps, using temperatures below 240.

4.IHG vertical single-stage stainless steel pipeline centrifugal pump for conveying liquids without solid particles, corrosive and viscosity similar to water, suitable for petroleum, chemical, metallurgy, electric power, paper, food, pharmaceutical and synthetic fiber sectors. , the use temperature is -20 ° C ~ 120.

5.YG type pipeline oil pump is used to transport petroleum products such as gasoline, kerosene and diesel oil. The temperature of the medium to be transported is -20 °C ~ +120.

6.IHGB vertical stainless steel explosion-proof chemical centrifugal pump, suitable for conveying flammable chemical liquids.

7. ISGD, IRGD, GRGD, IHGH, YGD, IHGBD vertical low-speed centrifugal pumps are suitable for occasions where environmental noise requirements are low and air conditioning cycles.

Vertical single-stage hot water pipe centrifugal pump features

1. The hot water pump is of vertical structure, the inlet and outlet diameters are the same, and they are located on the same center line. They can be installed in the pipeline like a valve. The shape is compact and beautiful, the floor space is small, and the construction investment is low, such as adding a protective cover. It can be used outdoors.

2. The impeller is directly mounted on the long shaft of the motor. The axial dimension is short and the structure is compact. The pump and motor bearing are properly arranged, which can effectively balance the radial and axial loads generated by the pump operation, thus ensuring stable operation of the pump. Low vibration and low noise.

3. The shaft seal adopts mechanical seal or mechanical seal combination. It adopts imported titanium alloy seal ring, medium-sized high temperature resistant mechanical seal and hard alloy material. It is wear-resistant and seal, which can effectively extend the service life of mechanical seal.

4. The hot water pipeline pump is easy to install and repair, no need to dismantle the pipeline system, just remove the pump joint nut to extract all the rotor parts.

5. The series and parallel operation of the pump can be adopted according to the requirements of use, ie flow and head.

6. The vertical and horizontal installation of the pump can be used according to the requirements of the piping arrangement.

Vertical single-stage hot water pipe centrifugal pump working conditions

1. Suction pressure ≤1.0MPa, or pump system high working pressure ≤1.6MPa, ie suction pressure + pump head ≤1.6MPa, pump static pressure test pressure ≤2.5MPa, please indicate the system working pressure when ordering. When the working pressure of the pump system is greater than 1.6MPa, it should be separately proposed at the time of ordering, so that the over-flow part and the connecting part of the pump are made of cast steel material during manufacture.

2. Ambient temperature <40 ° C, relative humidity <40%.

3. The volume of solid particles in the medium to be transported does not exceed 0.1 per unit volume, and the particle size is <0.2 mm.

Note: If the medium is made of fine particles, please specify when ordering, so that the factory adopts wear-resistant mechanical seal.

Vertical single-stage hot water pipe centrifugal pump model meaning

Example: IRG50-160(I)A

ISG-Vertical single-stage pipeline centrifugal pump

IRG-Vertical single-stage hot water pipe centrifugal pump

GRG-Vertical single-stage hot water pipe centrifugal pump

IHG-Vertical single-stage stainless steel chemical pump

YG-single stage single suction pipeline oil pump

50-Pump inlet and outlet nominal diameter (mm)

160-impeller nominal outer diameter (mm)

I-flow classification

A-impeller is cut for the first time
