Basic Info

Model No.: BODA-174

Product Name: S Series Double Suction Pump

Additional Info

Packaging: wooden box

Productivity: 500

Brand: BODA

Transportation: Ocean,Land,Air

Place of Origin: china

Supply Ability: 500

Certificate: ISO9901

HS Code: 4101201190

Port: Tianjin,Qingdao,Shanghai

Product Description

The design pressure of the pump at normal temperature is 1.6Mpa

Flow rate Q=3.4~460m3/h

Pump delivery medium temperature is not higher than 250 ° C. Head H = 3.6 ~ 132 m

Note: According to the needs of users, our factory can also produce insulation pumps for other materials.

Product Usage

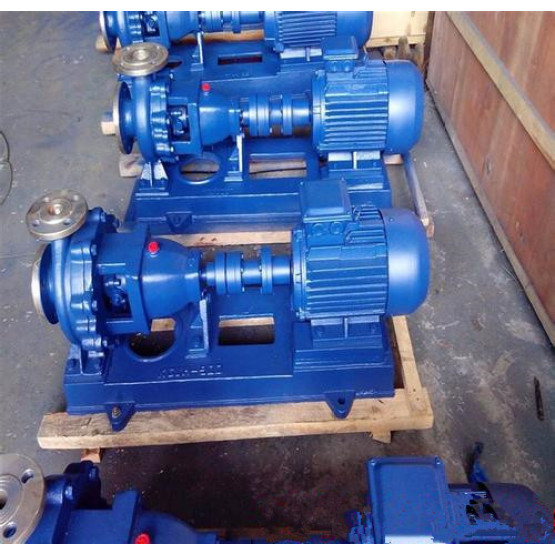

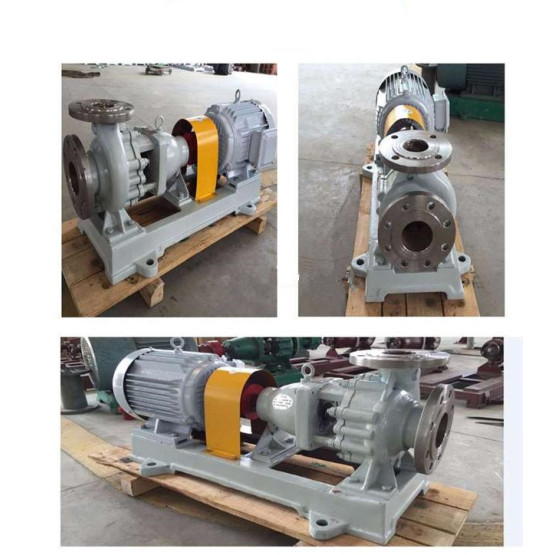

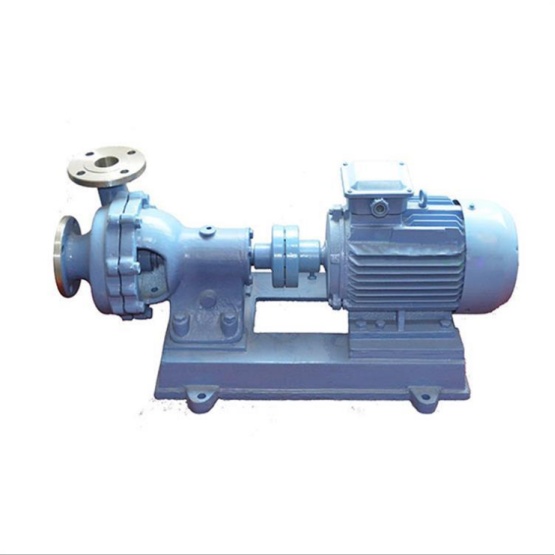

IR type corrosion-resistant thermal insulation pump is a single-stage single-suction cantilever centrifugal pump series. It is a derivative of IH-type chemical centrifugal pump. It is mainly used in the chemical solution, chemical fiber, petroleum, food, pharmaceutical and other industries to transport the solution medium freezing point (or crystallization point temperature). High, corrosive high temperature liquid.

Technical Parameters

The design pressure of the pump at normal temperature is 1.6Mpa

Flow rate Q=3.4~460m3/h

Pump delivery medium temperature is not higher than 250 ° C. Head H = 3.6 ~ 132 m

Note: According to the needs of users, our factory can also produce insulation pumps for other materials.

structure

The IR type heat preservation pump is a horizontal radial part rear door structure, and it is not necessary to disassemble the pipeline during maintenance.

The body is axially inhaled and radially exits the intermediate support.

The bearings are lubricated with thin oil and the bearing frame is equipped with an oil level gauge and a water cooling device.

The insulated steam line of the pump is connected to the external heat preservation steam system through a flange or a wire port.

The pump and the motor are connected by a long and easy-disconnect coupling.

Model meaning

For example: IR50-32-200 (A)

IR-corrosion resistant insulation pump

50-suction port diameter (mm)

32-row inlet diameter (mm)

200-impeller nominal diameter (mm)

A-impeller outer diameter is cut for the first time
