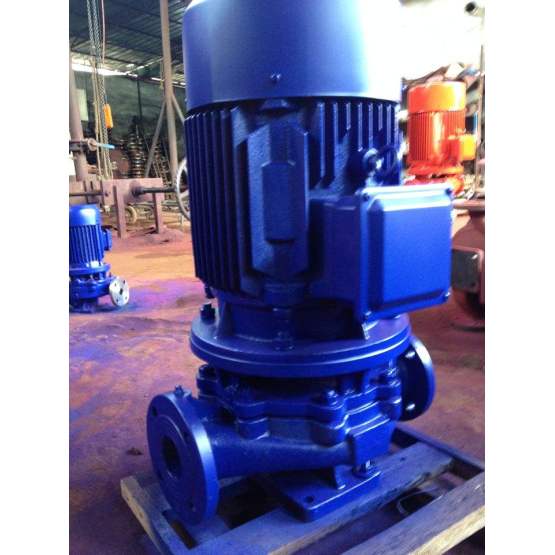

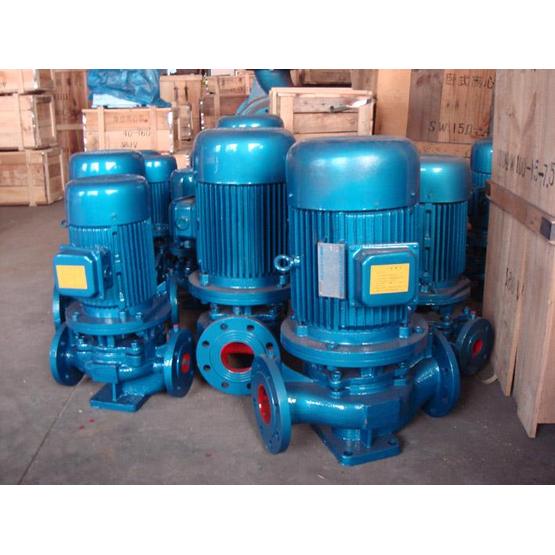

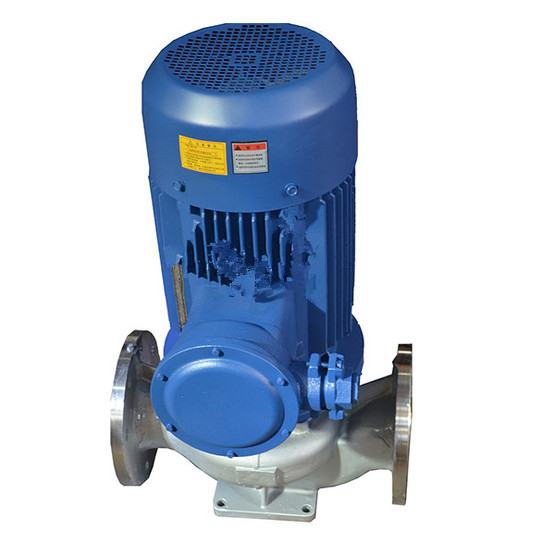

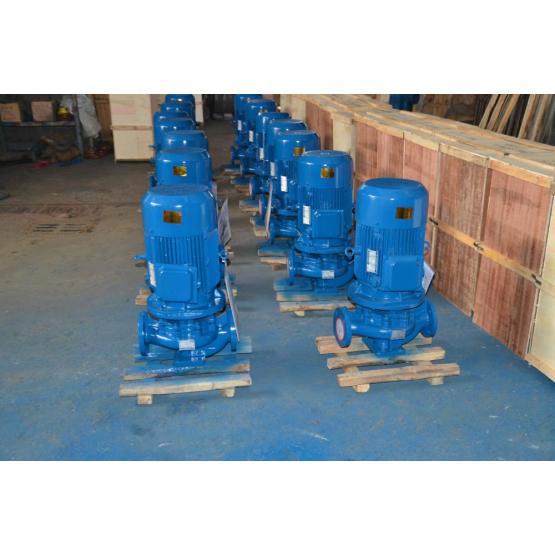

IHGB vertical explosion-proof pipeline centrifugal pump

Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm: FOB,CFR,CIF,FCA,CPT
Min. Order: 1 Set/Sets
Delivery Time: 15 Days

Basic Info


Model No.: BODA-200

Product Name: S Series Double Suction Pump


Additional Info


Packaging: wooden box

Productivity: 500

Brand: BODA

Transportation: Ocean,Land,Air

Place of Origin: china

Supply Ability: 500

Certificate: ISO9901

HS Code: 4101201190

Port: Tianjin,Qingdao,Shanghai


Product Description

IHG stainless steel corrosion resistant pipeline pump 2

1.IHGB vertical stainless steel explosion-proof pipeline centrifugal pump suction pressure ≤1.0MPa, or pump system high working pressure ≤1.6MPa, that is, suction pressure + pump head ≤1.6MPa, pump static pressure test pressure ≤2.5MPa, please order Indicate the system work pressure. When the working pressure of the pump system is greater than 1.6MPa, it should be separately proposed at the time of ordering, so that the over-flow part and the connecting part of the pump are made of cast steel material during manufacture.

2. Ambient temperature <40 ° C, relative humidity <40%.

3. The volume of solid particles in the medium to be transported does not exceed 0.1 per unit volume, and the particle size is <0.2 mm.

Main use of IHGB vertical stainless steel pipe centrifugal pump

1.ISG vertical pipeline centrifugal pump for conveying clean water and other liquids with physical and chemical properties similar to clean water, suitable for industrial and urban water supply and drainage, high-rise building pressurized water supply, garden sprinkler irrigation, fire boosting, long-distance transportation , HVAC cycle, bathroom and other cold and warm water circulation pressurization and equipment, the use temperature T <80 °C.

2. IRG type vertical heat pump is suitable for metallurgical, chemical, textile, wood processing, paper making, and high-temperature hot water pressurized circulation of boilers in hotels, bathrooms, hotels, etc., as well as pumps for urban housing heating and circulation, with a temperature below 120 °C.

3.GRG vertical high temperature centrifugal pump is widely used in: energy, metallurgy, chemical, textile, papermaking, high temperature hot water pressurized circulation of boilers, hotels, bathrooms, hotels, etc., as well as urban housing heating cycle pumps, using temperatures below 240 °C .

4.IHG vertical single-stage stainless steel pipeline centrifugal pump for conveying liquids without solid particles, corrosive and viscosity similar to water, suitable for petroleum, chemical, metallurgy, electric power, paper, food, pharmaceutical and synthetic fiber sectors. The use temperature is -20 ° C ~ 120 ° C.

5.YG type pipeline oil pump is used to transport petroleum products such as gasoline, kerosene and diesel oil. The temperature of the medium to be transported is -20 °C ~ + 120 °C.

6.IHGB vertical stainless steel explosion-proof pipeline centrifugal pump, suitable for conveying flammable chemical liquids.

7. ISGD, IRGD, GRGD, IHGH, YGD, IHGBD vertical low-speed centrifugal pumps are suitable for occasions where environmental noise requirements are low and air conditioning cycles.

IHGB vertical stainless steel pipe centrifugal pump product features

1.IHGB vertical stainless steel explosion-proof pipeline centrifugal pump is a vertical structure with the same diameter and diameter, and is located on the same center line. It can be installed in the pipeline like a valve. The shape is compact and beautiful, the floor space is small, and the building investment is low. If it is equipped with a protective cover, it can be used outdoors.

2. The impeller is directly mounted on the long shaft of the motor. The axial dimension is short and the structure is compact. The pump and motor bearings are arranged reasonably, which can effectively balance the radial and axial loads generated by the pump operation, thus ensuring the smooth operation of the pump. Low vibration and low noise.

3. The shaft seal adopts mechanical seal or mechanical seal combination. It adopts imported titanium alloy seal ring, medium-sized high temperature resistant mechanical seal and hard alloy material, wear-resistant seal, which can effectively extend the service life of mechanical seal.

4. It is convenient to install and repair, no need to dismantle the pipeline system, just remove the pump joint nut to extract all the rotor parts.

5. The series and parallel operation of the pump can be adopted according to the requirements of use, that is, the flow and the head.

6. The vertical and horizontal installation of the pump can be used according to the requirements of the pipeline arrangement.

IHGB vertical stainless steel pipe centrifugal pump working conditions

1.IHGB vertical stainless steel explosion-proof pipe centrifugal pump suction pressure ≤1.0MPa, or pump system high working pressure ≤1.6MPa, that is, suction pressure + pump head ≤1.6MPa, pump static pressure test pressure ≤2.5MPa, please order Indicate the system work pressure. When the working pressure of the pump system is greater than 1.6MPa, it should be separately proposed at the time of ordering, so that the over-flow part and the connecting part of the pump are made of cast steel material during manufacture.

2. Ambient temperature <40 ° C, relative humidity <40%.

3. The volume of solid particles in the medium to be transported does not exceed 0.1 per unit volume, and the particle size is <0.2 mm.

Note: If the medium is made of fine particles, please specify when ordering, so that the factory adopts wear-resistant mechanical seal.

Model meaning of IHGB vertical stainless steel pipe centrifugal pump

IHGB vertical stainless steel explosion-proof pipe centrifugal pump

Example: ISG50-160(I)A

IHGB-Vertical single-stage pipeline centrifugal pump

IHGB-Vertical single-stage hot water pipe centrifugal pump

IHGB-Vertical single-stage hot water pipe centrifugal pump

IHG-Vertical single-stage stainless steel chemical pump

YG-single stage single suction pipeline oil pump

50-Pump inlet and outlet nominal diameter (mm)

160-impeller nominal outer diameter (mm)

I-flow classification

A-impeller is cut for the first time
