GDLW series stainless steel multistage centrifugal pump

Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm: FOB,CFR,CIF,FCA,CPT
Min. Order: 1 Set/Sets
Delivery Time: 15 Days

Basic Info


Model No.: BODA-099

Product Name: S Series Double Suction Pump


Additional Info


Packaging: wooden box

Productivity: 500

Brand: BODA

Transportation: Ocean,Land,Air

Place of Origin: china

Supply Ability: 500

Certificate: ISO9901

HS Code: 4101201190

Port: Tianjin,Qingdao,Shanghai


Product Description

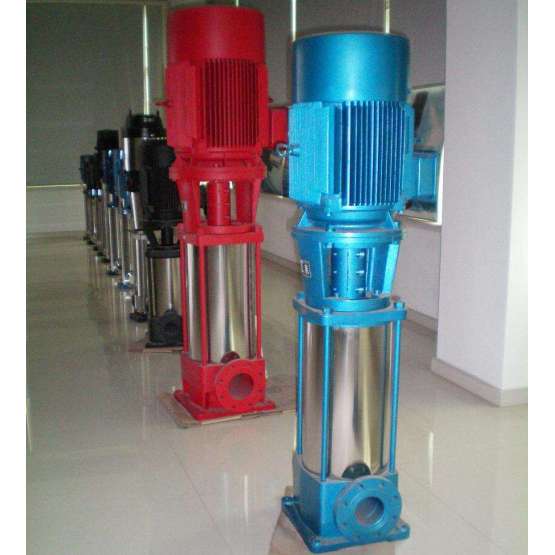

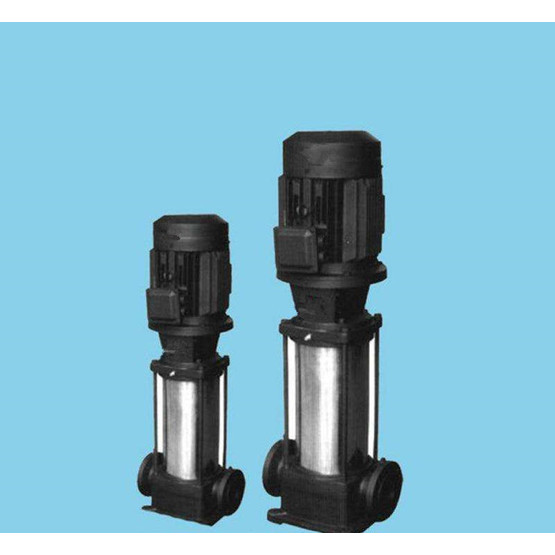

GDLW series stainless steel multistage centrifugal pump 3


product description

      GDLW (GDLF) series stainless steel multi-stage centrifugal pump is a combination of the cold drawing extrusion technology and the projection welding technology of the automobile industry. It integrates the essence of the modern pump industry and is designed and manufactured with high lift, high efficiency and low. New series of vertical pumps with low noise, mild corrosion resistance and compact structure, small footprint, light weight and long service life. The pump is available in 8 series. The pump is referenced to JB/T6435.1-6435.2. -92 standard design.

Features

The pump flow rate can reach 80m3/h, the outlet pressure can reach 2.4MPa, the temperature is -20°C-+150°C, and the maintenance is simple, and the intermediate cavity can be replaced as a whole. Easy to start, exhaust through the bypass valve, unique hydraulic design, a variety of connections, such as oval flanges and DIN standard flanges, and PJE and card frame connection and welding.

Product Usage

Water supply system: filtration and transportation of water plants, district water supply of water plants, supercharged supercharged, high-rise building supercharged, hotel supercharged

Industry: Industrial water pressurization, process water systems, cleaning systems, high pressure cleaning systems, vehicle cleaning, fire protection systems

Agriculture: Farmland irrigation, land irrigation, garden irrigation, drip irrigation

Petrochemical industry: crude oil transportation, engine oil, other softened water, etc.

Water treatment: high pressure filtration system, infiltration system, electrolysis, desalination system, distillation system, separator, swimming pool cleaning, desalinated swimming pool water

Other transport: oil and alcohol, acid, lye, peanut oil, hydraulic oil, olive oil, oily water

Beverage and food industry: beverage and food industry, wine, beverage, rapeseed oil, corn oil, apple oil, citric acid, etc.

Model meaning

For example: 40GDLW (GDF) 6-8×10

40-Import and export diameter (40mm)

GDLW (GDLF) - light multi-stage pump

6-Design flow (m3/h)

8-design single-stage head (8m)

10-level number (10 levels).
