Basic Info

Model No.: BODA-176

Product Name: S Series Double Suction Pump

Additional Info

Packaging: wooden box

Productivity: 500

Brand: BODA

Transportation: Ocean,Land,Air

Place of Origin: china

Supply Ability: 500

Certificate: ISO9901

HS Code: 4101201190

Port: Tianjin,Qingdao,Shanghai

Product Description

The GBW concentrated sulfuric acid pump is optimized according to the performance parameters of the IS type centrifugal pump, using two kinds of materials such as concentrated sulfuric acid special cast iron and carbon steel and excellent hydraulic model. Is the ideal new generation chemical pump.

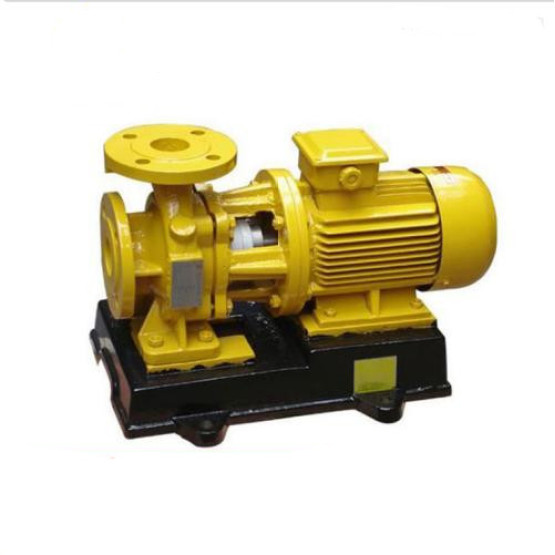

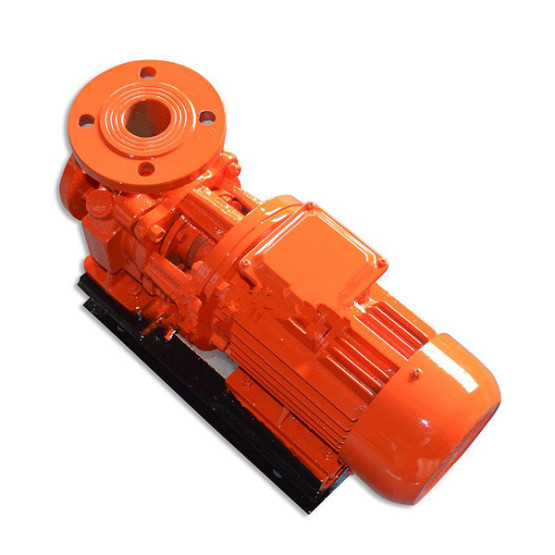

Overview of GBW concentrated sulfuric acid centrifugal pump

The GBW concentrated sulfuric acid pump is optimized according to the performance parameters of the IS type centrifugal pump, using two kinds of materials such as concentrated sulfuric acid special cast iron and carbon steel and excellent hydraulic model. Is the ideal new generation chemical pump.

GBW concentrated sulfuric acid centrifugal pump features

The pump shaft seal adopts an external high-quality mechanical seal, and the dynamic and static rings are made of new hard alloy or ceramic, which is wear-resistant, leak-free and has a long service life.

Installation and use and precautions and maintenance

1. Before installation, carefully check the hard material in the pump body flow path to avoid damage to the impeller and pump body during operation.

2. The regulating valve should be installed on the inlet and outlet 1 of the pump to control the pump to operate within the rated working conditions.

3. Open the inlet valve to fill the entire pump chamber with liquid.

4. Turn on the power. When the pump reaches the normal speed, gradually open the valve on the discharge pipe and adjust to the required working condition.

5. Check the temperature rise of the motor and bearing at ≤70°C and find that the abnormality is handled in time.

6. It is strictly forbidden to work mechanical seals under dry grinding conditions.
