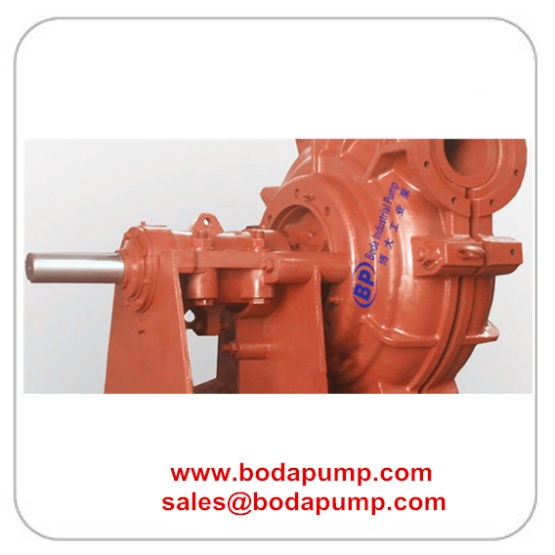

End Suction Centrifugal Slurry Sludge Pump

Payment Type: L/C,T/T,Western Union
Incoterm: FOB,CFR,CIF
Min. Order: 1 Set/Sets
Delivery Time: 20 Days

Basic Info


Model No.: BM BH

Working Pressure: High Pressure Pump

Position Of Pump Shaft: Horizontal Pump

Impeller: Closed

Material: A05 A07 A49

Origin: Shijiazhuang

Drive Type:: CV, DC, Zv, Cr

Color: As Your Requirement

Package: In Woodenc Case Or As Your Requirement

Power: Electric Or Diesel

Model No.: BM BH


Additional Info


Packaging: In Wooden case or as your requirement

Productivity: 300sets/month

Brand: Boda

Transportation: Ocean,Land,Air

Place of Origin: Shijiazhuang

Certificate: ISO


Product Description

Horizontal Abrasion & Corrosion Resistant Slurry Pump:

BH BM series is the standard heavy duty slurry pumps which designed for the continuous pumping of
highly abrasive,high density slurries with minimal maintenance requirements,It maintains high efficiencies over the wear life of its components. This type of pump typically used in process plant transfers,wet waste processes, recycling-washing plants,sand plant duties, heavy minerals processing,mineral recovery and chemical process
plant.


Horizontal Abrasion & Corrosion Resistant Slurry Pump Type Selection:

Refering to the performance curves of the pump the selected capacity range should be as follows:

Pump Type BM, BH: 40-80% for higher density, strong abrasive slurries

                                  40-80% for medium density, medium abrasive slurries

                                 40-120% for lower density, lower abrasive slurries


Slurry Pump Features:

- Wear resistant metal or rubber wet end parts, long service life
- Wide options for impeller
- Various types of pump seals to suit different working condition
- Grease or oil lubrication
- Discharge branch can be positioned at intervals of 45 degree
- Can be installed in multistage series
- Easy to maintain


Horizontal Abrasion & Corrosion Resistant Slurry Pump Performance Table:


Type
Allowable Mating Max.Power(kw)
Clear Water Performance
Impeller
Capacity  Q
Head
H
(m)
Speed
n
(r/min)
Max EFF η(%)
NPSH)
(m)
No of Vanes
Impel Dia(mm)
(m3/h)
(L/S)
1.5/1B-BH
15
12.6-28.8
3.5-8
6-68
1200-3800
40
2-4
5
152
2/1.5B-BH
15
32.4-72
9-20
6-58
1200-3200
45
3.5-8
5
184
3/2C-BH
30
39.6-86.4
11-24
12-64
1300-2700
55
4-6
5
214
4/3C-BH
30
86.4-198
24-55
9-52
1000-2200
71
4-6
5
245
4/3D-BH
60
6/4D-BH
60
162-360
45-100
12-56
800-1550
65
5-8
5
365
6/4E-BH
120
6/4D-BH
60
180-396
50-110
7-61
600-1600
55
3-8
4
372
6/4E-BH
120
8/6E-BH
120
360-828
100-230
10-61
500-1140
72
2-9
5
510
8/6R-BH
300
8/6E-BH
120
360-828
100-230
7-52
400-1000
70
2.5-6
4
536
8/6R-BH
300
360-828
100-230
7-52
400-1000
70
2.5-6
4
536
10/8ST-BH
560
612-1368
170-380
11-61
400-850
71
4-10
5
686
12/10ST-BH
560
936-1980
260-550
7-68
300-800
82
6
5
762
14/12ST-BH
560
1260-2772
350-770
13-63
300-600
77
3-10
5
965
16/14ST-BH
560
1368-3060
380-850
11-63
250-550
79
4-10
5
1067
16/14TU-BH
1200
10/8E-BM
120
540-1440
150-400
14-60
600-1100
73
4-10
5
549

* Dimensionally Interchangeable with:

BM ≈Warman®M

BH≈Warman®AH


Horizontal Abrasion & Corrosion Resistant Slurry Pump Structure:

slurry pump elastomer parts

slurry pump metal parts

packing seal


slurry pump expeller assembly

bearing assembly



Horizontal Abrasion & Corrosion Resistant Slurry Pump Application:

slurry pump application 1

slurry pump  application in series

heavy duty slurry pump

slurry pump application in Aluminum plant

slurry pump application




Corrosion Resistant Slurry Pump
