Basic Info

Model No.: ZJ

Model No.: ZJ

Working Pressure: High Pressure Pump

Position Of Pump Shaft: Horizontal Pump

Impeller: Closed

Material: A05 A07 A49

Discharge Diameter: 65-450mm

Origin: Shijiazhuang

Drive Type:: CV, DC, Zv, Cr

Color: As Your Requirement

Package: In Woodenc Case Or As Your Requirement

Additional Info

Packaging: In Wooden case or as your requirement

Productivity: 200sets/month

Brand: Boda

Transportation: Ocean,Land,Air

Place of Origin: Shijiazhuang

Certificate: ISO

Product Description

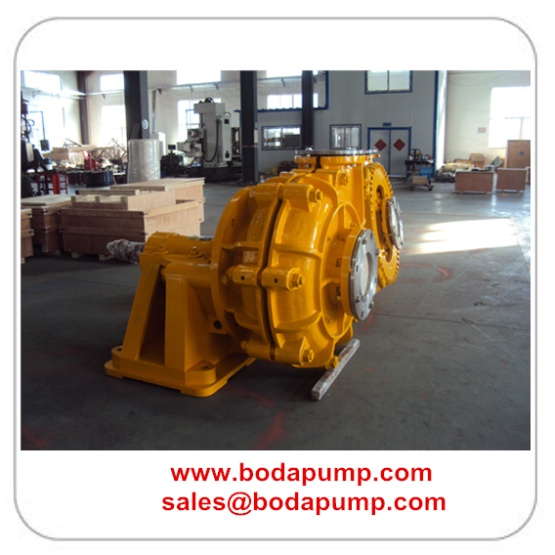

Horizontal Centrifugal Slurry Pump

General:

The ZJ(G) series slurry pump, which are created by Shijiazhuang Boda Industrial Pump Co., Ltd, is a new generation anti-wear, energy saving slurry pump. The ZJ(G) series pumps used international advanced solid-liquid two-phase flow theory and were designed using the minimum-wear principle. The flow parts of these pumps are suitable for the flow of state media for it's set shape, which reduces hydraulic loss of eddy and impact, both in pump and along the pipelines; So reduced friction of flow parts, lower noise and vibration of the pump translates into improved hydraulic efficiency.
The ZJ(G) series pumps are cased in hard-alloy which is a high anti-wear and high anti-corrosion impact resistance material, which means the pump will have a longer service life. In addition, this series pumps used an automatic reduced pressure system to avoid liquid leakage.
The ZJ(G) series slurry pumps are widely used in mining, metallurgy, power, coal and building material sectors. The ZJ(G) series pumps are suitable for handling abrasive and corrosive solids-bearing slurry with maximum concentrations of wt. 45% (ash) and wt. 60% (ore).
We have all kinds of ZJ(G) series slurry pumps, all of which can be made of directly driven (DC), directly driven via hydraulic coupling(HC), belt driven, and they can be operated in tandem and parallel positions according to the requirements of the customer.

Notation:
200ZJ(G)-I-A60(58)
200 Outlet diameter(mm)
ZJ denotes slurry pumps ( ZJL denotes vertical pumps, ZJD-single-case pumps)
(G) High-head (usually can be omitted)
I single stage pump ( II denotes th second stage pump)
A number of vanes of impeller ( A denotes 5 vanes, B--4 vanes, C--3 vanes, D--2 vanes)
60 External diameter of impeller (cm)
58 External diameter of impeller after incision (cm)
Application Field:
. Metallurgy and mine: Transport black and colored course-mine, fine-mine and slurry of end-mine, etc.
. Electric power: Transport ash mud&slurry in electric power, etc.
. Coal: Transport various course & fine coal mud, etc.
. Contruction material: Transport various slurry contain mud & sand, etc.
. Chemical industry departments: Transport every kinds of abrasive and corrosive slurry in the
Phosphorus and kalium manufactories, etc.
. Environmental protection: Flue gas desulfuration and transportation of gypsum mortar, etc.

The superior material & technique of wear-resistant:
Hydraulic adopted hydraulic design, wear abrasion of pump parts can be improved
Effectively. It is most important for the lifetime of pump that if selected material is fit for
The liquid. According to the concrete circumstance of each conditions, our limited
Analyzes seriously its basic wear mechanism & wear regulation, selects suitable serial
A material of wear-resistant & corrosion-resistant or other metal & nonmetal wear-resistant material for wear flow parts so as to combine the operation request of pump
And the select parts best to get super operation benefit.
The wear abrasion is various. Usually serials A material of wear- resistant & corrosionresistant is selected to transport liquid according to its quality,
Grain diameter, corrosive performance, temperature and etc. It is serials antiwear
Material which is introduced and developed by ourselves according to practice
Experience of 50 years. Its hardness is HRC35-68, and has more than 30 types such as type antiwear,   type anticorrosion,
Type special acid and etc. They can be selected by customers.
Among others, our company based on the introduced technique, associates with
Internal first class colleges and institutes to develop wearresistant alloy cast iron of

A05, A07 and etc. Anti-wear can be enhanced 30% than regular similar materials.

Horizontal Centrifugal Slurry Pump Technical Data:

Type	Speed	Capacity	Head	NPSH
	rpm	m³/h	m	m
300ZJ-I-100A	490/590	758-1826	40.9-65.2	3-4.1
300ZJ-I-95A	490/590	720-1735	36.9-58.8	3-4.1
300ZJ-I-90A	590/730	745-1844	46.2-79.9	3.9-5.7
300ZJ-I-85A	590/730	704-1742	41.2-71.3	3.8-5.6
300ZJ-I-70A	730/980	945-2333	35.5-76.8	3.9-7
300ZJ-I-65A	730/980	877-2166	30.6-66.2	3.7-6.6
300ZJ-I-56A	730/980	588-1568	21.5-46	3.5-5.5
250ZJ-103A	590/730	593-1573	64.6-110.5	2.8-4.3
250ZJ-I-96A	590/730	595-1466	55.2-93.7	3.5-5.5
250ZJ-I-90A	590/730	558-1374	48.5-82.4	3.4-5.3
250ZJ-I-85A	730/980	560-1504	66.8-128.7	3.5-5.5
250ZJ-I-83A	730/980	547-1469	63.7-122.7	3.5-5.5
250ZJ-I-80A	730/980	527-1416	59.2-114	3.4-5.4
250ZJ-I-78A	730/980	514-1380	56.3-108.4	3.2-5.1
250ZJ-I-75A	730/980	447-1480	46.2-97.5	3-4.1
250ZJ-I-73A	730/980	435-1441	43.8-92.4	3-4.1
250ZJ-I-70A	730/980	417-1381	40.2-84.9	2.9-3.9
250ZJ-I-68A	730/980	405-1342	38-80.1	2.7-3.7
250ZJ-I-65A	730/980	445-1249	34.1-71	3-4.5
250ZJ-I-63A	730/980	431-1211	32-66.7	3-4.5
250ZJ-I-60A	730/980	411-1153	29.1-60.5	2.8-4.2
200ZJ-I-85A	730/980	329-907	71-133.7	2.8-5
200ZJ-I-75A	730/980	335-900	50.5-102.9	3-4.5
200ZJ-I-73A	730-980	326-876	47.8-97.5	3-4.5
200ZJ-I-70A	730/980	305-976	43.1-86.4	2.8-3.8
200ZJ-I-68A	730/980	296-948	40.7-81.5	2.8-3.8
200ZJ-I-65A	730/980	350-950	36.4-72	2.5-4.3
200ZJ-I-63A	730/980	339-921	34.2-67.6	2.5-4.3
200ZJ-I-60A	730/980	324-870	30.8-62	2.5-4
200ZJ-I-58A	730/980	313-841	28.8-57.9	2.5-4
150ZJ-I-70A	730/980	139-401	44.3-91.2	2-3
150ZJ-I-65A	730/980	223-600	38.5-75.7	2.5-4
150ZJ-I-63A	730/980	216-582	36.2-71.1	2.5-4
150ZJ-I-60A	730/980	201-550	32.6-63.5	2.5-3.8
150ZJ-I-58A	730/980	194-532	30.5-59.3	2.5-3.8
150ZJ-I-55A	730/980	184-504	27.4-53.4	2.3-3.5
150ZJ-I-58C	730/980	200-596	28.4-61	2-3.2
150ZJ-I-57A	730/980	142-427	29.4-56.3	1.8-2.9
150ZJ-I-50A	730/980	171-460	21-43.1	2.5-3
150ZJ-I-48A	730/980	164-442	19.4-39.7	2.5-3
150ZJ-I-42C	980/1480	199-550	23.8-62.8	2.2-4.5
100ZJ-I-50A	980/1480	119-360	40.2-100.2	2.5-4.5
100ZJ-I-46A	980/1480	109-331	34-84.8	2.3-4.2
100ZJ-I-42A	980/1480	93-275	28.7-70.8	2.5-4
100ZJ-I-39A	980/1480	86-255	24.7-61	2.4-3.8
100ZJ-I-42B	980/1480	64-205	24.7-70.7	1.8-2.8
100ZJ-I-36A	980/1480	86-245	19-49.5	2-3.5
100ZJ-I-33A	980/1480	79-225	16-41.6	1.8-3.2
80ZJ-I-52A	980/1480	71-242	43.4-109.8	2.1-4.3
80ZJ-I-42A	980/1480	86-204	28.1-70.4	2.5-4.2
80ZJ-I-39A	980/1480	80-189	24.3-60.7	2.4-4
80ZJ-I-36A	980/1480	65-190	18.7-51.4	2.5-3.7
80ZJ-I-33A	980/1480	60-174	15.7-43.2	2.3-3.4
65ZJ-I-30A	980/1480	31-79	13.8-34.8	2-3
65ZJ-I-27A	980/1480	28-71	11.2-28.2	1.8-2.7
50ZJ-I-50A	980/1480	38-111	43.8-110.7	3-3.8
50ZJ-I-46A	980/1480	31-94	34.3-85.8	1.4-2.9
50ZJ-I-33A	980/1480	17-54	14.5-42.5	2.9-6
40ZJ-I-17A	1400/2900	4-23	9.1-44.6	2.5-4.5

Horizontal Centrifugal Slurry Pump Application:
