Basic Info

Model No.: D-DT

Working Pressure: High Pressure Pump

Position Of Pump Shaft: Horizontal Pump

Impeller: Closed

Material: A05 A07 A49

Origin: Shijiazhuang

Drive Type:: CV, DC, Zv, Cr

Color: As Your Requirement

Package: In Woodenc Case Or As Your Requirement

Power: Electric Or Diesel

Product Name: High Chrome Mineral Processing Slurry Pumping Mach

Additional Info

Packaging: In Wooden case or as your requirement

Productivity: 300sets/month

Brand: Boda

Transportation: Ocean,Land,Air

Place of Origin: Shijiazhuang

Supply Ability: 300 sets per month

Certificate: ISO

HS Code: 8413709990

Port: Xingang,Ruili,SHANGHAI

Product Description

Product Description

Brief introduction:
DT desulfurization pump is a specially developed product for desulfurization and denitration process of power plant. It is suitable to be used as limestone slurry pump,filtrate pump,gypsum slurry discharge pump,drainage pump...The hydraulic models of DT desulfurization pump is optimized designed by D,and its passage is designed under the theory of abrasion of slurry pump.The wetted parts material for DT desulfurization pump is an anti-abrasive and anti-corrosive material which was developed by Zigong Pump itself.

Parameters:

1. Flow rate:Q=10~1920 (m³/h)
2. Total head:H=15~75 (m)
3. Speed:n=980-2450rpm
4. S.g.:γ ≤1.5
5. Temperature:T=0~120ºC
6. Pump diameter:25~300mm

Features:

1. Pump passage is designed under the theory of abrasion of slurry pump,which has an optimized structure and high efficiency.
2. Horizontal bracket structure with big loading capacity.
3. Achievable of multi-point weak current monitoring.
4. Transmission: Direct coupled,V-belt drive,variable frequency drive,hydraulic coupling.
5. Single casing structure enables the easy disassembly.
6. Various anti-abrasion materials for different applications.

Structure:

1. Single stage and cantilever type anti-abrasion pump.
2. Single casing structure with back pull design.
3. Different sealing types to meet the requirements of different applications.
4. The standard pump discharge is vertical,and up horizontal and bottom horizontal discharge are also available.

Product Description

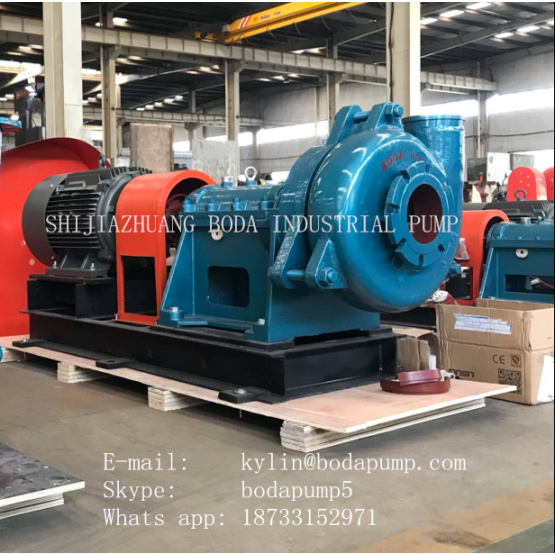

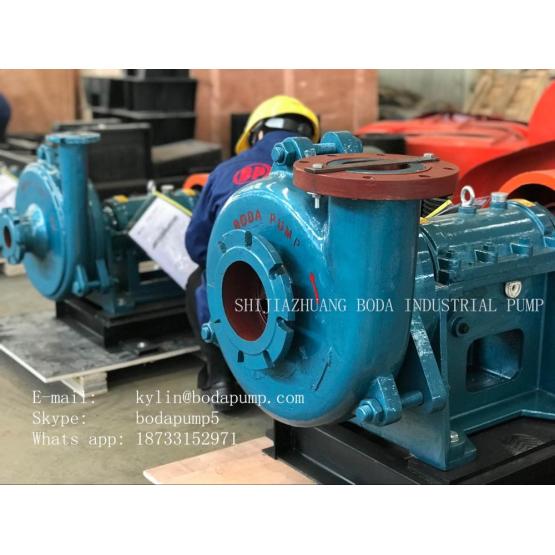

Desulfurization large slurry Pump
We are professional manufacturer for Desulfurization large slurry Pump, our Desulfurization large slurry Pump is with high and stable quality, and we have made many water pump solutions for many customers.
wide application scope
long life span
anti-abrasive & anticorrosive
no blockage
DT(TL) type desulfurization pump is carefully designed high effective new generation desulfurization pump, widely used as large scale serosity circulating, lime slurry transportation,plaster slurry ejection, collection etc.
DT(TL) desulfurization pump adopt horizontal single stage,single suction and bracket structure.
working condition:
serosity PH : 2.5 ~ 13
density of chlorin ion ≤60000 ppm
Density of weight ≤60%
media temperature ≤ 120°c
DT (TL) desulfurization pump
capacity: 4m3/h ~10200m3/h
head: 4.4m ~70.8m
power: 0.55kw ~ 800kw
Product Description
Biref introduction:
D flue gas desulfurization pump was elaborately designed to meet the requirements of wet process D of limestone(lime) and gypsum for coal fired power plants.The hydraulic models of D desulfurization pump is optimized designed by D,and its passage is designed under the theory of abrasion of slurry pump.The wetted parts material for D desulfurization pump is an anti-abrasive and anti-corrosive material which was developed by Zigong Pump itself. The biggest diameter of D series is 900 mm at present, and it is widely used in the flue gas desulfurization and denitration process of power plant and other environment protection projects.
Parameters:

1. Flow rate:Q=700~14000 (m³/h)
2. Total head:H=15~63 (m)
3. Speed:n=420~980rpm
4. S.g.:γ ≤1.5
5. Temperature:T=0~120ºC
6. Pump diameter:300~900mm

Features:

1. Elaborately designed based on the characters of flue gas desulfurization of thermal power plant to meet the requirements of a facility below 1000 MW.
2. Hydraulic models are D optimized to have excellent performance of anti-cavitation.
3. Specially designed mechanical seal for flue gas desulfurization process.
4. The impeller position can be adjusted by the bearing housing,this brings a shortcut to recover the pump performance under a slightly abrasion.
5. Axial adjusting structure to maintain the distance between impeller and front cover plate to keep a high efficient operation.
6. The specially designed anti-corrosive and anti-abrasive duplex stainless white iron for D process,which has the advantages of both duplex stainless steel and white anti-abrasive iron alloy.

Structure:

1. All metal materials for pump set,without any lining rubber or other high polymer material.
2. Pump casing adopts duplex stainless steel of 2605N and 2205,which have excellent resistant performance of chloride ions and sulfate ions,and therefore is the first choice of desulfurization pumps.
3. Front and back open structure,the rotary part can be removed from the casing without dismantling the pipelines.
4. Cartridge mechanical seal with internal or external flushing plans.
5. The bearing part is back pull structure,which is assembled in the bearing housing.
6. Transmission: directly coupled and gear box drive.
