Basic Info

Model No.: BODA-142

Product Name: S Series Double Suction Pump

Additional Info

Packaging: wooden box

Productivity: 500

Brand: BODA

Transportation: Ocean,Land,Air

Place of Origin: china

Supply Ability: 500

Certificate: ISO9901

HS Code: 4101201190

Port: Tianjin,Qingdao,Shanghai

Product Description

1. Carry out non-leakage operation, which can transport flammable, explosive, highly toxic and corrosive media;

2, the material is excellent, the pump body, impeller, isolation sleeve and other over-current parts are made of high quality stainless steel;

3. The bushing adopts high wear-resistant silicon carbide and tungsten carbide. The sliding bearing adopts carbon stone M106K, and a lubricating oil groove is provided to effectively ensure the service life of the pump;

4, vertical installation, compact structure, small footprint;

5, the vibration is small, the noise is low, and the operation is particularly stable;

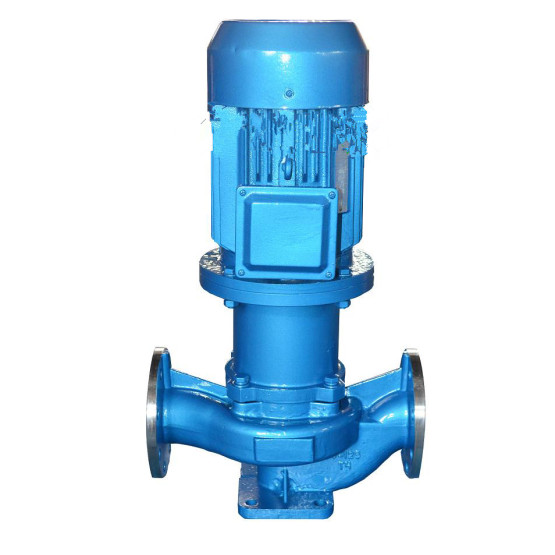

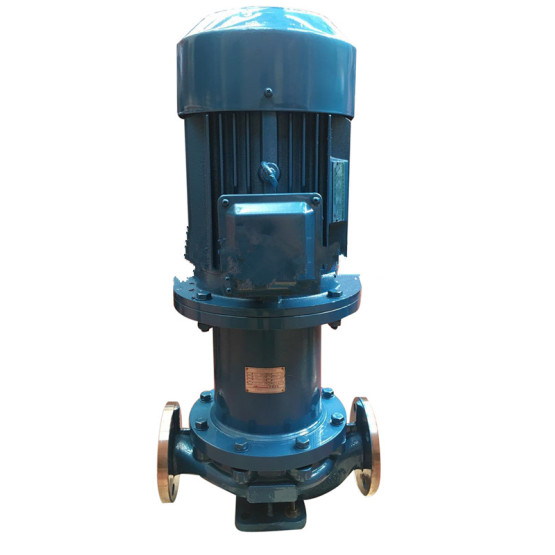

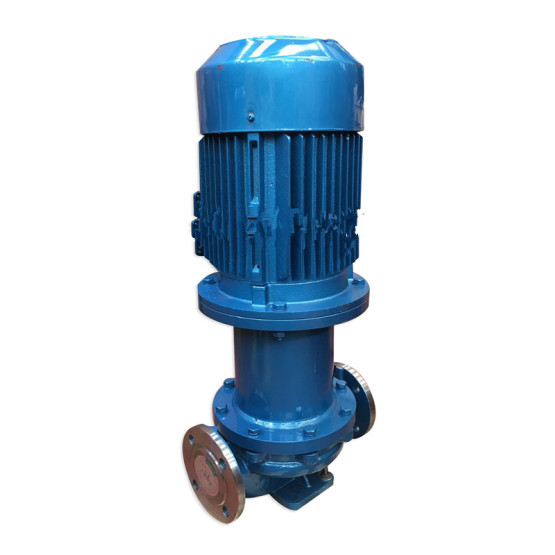

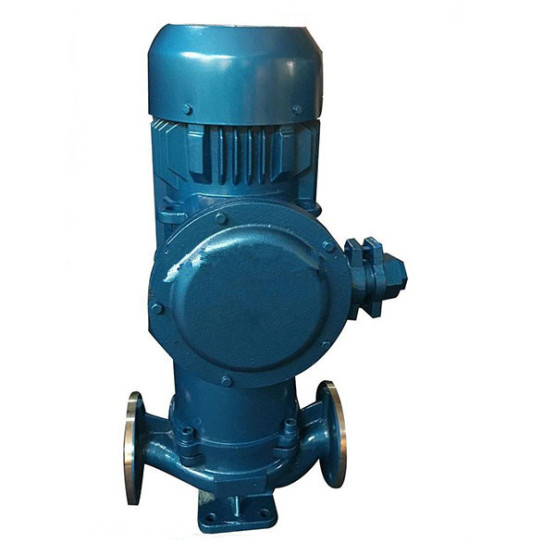

CQB-L vertical magnetic pipeline pump overview

The magnetic pipeline centrifugal pump is a new type of pipeline pump developed by the unit based on more than ten years of experience in designing and manufacturing horizontal magnetic pump. It has the characteristics of ISG-type pipeline centrifugal pump and the advantages of magnetic chemical pump. It is a new generation. The leak-free pipe centrifugal pump.

CQB-L vertical magnetic pipeline pump features

1. Carry out non-leakage operation, which can transport flammable, explosive, highly toxic and corrosive media;

2, the material is excellent, the pump body, impeller, isolation sleeve and other over-current parts are made of high quality stainless steel;

3. The bushing adopts high wear-resistant silicon carbide and tungsten carbide. The sliding bearing adopts carbon stone M106K, and a lubricating oil groove is provided to effectively ensure the service life of the pump;

4, vertical installation, compact structure, small footprint;

5, the vibration is small, the noise is low, and the operation is particularly stable;

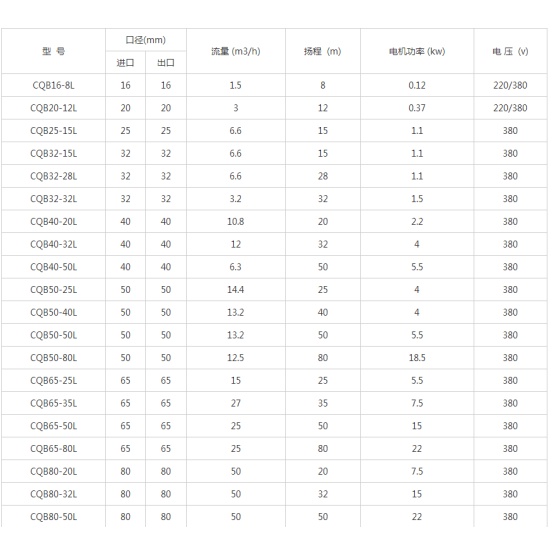

6. Most of the parts of the pump are interchanged with CQB series magnetic pumps. The performance of the pump is the same as that of CQB series; the flow rate is 3.2-100m 3 /h; the lift is 20-80m; the power is 0.75-75Kw
