10 Inch Centrifugal Horizontal Slurry Pump
| Payment Type: | L/C,T/T,Western Union |
|---|---|
| Incoterm: | FOB,CFR,CIF |
| Min. Order: | 1 Set/Sets |
| Delivery Time: | 20 Days |
Basic Info
Model No.: BM BH
Working Pressure: High Pressure Pump
Position Of Pump Shaft: Horizontal Pump
Impeller: Closed
Material: A05 A07 A49
Origin: Shijiazhuang
Drive Type:: CV, DC, Zv, Cr
Color: As Your Requirement
Package: In Woodenc Case Or As Your Requirement
Power: Electric Or Diesel
Model No.: BM BH
Additional Info
Packaging: In Wooden case or as your requirement
Productivity: 300sets/month
Brand: Boda
Transportation: Ocean,Land,Air
Place of Origin: Shijiazhuang
Certificate: ISO
Product Description
Pump Application
The BH series pumps apply to Alumina,Copper mining,Iron ore,Gas oil,Coal ,Electric industry,Phosphate,Bauxite,Gold,Potash, Wolfram,Water sewerage utilities,Sugar,Tobacco,Chemical fertilizer.
Pump Feature
- High head & High pressure & High Efficiency
- Anti-corrosive and wear resistant wet end parts
- Long working life
- Easy to maintain
- Exchanged with other pumps
Production Introduction
Pump Description

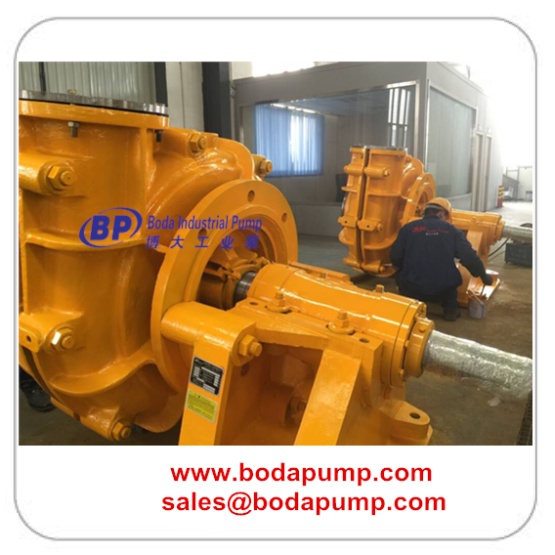

Type BH pump are cantilevered,horizontal,centrifugal slurry pumps. They are suitable for delivering low density slurry for metallurgical,mining,coal and building material departments. The shaft seal adopts both gland seal and centrifugal seal. And it could operate in high speed with small volumes to save floor area. The frame plates have changeable,wear-resistant metal liners rubber liners and the impeller are made of wear-resistant metal or rubber.
Material: The wet parts material of BH pumps could be Cr27,Cr28,CD4MCu,PU, rubber liner material, High chrome alloy material could be wear resistant and corrosive resistant.
Seal: Gland packing seal, Mechanical seal, expeller seal.
Horizontal Abrasion & Corrosion Resistant Slurry Pump Performance Table:
|
Type
|
Allowable Mating Max.Power(kw)
|
Clear Water Performance
|
Impeller
|
||||||
|
Capacity Q
|
Head
H
(m) |
Speed
n
(r/min) |
Max EFF η(%)
|
NPSH)
(m) |
No of Vanes
|
Impel Dia(mm)
|
|||
|
(m3/h)
|
(L/S)
|
||||||||
|
1.5/1B-BH
|
15
|
12.6-28.8
|
3.5-8
|
6-68
|
1200-3800
|
40
|
2-4
|
5
|
152
|
|
2/1.5B-BH
|
15
|
32.4-72
|
9-20
|
6-58
|
1200-3200
|
45
|
3.5-8
|
5
|
184
|
|
3/2C-BH
|
30
|
39.6-86.4
|
11-24
|
12-64
|
1300-2700
|
55
|
4-6
|
5
|
214
|
|
4/3C-BH
|
30
|
86.4-198
|
24-55
|
9-52
|
1000-2200
|
71
|
4-6
|
5
|
245
|
|
4/3D-BH
|
60
|
||||||||
|
6/4D-BH
|
60
|
162-360
|
45-100
|
12-56
|
800-1550
|
65
|
5-8
|
5
|
365
|
|
6/4E-BH
|
120
|
||||||||
|
6/4D-BH
|
60
|
180-396
|
50-110
|
7-61
|
600-1600
|
55
|
3-8
|
4
|
372
|
|
6/4E-BH
|
120
|
||||||||
|
8/6E-BH
|
120
|
360-828
|
100-230
|
10-61
|
500-1140
|
72
|
2-9
|
5
|
510
|
|
8/6R-BH
|
300
|
||||||||
|
8/6E-BH
|
120
|
360-828
|
100-230
|
7-52
|
400-1000
|
70
|
2.5-6
|
4
|
536
|
|
8/6R-BH
|
300
|
360-828
|
100-230
|
7-52
|
400-1000
|
70
|
2.5-6
|
4
|
536
|
|
10/8ST-BH
|
560
|
612-1368
|
170-380
|
11-61
|
400-850
|
71
|
4-10
|
5
|
686
|
|
12/10ST-BH
|
560
|
936-1980
|
260-550
|
7-68
|
300-800
|
82
|
6
|
5
|
762
|
|
14/12ST-BH
|
560
|
1260-2772
|
350-770
|
13-63
|
300-600
|
77
|
3-10
|
5
|
965
|
|
16/14ST-BH
|
560
|
1368-3060
|
380-850
|
11-63
|
250-550
|
79
|
4-10
|
5
|
1067
|
|
16/14TU-BH
|
1200
|
||||||||
|
10/8E-BM
|
120
|
540-1440
|
150-400
|
14-60
|
600-1100
|
73
|
4-10
|
5
|
549
|
* Dimensionally Interchangeable with:
BM ≈Warman®M
BH≈Warman®AH
Horizontal Abrasion & Corrosion Resistant Slurry Pump Structure:
Horizontal Abrasion & Corrosion Resistant Slurry Pump Application:
