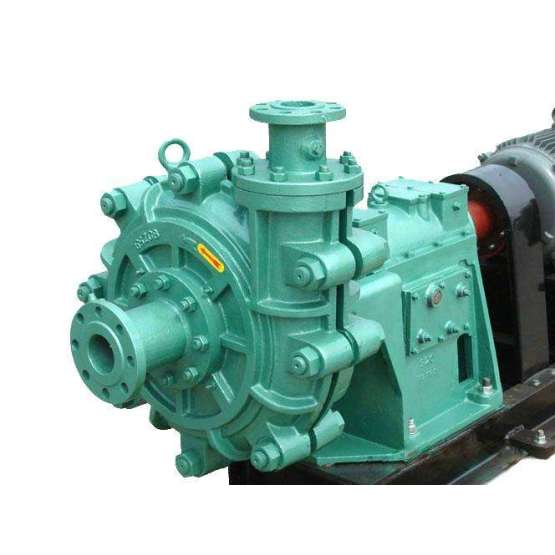

ZGB(P) series Slurry Pump facotry
Model No.: BODA-005
Impeller Number: Single-Stage Pump
Working Pressure: High Pressure Pump
Influent Type of Impeller: Single Suction Pump
Position of Pump Shaft: Horizontal Pump
Pump Casing Combined: Horizontal Split Pumps
Mounting Height: Since Irrigation Centrifugal Pumps
Product Name: ZJ Series Slurry Pump For Mining Metallu
Packaging: wooden box
Place of Origin: china
Supply Ability: 500
HS Code: 4101201190
we are Shijiazhuang Boda Industrial Pump Co.,Ltd from china .
we mainly operates pump & pump driven equipments, pump parts & resistance wearing castings, others hydraulic machinery, accessories etc. The products contain slurry pumps, API 610 petrol-oil & chemical pumps, waters pumps which have tens of series , more than one hundred varieties , thousands of models. They are widely used in mining, metallurgy, coal mining, electric power, petroleum, chemical , water supply and drainage industry and so on. Our company have senior engineers and classic technicians, have one slurry pump factory in shijiazhuang city , one API610 pump factory in Shenyang city, one chemical pumps factory in Dalian city .
if you have any needing on pump ,or have any needing on pump Components ,please feel free contact with us . we like to offer your our best price and best service for you .
Looking forward to cooperate with you .
In order to meet the requirement on the development mining, metallurgy, electric , mature experiences for many years on research& manufacture and application of slurry pump. meanwhile based on technology introduction. We development the new generation production with large capacity ,high head ,multi-stage mainly .the pumps of this type also may be installed in multistage series.
1. advanced hydraulic performance, CAD modern design , high efficiency and lower abrasion rate
2. wide passage, non-clogging and good performance of NPSH .
3. expeller seal combined with packing seal and mechanical seal have be adopted to guarantee the slurry from leakage.
4. the reliability design ensures long MTBF(mean time between events)
5. the metric bearing with oil lubrication, reasonable lubricating and cooling systems ensure the bearing to be operated under the lower temperature.
6.the materials of wet parts had the good performance of anti-wearing and anti-corrosion, the pump can be used for seawater ash-removing to prevent it from the corrosion of sweater, salt and mist ,and electrochemical corrosion.
7.the pump can be operated in series with multi-stage within permissible pressure . the permissible maximum working pressure is 3.6 Mpa .
The series of pump has the advantage of reasonable construction , high efficiency, reliable operation and easy maintenance. It can be widely used for handling the mixture contained of abrasive and corrosive solids in electric power, metallurgy ,mine, coal, constructional material and chemical industry departments especial for removing ash and sludge in electric power station.
