WQK/QG belt cutting device sewage pump

Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
Min. Order: 1 Set/Sets
Delivery Time: 15 Days

Basic Info

Model No.: BODA-102

Impeller Number: Single-Stage Pump

Working Pressure: High Pressure Pump

Influent Type of Impeller: Single Suction Pump

Position of Pump Shaft: Horizontal Pump

Pump Casing Combined: Verticaljoint Surface Pump

Mounting Height: Since Irrigation Centrifugal Pumps

Impeller: Open

Usage: Pump

Product Name: S Series Double Suction Pump

Additional Info

Packaging: wooden box

Productivity: 500

Brand: BODA

Transportation: Ocean,Land,Air

Place of Origin: china

Supply Ability: 500

Certificate: ISO9901

HS Code: 4101201190

Port: Tianjin,Qingdao,Shanghai

Product Description

WQ type diving non-blocking sewage pump 3

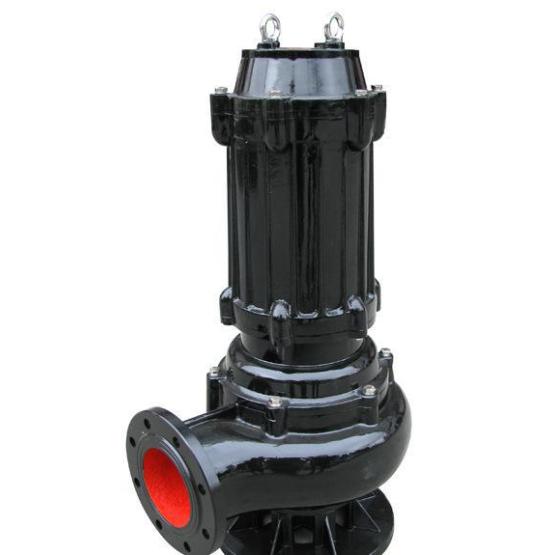

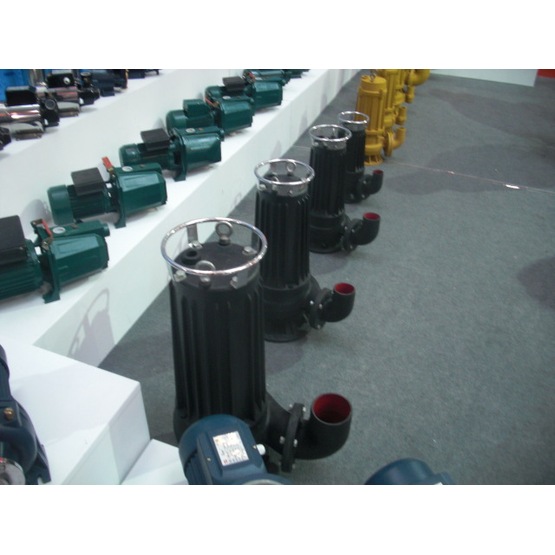

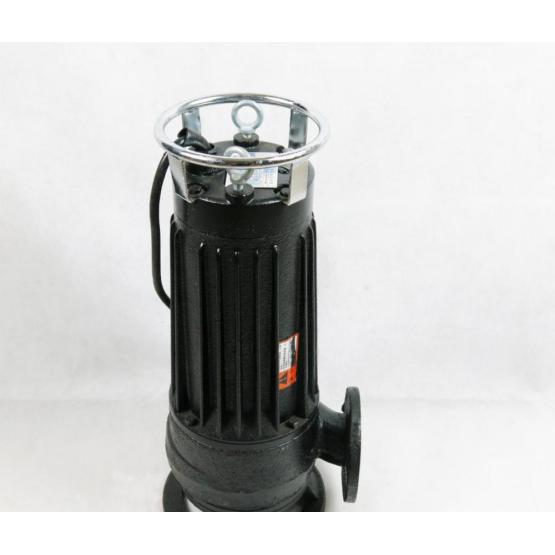

WQK/QG belt cutting device sewage pump overview

      WQK/sewage pump with cutting device has strong discharge capacity and good cutting performance. It can cut off long fibers, plastic, paper, belt, cloth strip, straw, rope and other impurities in sewage, and adopt advanced methods. Designed into reasonable hydraulic characteristics, so that the electric pump can run at full lift, excellent combination of dry motor and water pump, so that the total efficiency of the electric pump is the same as the series of ass belt cutting device of West Germany Abs Company, the electric pump adopts High-quality cemented carbide, double-face mechanical seals and skeleton oil seals shall not exceed 1/2 of the height of the motor and the temperature of the pumped dirt shall not exceed 40 °C.

      WQX series sewage sewage submersible sewage pump is mainly used for discharging domestic wastewater, sewage, human excrement and solid suspended solids and non-corrosive media containing short fiber paper scraps, wood chips, starch, sediment, ore particles, and pumped liquid. The temperature does not exceed 40 ° C, the density is not more than 1200 kg / m3, the pH value is ~ 9. The electric pump adopts double mechanical seal and rotating impeller. The impeller adopts stainless steel, wear resistance, no clogging, no winding, small volume, compact structure and convenient carrying.

WQK/QG belt cutting device sewage pump scope

WQK/QG belt cutting device sewage pump is mainly used for engineering sewage and domestic sewage.

(1) Used in construction sites, engineering foundation construction, municipal facilities, and waterworks.

(2) Sewage discharge from underground floors such as basements, civil air pits and subways of various high-rise buildings.

(3) Sewage treatment and circulating water transportation for small and medium-sized enterprises.

(4) Slurry slurry pumping from factories and mines such as food, paper, brewing, steel and non-ferrous metals, leather, textile, pharmaceutical, and cement plants.

(5) Chicken farms, pig farms, various aquaculture industries, fish ponds for pumping clear ponds, aeration, septic tanks, etc.

Note: The main performance and data of the wqk belt cutting pump are not the same as the wqk/qg type.

Precautions for use

(1) Before using the electric pump, first check whether the cable is damaged. When the water pump is moved and installed, the iron is pulled or the cable is damaged to avoid the water leakage and the accident. If the cable is hardened, replace the cable immediately. And check the insulation resistance of the electric pump with a megohmmeter (insulation resistance must not be less than 1 megohm)

(2) Make sure that the grounding wire (the ground wire is generally yellow or green or with a grounding mark), and connect the ground wire according to the prescribed procedure. (The grounding wire of our factory is equipped with a grounding mark).

(3) Select a suitable protector (such as leakage protector, air switch, phase-breaking overcurrent protector, etc.) Do not connect directly with the knife switch.

(4) Connect the power cable according to the standard, test the power supply, check whether the electric pump is running normally, and judge whether the steering is correct. If the steering is not correct, replace any two of the three power cables. The time cannot exceed half a minute).

(5) Install the water outlet joint and the water outlet hose (or iron pipe), and fasten the rope on the electric pump handle (must not use the cable instead of the sling). Put the electric pump into the pumped liquid and connect it. Power, ready to use.

(6) In order to ensure personal safety, it is strictly forbidden to install the sewage operation (such as moving or checking, troubleshooting, etc.) in the vicinity of the electric pump during the power-on work of the electric pump to contact the electric pump to prevent accidents caused by electric leakage of the electric pump!

(7) It is forbidden to expose the water pump to the water surface for a long time (or short-time operation). The [on" and [stop" of the electric pump should not be excessively frequent to prevent the motor from overheating.

(8) Long-term pumping of high-sand liquids will cause excessive wear on the over-flow components of the WQK/QG belt cutting device. It is recommended to use the cyclone sewage sewage submersible pump products.

(9) If it is found that the WQK/QG belt cutting device sewage pump is running, there is abnormal phenomenon such as non-rotation, protector tripping, fuse blown, etc., immediately cut off the power supply, check the power protector wiring, etc. If there is any problem, if these external When the device is normal, it may be that the electric pump is faulty. At this time, it should not be used to avoid accidents!
