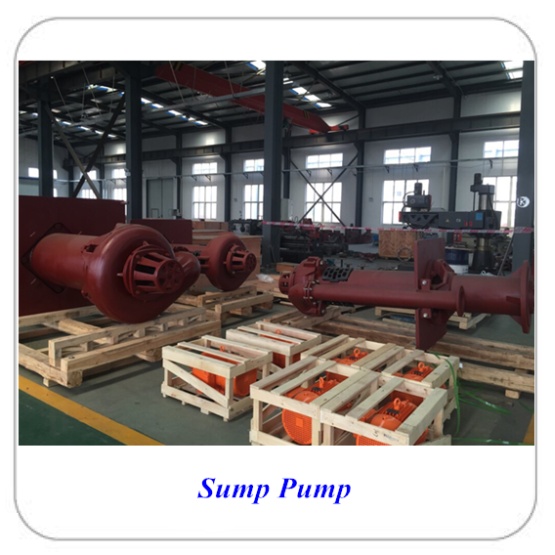

Vertical Sump Slurry Pump

Payment Type: L/C,T/T,Western Union
Incoterm: FOB,CFR,CIF
Min. Order: 1 Set/Sets
Delivery Time: 20 Days

Basic Info


Model No.: BV(R)

Origin: Shijiazhuang

Color: As Your Requirement

Package: In Woodenc Case Or As Your Requirement

Theory:: Centrifugal Pump

Structure:: Single-stage Pump

Power:: Electric

OEM Service:: Yes

Application:: Metallurgy, Mine, Power Plants, Mining

Material: High Chrome Alloy A05

Model No.: BV(R)


Additional Info


Packaging: In Wooden case or as your requirement

Productivity: 200sets/month

Brand: Boda

Transportation: Ocean,Land,Air

Place of Origin: Shijiazhuang

Certificate: ISO


Product Description

Vertical Sump Slurry Pump Description:

BV pumps are vertical, centrifugal slurry pumps submerged in sump to work. They are designed for delivering abrasive, large particle and high density slurries. These pumps have no need of any shaft seal and sealing water. They can also be operated normally for insufficient suction duties. Wet parts of type BV pump are made of abrasion-resistant metal. All parts of type BVR pump immersed in liquid are lined with rubber outer liner. They are suited to transport non-edge angle abrasive slurry.


Vertical Sump Slurry Pump Typical Applications---
Sump drainage washdown
Floor drainage
Mill sumps
Carbon transfer
Monitoring
Magnetite mixing

Vertical Sump Slurry Pump Structure:

SP SPR VERTICAL SLURRY PUMP

SP SUMP PUMP INLET


BV SUMP PUMP PERFORMANCE PARAMETERS


Type

Allowable Mating Max. Power(Kw)

Range  Of  Performance

Impeller

Capacity/Q

Head/m

Speed/rpm

Max Efficiency/%

No. of Vanes

Impeller Diameter/mm

m³/hr

L/S

40BV

15

19.44-43.2

5.4-12

4.5-28.5

1000-2200

40

5

188

65BV

30

23.4-111

6.5-30.8

5-29.5

700-1500

50

5

280

100BV

75

54-289

15-80.3

5-35

500-1200

56

5

370

150BV

110

108-479.16

30-133.1

8.5-40

500-1000

52

5

450

200BV

110

189-891

152.5-247.5

6.5-37

400-850

64

5

520

250BV

200

261-1089

72.5-302.5

7.5-33.5

400-750

60

5

575

300BV

200

288-1267

80-352

6.5-33

350-700

50

5

610



BVR SUMP PUMP PERFORMANCE PARAMETERS


Type

Allowable Mating Max. Power(Kw)

Range  Of  Performance

Impeller

Capacity/Q

Head/m

Speed/rpm

Max Efficiency/%

No. of Vanes

Impeller Diameter/mm

m³/hr

L/S

40BVR

15

17.28-39.6

4.8-11

4-26

1000-2200

40

5

188

65BVR

30

22.5-105

6.25-29.15

5.5-30.5

700-1500

51

5

280

100BVR

75

64.8-285

18-79.2

7.5-36

600-1200

62

5

370




Vertical Sump Slurry Pump Application:

Sump Pump Application

horizontal slurry pump application

slurry pump application

pump application

sump slurry pump
