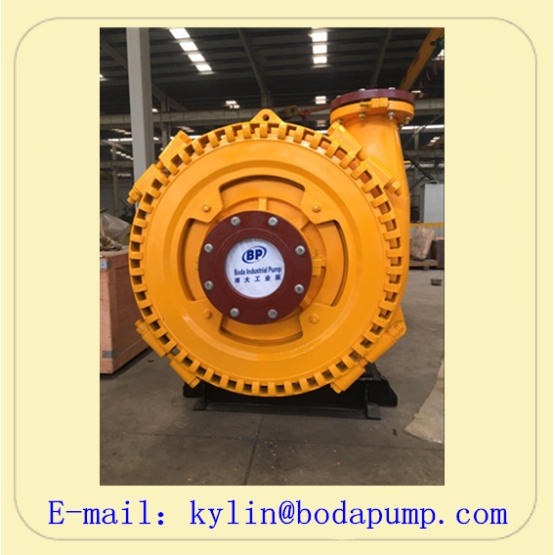

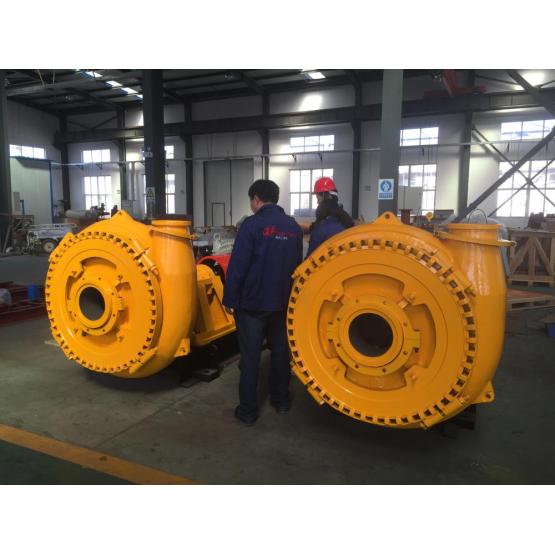

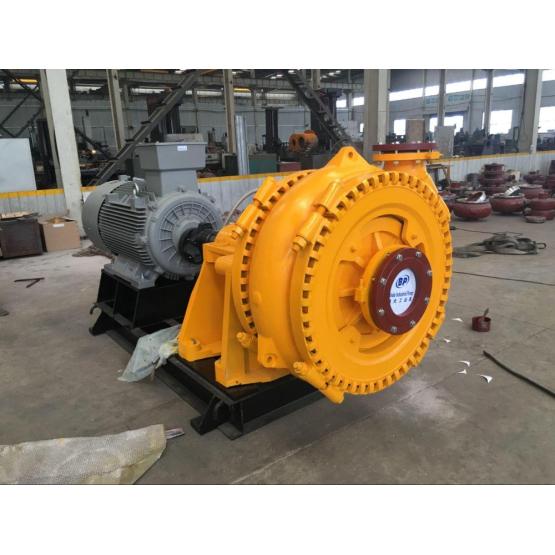

Tunnelling Application Gravel Pump

Payment Type: L/C,T/T,Western Union
Incoterm: FOB,CFR,CIF
Min. Order: 1 Set/Sets
Delivery Time: 20 Days

Basic Info


Model No.: BGH

Working Pressure: High Pressure Pump

Position Of Pump Shaft: Horizontal Pump

Impeller: Closed

Material: A05 A07 A49

Origin: Shijiazhuang

Drive Type:: CV, DC, Zv, Cr

Color: As Your Requirement

Package: In Woodenc Case Or As Your Requirement

Power: Electric Or Diesel

Model No.: BM BH


Additional Info


Packaging: In Wooden case or as your requirement

Productivity: 300sets/month

Brand: Boda

Transportation: Ocean,Land,Air

Place of Origin: Shijiazhuang

Supply Ability: 100 sets/ month

Certificate: ISO

HS Code: 8413709990

Port: Tianjin,SHANGHAI,As Your Request


Product Description

Tunnelling Application Gravel Pump /BGH / Tunnelling Application Gravel Pump / Tunnelling Application Gravel Pump / Horizontal Centrigufal Tunnelling Application Gr / Slurry Gravel Pump

200TZM Diesel engine Sand dredge Pump

Product description:
Gravel pumps are designed for continously handling the most difficult hype BG(H) gigher abrasive slurries which contain too big solids to be pumped by common pump. They are suitable for delivering slurries in Mining, Explosive sludge in metal melting. Dredging in dredger and course of rivers, and other fields. Type BGH pumps are of high head ones.
Construction of this pump is of single casing connected by means of clamp bands and wide wet passage. The wet parts are made of Ni-hard and high chromium abrasion-resistance alloys. The discharge direction of pump can be oriented in any direction of 360 degree. This type of pump possesses the advantages of easy installation and operation, good performance of NPSH and abrasion-resistance.
-Single casing
-Wide wet-passage
-Wear resistant metal wet end part, long service life
-Discharge direction can be oriented at any degrees
-Good performance of NPSH


BG(H)  Gravel Sand Slurry Pump Performance Table



Pump
Model

Allowable
Max. Power

Clear Water Performance



Capacity Q

Head
H(m)

Speed
n(r/min)

Max.Eff.
η%

NPSH
(m)

Impeller
Dia.


m 3 /h

l/s


100BG-D

60

36-250

10-70

5-52

600-1400

58

2.5-3.5

378

150BG-E
120

126-576

35-160

6-45

800-1400

60

3-4.5

378


200BG-S

560

216-936

60-260

8-52

500-1000

65

3-7.5

533

200BGH-S
560

180-1440

50-400

24-80

500-950

72

2.5-5

711

250BG-G
600

360-1440

100-400

10-60

400-850

65

1.5-4.5

667


250BGH-G

600

288-2808

80-780

16-80

350-700

73

2-10

950


300BG-G

600

576-3024

160-840

8-70

300-700

68

2-8

864

350BG-G
600

720-3600

200-1000

18-44

300-500

70

3-9

1016

350BGH-TU
1200

324-3600

90-1000

26-70

300-500

72

3-6

1270
