Basic Info

Model No.: BODA-067

Impeller Number: Single-Stage Pump

Working Pressure: High Pressure Pump

Influent Type of Impeller: Single Suction Pump

Position of Pump Shaft: Horizontal Pump

Pump Casing Combined: Horizontal Split Pumps

Mounting Height: Since Irrigation Centrifugal Pumps

Impeller: Open

Usage: Pumps

Product Name: S Series Double Suction Pump

Additional Info

Packaging: wooden box

Productivity: 500

Brand: BODA

Transportation: Ocean,Land,Air

Place of Origin: china

Supply Ability: 500

Certificate: ISO9901

HS Code: 4101201190

Port: Tianjin,Qingdao,Shanghai

Product Description

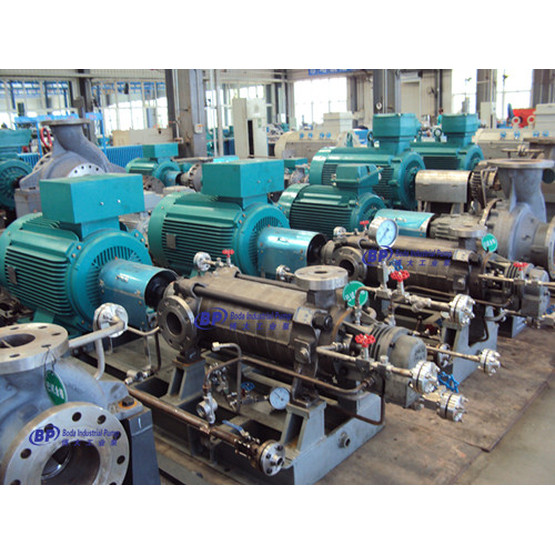

SMC Horizontal Multistage Pump

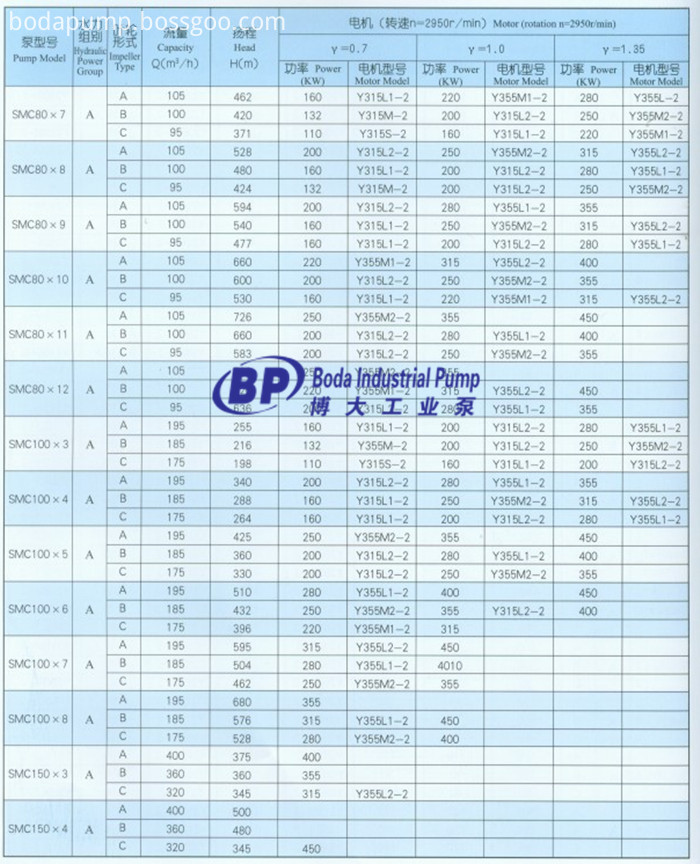

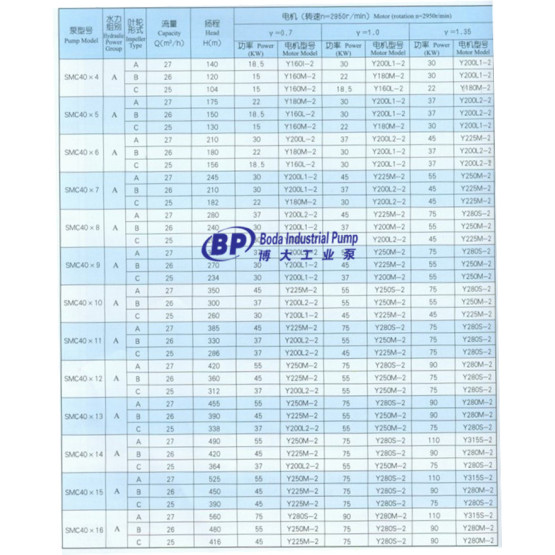

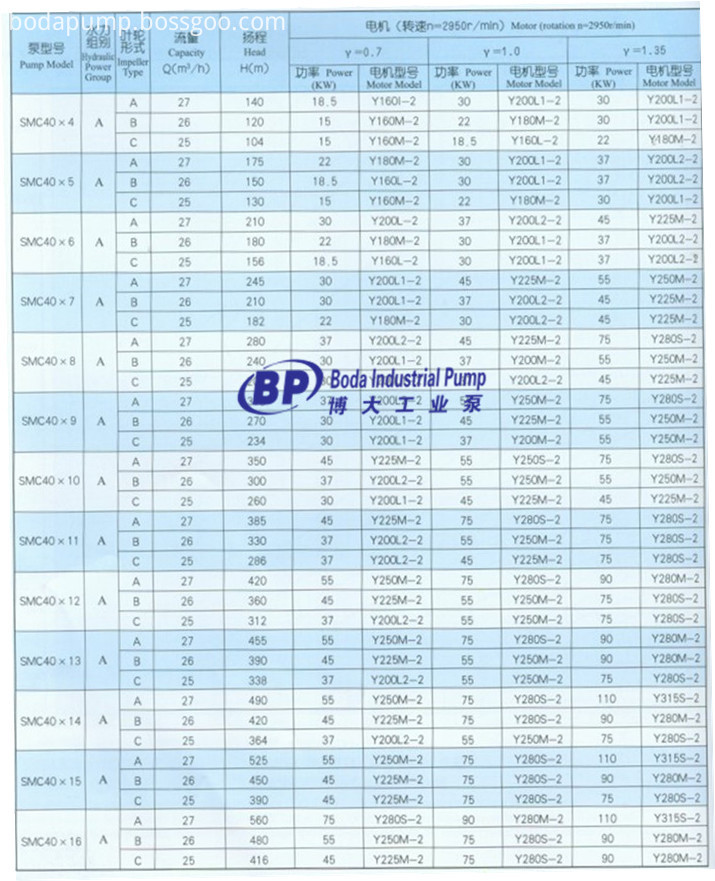

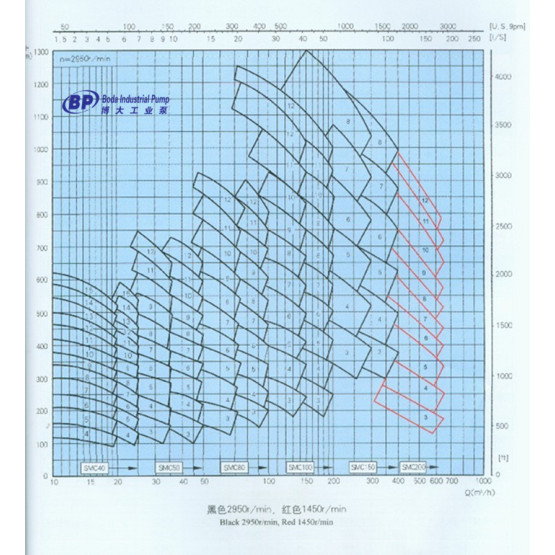

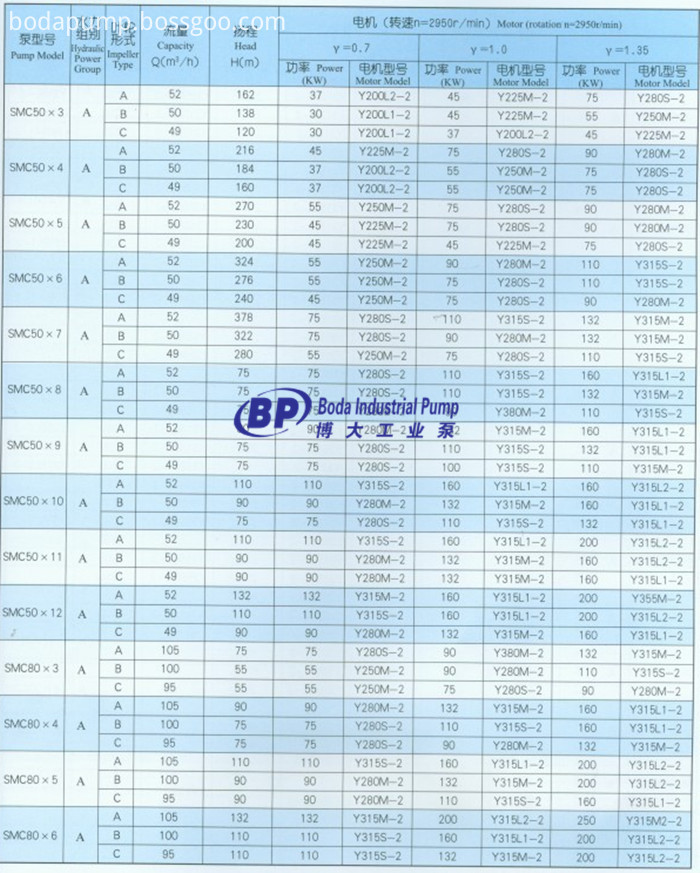

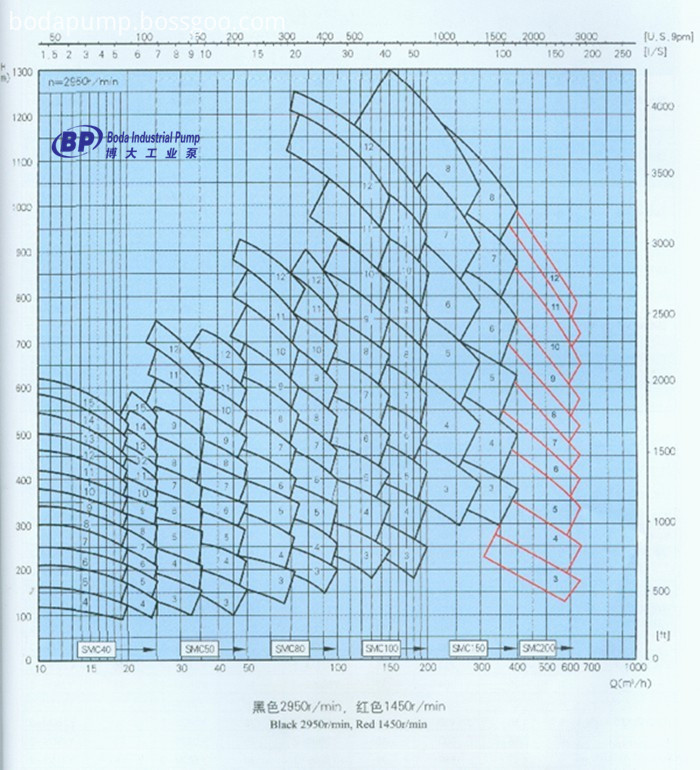

Performance

Capacity: 4~600m3/h

Head:100~1800m

Pressure:1~18MPa

Temperature:-80℃~350℃

General Introduction:

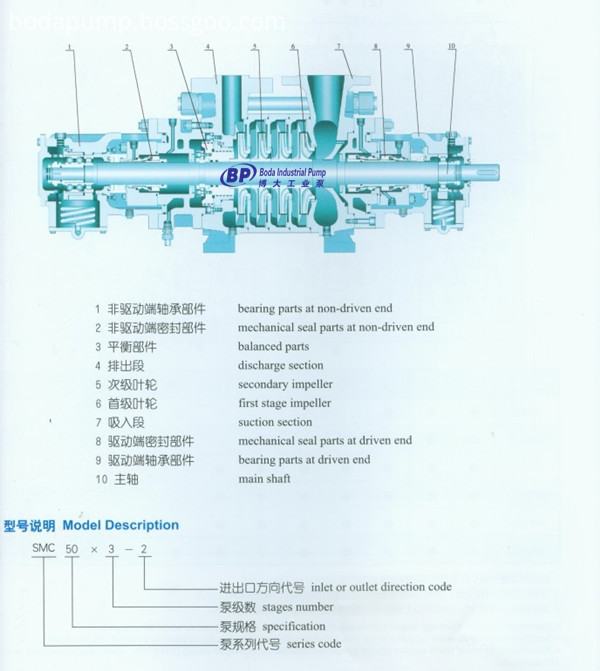

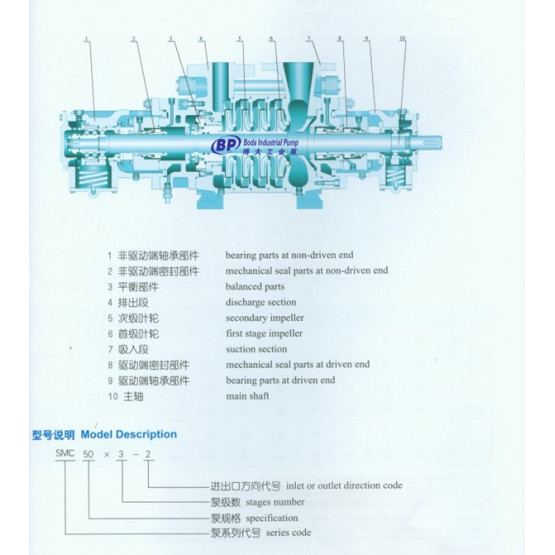

SMC is horizontal multistage pump in high machining precision, particular balanced structure, optional assembled mechanical seal and standardized API610 mechanical seal cleaning and cooling methods.

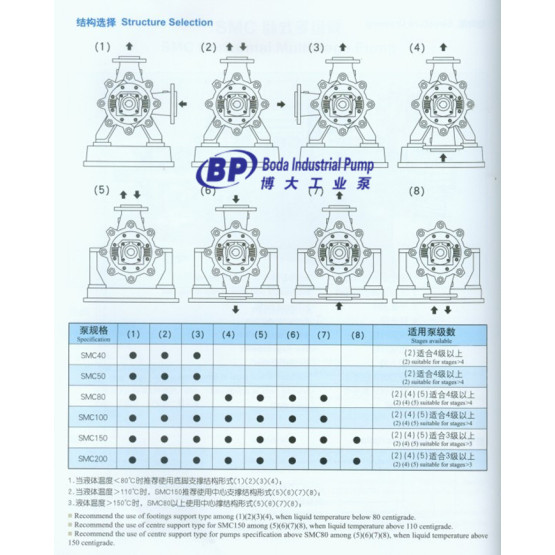

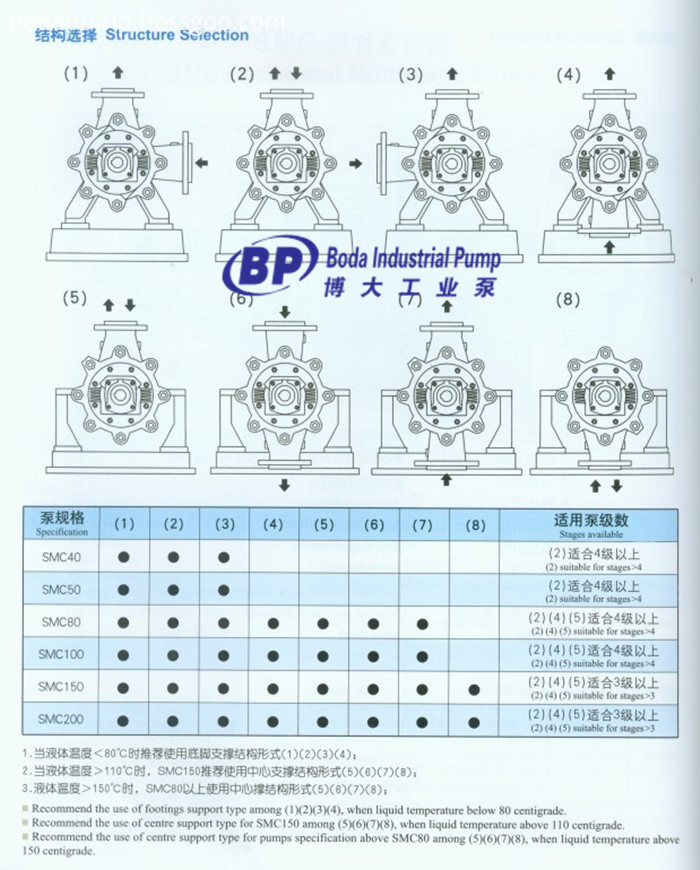

According to different medium temperature and users' requirements, footings or centre support type is available and the inlet and outlet can be arranged in accordance with users requirements.

The first stage impeller is of suction type which can improve performance of pump caviation-resistance effectively.SMC runs clockwise looking from the driven end.

Application:

SMC Horizontal Multistage Pump can convey all kinds of clean or little-polluted combustible, explosive, neutral and strong corrosive medium, mainly used in cooling or heating systems, boilers water supply and condensated water, descaling and general industry applications and so on.
