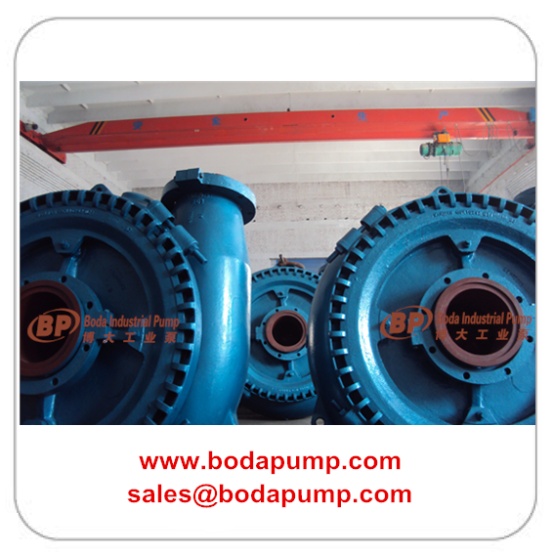

Single Casing Tunnel Shield Gravel Pump
| Payment Type: | L/C,T/T,Western Union |
|---|---|
| Incoterm: | FOB,CFR,CIF |
| Min. Order: | 1 Set/Sets |
| Delivery Time: | 20 Days |
Basic Info
Model No.: TZG(H)
Working Pressure: High Pressure Pump
Position Of Pump Shaft: Horizontal Pump
Impeller: Closed
Material: A05 A07 A49
Origin: Shijiazhuang
Drive Type:: CV, DC, Zv, Cr
Color: As Your Requirement
Package: In Woodenc Case Or As Your Requirement
Power: Electric Or Diesel
Product Name: Wide Passage Centrifugal Sand Gravel Pump
Additional Info
Packaging: In Wooden case or as your requirement
Productivity: 300sets/month
Brand: Boda
Transportation: Ocean,Land,Air
Place of Origin: Shijiazhuang
Certificate: ISO
Product Description
1, Our sand pumps machine are the series products introduced from international high technique. All our spare parts can be replaced with international parts.
2, Construction of this pump is of single casing connected by means of clamp bands and wide wet-passage. The wet-parts are made of Nickel hard and high chromium abrasion-resistance alloys. They are suitable for delivering slurries in tunnel shield and pipe-jacking.
3, Boda sand pumps machine are designed for continuously handling the most difficult higher abrasive slurries which contain too big solids to be pumps by a common slurry pump. They are suitable for delivering slurries in Mining, Explosive-sludge in metal melting, Dredging in dredger and course of rivers, and other fields. Type TZGH pumps are of high-head ones.
4, The discharge direction of pump can be oriented in any direction of 360°.
Features:
1, Bearing assembly – a large diameter shaft with short overhang minimizes deflection and contributes to long bearing life.
2, Casing – single casing be made of high-chrome alloy, provide long wear time.
3, Impeller – 3 vanes impeller, processing larger solids easily. The impeller and casing are threaded connection, not need nuts. High efficiency and high head designs are also available.
4, Cover plate – wear is reduced and maintenance simplified by the use of tapered mating faces to allow positive accurate alignment during assembly and simple removal.
5, One-piece frame – a very robust one-piece frame cradles the cartridge type bearing and shaft assembly. An external impeller adjustment mechanism is provided for easy adjustment of impeller clearance
6, Material of wear parts-High chrome alloy white iron with good anti-wear performance.
Gravel Slurry Pump Structure:
Gravel Slurry Pump Performance Table:
Type
Capacity
(l/s)
Head
(m)
Speed
(r/min)
Efficiency
(%)
NPSHr
(m)
Inlet Size
(mm)
Outlet Size
(mm)
Max.Diameter of flowed particle (mm)
100TZG-PD
10-70
3.5-51
600-1400
30-50
2.5-3.5
150
100
82
150TZG-PE
38-160
10-48
800-1400
50-60
3-4.5
200
150
127
200TZG-PS
60-272
13-50
500-1000
45-65
3-7.5
250
200
178
200TZGH-PS
100-360
28-80
500-950
60-72
2-5
250
200
180
250TZG-PF
100-420
11-58
400-850
50-70
2-4.5
300
250
220
250TZGH-PG
170-620
28-78
350-700
60-73
2-8
300
250
210
300TZG-PG
140-880
6-66
300-700
60-68
2-8
350
300
241
400TZG-PT
240-1060
9-48
250-500
60-72
3-6
450
400
254
* Dimensionally Interchangeable with:
TZG(H) ≈Warman®G(H)
Application:
