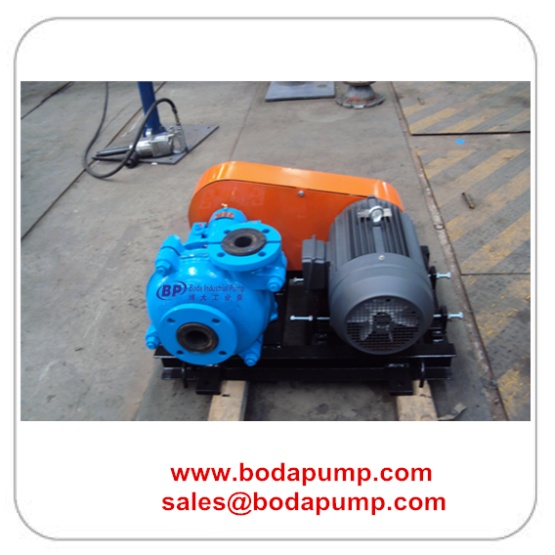

Rubber Liner Slurry Pump with Motor

Payment Type: L/C,T/T,Western Union
Incoterm: FOB,CFR,CIF
Min. Order: 1 Set/Sets
Delivery Time: 20 Days

Basic Info


Model No.: BHR

Working Pressure: High Pressure Pump

Position Of Pump Shaft: Horizontal Pump

Impeller: Closed

Origin: Shijiazhuang

Drive Type:: CV, DC, Zv, Cr

Color: As Your Requirement

Package: In Woodenc Case Or As Your Requirement

Power: Electric Or Diesel

Model No.: BHR

Material: Natural Rubber R55


Additional Info


Packaging: In Wooden case or as your requirement

Productivity: 300sets/month

Brand: Boda

Transportation: Ocean,Land,Air

Place of Origin: Shijiazhuang

Certificate: ISO


Product Description

Rubber Lined Slurry Pump:

1. Slurry pumps are cantilevered, horizontal, centrifugal  pumps. They are designed for the handing highly abrasive, high density slurries in the metallurgical, mining, coal, power, building material and other industrial department ect.
2.The pumps of this type also may be installed in multistage series. The pump of this type also may be installed in multistage series.
3. The frame plates for  pumps have replaceable wear-resistant metal liner or rubber liners. The impellers are made of wear-resistant metal or rubber. The frame plate liner and impeller for BHH pump are adoptable of wear-resistant metal only.
4. The discharge branch can be positioned at intervals of 45 degrees by request and oriented to any eight positions to suit installations and applications.
5. There are the drive types, such as V belt drive, gear reducer drive, fluid coupling drive, frequency conversion drive devices for the slurry pump.


Drive types:
V belt drive,
gear reducer drive,
coupling drive,
frequency conversion drive devices

Advantage:
Wide performance,
good NPSH and high efficiency.
The pump of this type may be installed in multistage series to meet the delivery for long distance


Application:
a. Slurry pump is widely used for transporting slurries with high ablation or high density.
b. Widely used for mining.
c. Widely used for metallurgy.
d. Widely used for building materials.


Rubber Lined Slurry Pump Performance Table:


Pump Model
Allowable Max. Power(kw)
Clear Water Performance
capacity Q
Head H(m)
speed n(r/min)
Max.eff. η%
NPSH (m)
Impeller Dia(mm)
m3/h
l/s
1.5/1B-BHR
15
10.8-25.2
3-7
7-52
1400-3400
35
2/1.5B-BHR
15
25.2-54
7-15
5.5-41
1000-2600
50
2.5-5.5
178
3/2C-BHR
30
36-75.4
10-21
13-39
1300-2100
2-4
213
4/3C-BHR
30
79.2-180
22-50
5-34.5
800-1800
59
3-5
245
4/3D-BHR
60
6/4D-BHR
60
144-324
40-90
12-45
800-1350
65
3-5
365
6/4E-BHR
120
8/6E-BHR
120
324-720
90-200
7-49
400-1000
65
5-10
510
8/6R-BHR
300
10/8ST-BHR
560
540-1188
150-330
12-50
400-750
75
4-12
12/10ST-BHR
560
720-1620
200-450
7-45
300-650
80
2.5-7.5
14/12ST-BHR
560
1152-2520
320-700
13-14
300-500
79
3-8
16/14TU-BHR
1200
1368-3060
380-850
11-63
250-550
79
4-10
1067


Dimensionally Interchangeable with:

BHR ≈Warman®AHR


slurry puump rubber parts

slurry pump structure

slurry pump structure description



Rubber Lined Slurry Pump Structure:

slurry pump elastomer parts


packing seal


slurry pump expeller assembly

bearing assembly



Rubber Lined Slurry Pump Application:

slurry pump application 1

slurry pump  application in series

heavy duty slurry pump

slurry pump application in Aluminum plant

slurry pump application




rubber slurry pump
