Qxs Middle Opening Pump

Payment Type: L/C,T/T,Western Union
Incoterm: FOB,CFR,CIF
Min. Order: 1 Set/Sets
Delivery Time: 20 Days

Basic Info

Model No.: QXS

Working Pressure: High Pressure Pump

Position Of Pump Shaft: Horizontal Pump

Impeller: Closed

Origin: Shijiazhuang

Color: As Your Requirement

Package: In Woodenc Case Or As Your Requirement

Power: Electric Or Diesel

Material: UHMW-PE Lining

Uage: High Corrosion Liquid With Particles

Model No.: UHB-ZK

Additional Info

Packaging: In Wooden case or as your requirement

Productivity: 300sets/month

Brand: Boda

Transportation: Ocean,Land,Air

Place of Origin: Shijiazhuang

Certificate: ISO

Port: Xingang,Shanghai,Ruili

Product Description

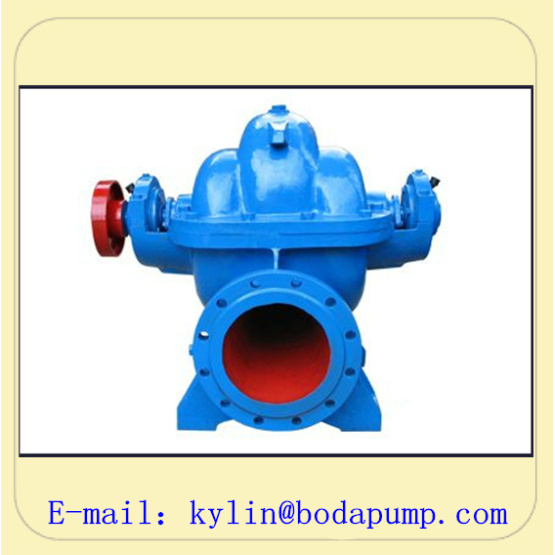

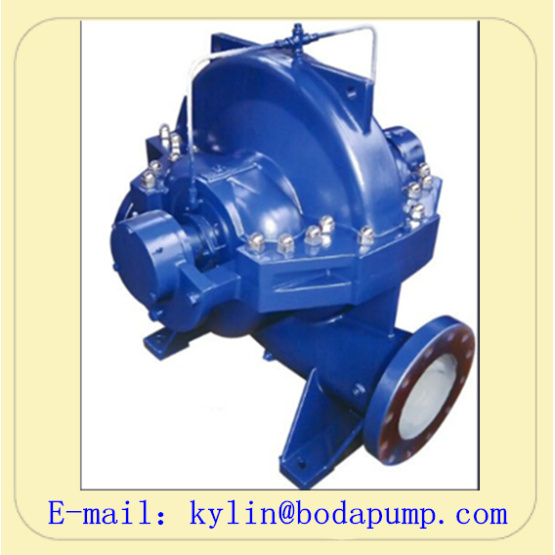

Double Suction Horizontal split-Casing type hot water circulation pump

Detailed Product Description:
a. Horizontal single-stage double-suction centrifugal pump
b. Made of cast iron
c. High efficiency
d. Easy maintenance
e. ISO9001
f. OEM Service
a. Split case double suction horizontal pump is suitable for mine.
b. Suitable for transporting pure water or liquids with physical and chemical properties similar to water.
c. Suitable for agriculture irrigation.
d. Suitable for water supply and drainage in factory.
e. Suitable for power station.
Product Description:
QXS series submersible sand pump is single stage centrifugal pump which is specially designed to mine underwater sand and gravel in river, lake, sea as well as undersea mining. The structure design and materials of the pump have been considered thoughtfully to make the pump operate under water permanently, reliably and effectively. It has the characters of corrosion-resistance, wearing-resistance, high ability of passing solid, wide-range of submersible depth. The maximum value of submersible depth is up to 150m, and its function won't be impacted as the depth varied. Just putting the pump on the bottom of sea or river, it can work at any angle of placement. Therefore, it is ideal and efficient equipment for sand collection and undersea mining.
Working Conditions:
Inlet Diameter:150-1200mm
Capacity: 112-6460m3/h
Head: 10-140m
Rotation Speed: 970-2950r/min
Power: 22-850kW
13. Installation and location: pump should be used vertically or inclined. Its inlet should be located at the bottom of sea.
Note: If the conditions stated above cannot be satisfied, please connect with us. We shall adopt proper measures while designing in order to ensure that the electric pump set will be working normally in actual conditions.
QXS series submersiblle sand pump is generally made up of cutter head, pump, electric motor, pressure balance device, set support ( selected only when all parts will be combined into one set) and so on. The suction efficiency, operating reliability and practicability of the whole set have been taken into consideration thoroughly while the structure designing. Electric motor, pump and set support fixed into one unit can be used at any position between 0-90°.
1. Pump and Cutter
QXS series submersible sand pump is single-stage centrifugal pump, consists of pump casing, impeller, cutter head etc. Usually, the main material of components which liquid flows through is made from the wear-resistant cast iron of high chrome, and special material will be selected to meet the special requirements according to working conditions. By the cutter head running, the density of suction liquid will be increased and the suction efficiency will be improved as well. As the pump and the motor are coaxial, it makes the axial force of the pump pass on to the motor directly, so the pump can work at any position.
2. Motor and Pressure balance device
QXS series submersible sand pump is usually matched with dredge submersible electric motor made by our company. Usually, the electric motor is supplied with pressure balance device. It can make the outside pressure and inside pressure of the motor balance automatically. The maximum submersible depth of motor can reach 150m. If the actual working condition is over the value, please specifically tell us while ordering.
3. Other complete parts
Other complete parts are mainly composed by set support and electric motor switchgear etc. They can be selected according to the customer's demands.
The start modes include Y-△start, soft start and converter start. We can make it on the customer's demands and motor power.
