QBY stainless steel pneumatic diaphragm pump

Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
Min. Order: 1 Set/Sets
Delivery Time: 15 Days

Basic Info

Model No.: BODA-153

Product Name: S Series Double Suction Pump

Additional Info

Packaging: wooden box

Productivity: 500

Brand: BODA

Transportation: Ocean,Land,Air

Place of Origin: china

Supply Ability: 500

Certificate: ISO9901

HS Code: 4101201190

Port: Tianjin,Qingdao,Shanghai

Product Description

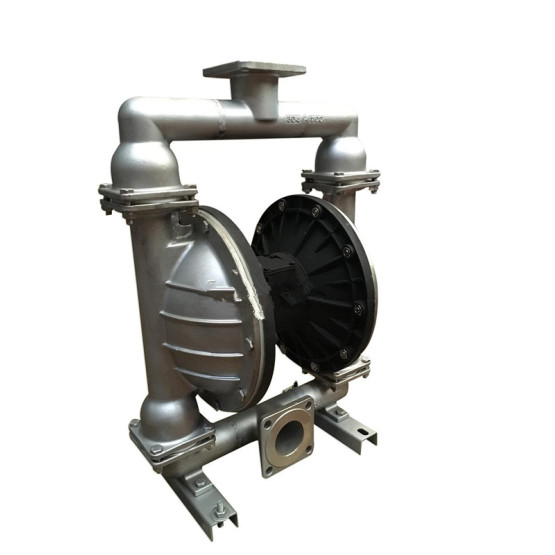

QBY stainless steel pneumatic diaphragm pump 1

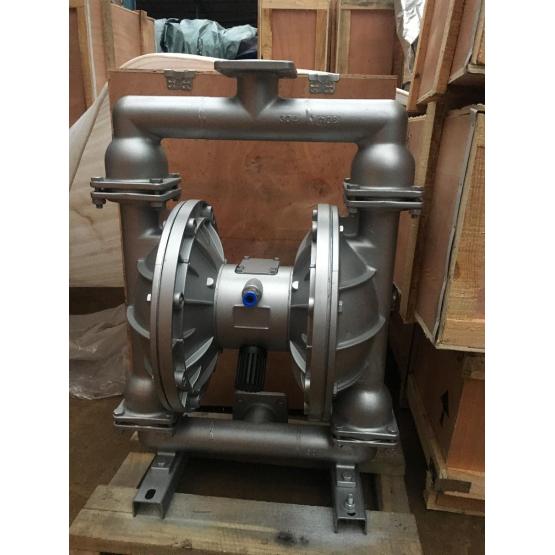

QBY stainless steel pneumatic diaphragm pump 2

QBY stainless steel pneumatic diaphragm pump

1. Pump peanut butter, kimchi, mashed potatoes, small red sausage, jam apple pulp, chocolate, etc.

2. Pumping paint, gum, and pigment.

3, adhesives and glue, all types can be pumped.

4, a variety of tiles, porcelain, bricks and pottery glaze.

5. After the oil well is drilled, pump the sediment and grout.

6. Pump various emulsions and fillers.

7. Pumping all kinds of sewage.

8. Use the pump as the tanker, and the barge clears the tank to absorb the sewage.

9, hops and fermented powder slurry, syrup, sugar dense.

10. Pumping water from mines, tunnels, tunnels, beneficiation, and slag. Pumping cement grout and mortar.

11, a variety of rubber pulp.

QBY-K pneumatic diaphragm pump product overview

     The pneumatic diaphragm pump is a novel volumetric pump that uses compressed air as the power source, distributes air through the reciprocating motion of the air valve, and drives the diaphragm to squeeze the conveying medium. The pump integrates the impurity pump, the self-priming pump, the mud pump, and the shielding. Advantages of conveying machinery such as pumps and submersible pumps. This series of pumps has the characteristics of beautiful structure, good physical resistance and durability. It is used for various corrosive liquids, granules, high viscosity, volatile, flammable, explosive, highly toxic liquid, ceramic glaze and fruit. The liquids such as pulp, glue, oil tank bottom oil recovery, temporary pouring cans can be exhausted, especially the problems of running, running, dripping, leaking and not allowing idling of the vane pump. Clean industrial gas or instrument gas, started at a low pressure of 0.1 kg, saves more than 30% of gas consumption under normal transportation conditions. It is a new generation of energy-saving pumps with good market prospects. Its performance parameters are similar to WLLDENPUMPS in Germany and MARIOWPUMPS in the United States.

    QBK type pneumatic diaphragm pump is currently produced in six scales: cast iron, aluminum alloy, stainless steel, engineering plastics, fluid lining fluorine and fluid lining. Users can choose according to the characteristics of the conveying medium.

QBY-K pneumatic diaphragm pump design features

1. The pneumatic diaphragm pump compresses air as power.

2. The pneumatic diaphragm pump is a volumetric pump which is caused by the reciprocating deformation of the diaphragm. The working principle is similar to that of the plunger pump. Due to the working principle of the diaphragm pump, the diaphragm pump has the following characteristics:

(1) The pneumatic diaphragm pump will not overheat: the compressed air is used as the power, and it is a process of expansion and heat absorption when exhausting. The temperature of the pneumatic pump is reduced when working, and no harmful gas is discharged.

(2) The pneumatic diaphragm pump does not generate electric sparks: the pneumatic diaphragm pump does not use electric power for power, and prevents static sparks after grounding.

(3) Pneumatic diaphragm pump can pass through the liquid containing particles: because it is volumetric and the inlet is a ball valve, it is not easy to be blocked.

(4) The shear force of the pneumatic diaphragm pump on the material is extremely low: how to suck in when working, so the agitation of the material is small, suitable for the transportation of unstable materials.

(5) The flow rate of the pneumatic diaphragm pump can be adjusted, and a throttle valve can be added at the material outlet to adjust the flow rate.

(6) The pneumatic diaphragm pump has the function of self-priming.

(7) The pneumatic diaphragm pump can be operated without air.

(8) The pneumatic diaphragm pump can work in diving.

(9) Pneumatic diaphragm pumps can transport a wide range of fluids, from low viscosity to high viscosity, and from corrosive to viscous.

(10) The pneumatic diaphragm pump has no complicated control system and no cables, fuses, etc.

(11) The pneumatic diaphragm pump is small in size, light in weight and easy to move.

(12) The pneumatic diaphragm pump does not need lubrication, so it is easy to maintain and will not pollute the working environment due to dripping.

(13) Pneumatic diaphragm pumps are always efficient and will not be degraded by wear.

(14) 100% energy utilization of pneumatic diaphragm pump, when the outlet is closed, the pump will automatically stop, equipment movement, wear, overload, heat

(15) The pneumatic diaphragm pump has no dynamic seal, and the maintenance is simple to avoid leakage. There is no dead point when working.

QBY-K pneumatic diaphragm pump product features

1. QBK type pneumatic diaphragm pump does not need water to be irrigated, the suction stroke is up to 7m, the lift is up to 50m, and the outlet pressure is ≥6kgf/cm2;

2, QBK type pneumatic diaphragm pump has a large flow and good performance, allowing the diameter of large particles to reach 10mm. When pumping mud and impurities, the pump wears little;

3, QBK type pneumatic diaphragm pump head and flow can be adjusted steplessly by the opening of the valve (pressure adjustment between 1-7kgf/cm2);

4. The pump has no rotating parts and no shaft seal. The diaphragm separates the pumped medium from the moving parts of the pump and the working medium, and the delivered medium will not leak out. Therefore, when pumping toxic, easy to play or corrosive media, it will not cause environmental pollution and endanger personal safety;

5, QBK type pneumatic diaphragm pump does not need electricity, safe and reliable in flammable and explosive places;

6, QBK type pneumatic diaphragm pump can be immersed in the medium to work;

7. QBK type pneumatic diaphragm pump has convenient function and reliable operation. It only needs to open and close the gas valve simply by opening and closing. Even if there is no medium running or sudden stop due to unexpected conditions, the pump will not be damaged. The load will automatically stop the pump, and it has self-protection performance. When the load returns to normal, it will start automatically.

8. Simple structure and less wearing parts. The pump structure is simple to install and easy to maintain. The medium to be pumped will not touch the valve, the connecting rod and other moving parts, unlike other types of pumps due to the rotor, piston, gear, The wear of the blades and other components causes the performance to gradually decrease;

9, QBK type pneumatic diaphragm pump can transport a more viscous liquid (viscosity below 10,000 centipoise);

10. The pump does not need to be lubricated with oil. Even if it is idling, it has no effect on the pump. This is a major feature of the pump.
