Powerful self-priming pump with vacuum assist system

Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
Min. Order: 1 Set/Sets
Delivery Time: 15 Days

Basic Info

Model No.: BODA-135

Impeller Number: Single-Stage Pump

Working Pressure: High Pressure Pump

Influent Type of Impeller: Single Suction Pump

Position of Pump Shaft: Horizontal Pump

Pump Casing Combined: Verticaljoint Surface Pump

Mounting Height: Since Irrigation Centrifugal Pumps

Impeller: Open

Usage: Pump

Product Name: S Series Double Suction Pump

Additional Info

Packaging: wooden box

Productivity: 500

Brand: BODA

Transportation: Ocean,Land,Air

Place of Origin: china

Supply Ability: 500

Certificate: ISO9901

HS Code: 4101201190

Port: Tianjin,Qingdao,Shanghai

Product Description

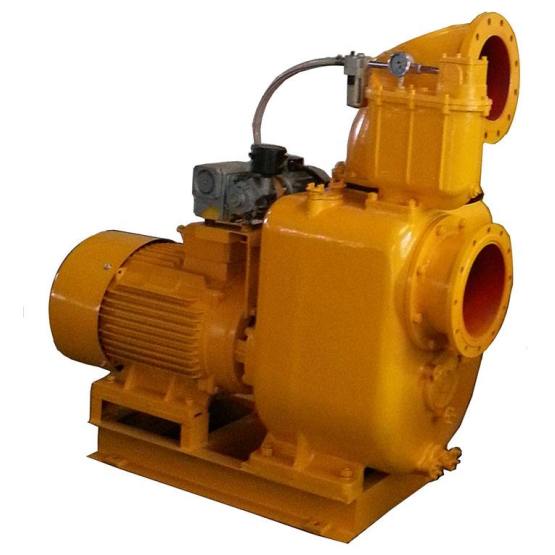

Powerful self-priming pump with vacuum assist system 1

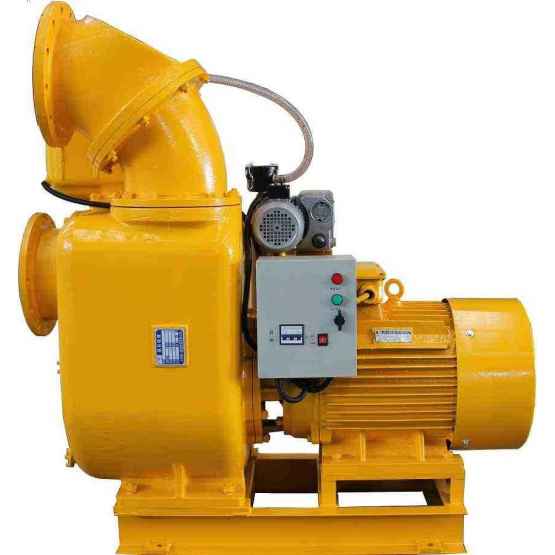

Powerful self-priming pump with vacuum assist system 2

Powerful self-priming pump with vacuum assist system 3

Powerful self-priming pump with vacuum assist system 4

Powerful self-priming pump with vacuum assist system Product overview

 The powerful self-priming pump that can be started without pumping water is optimized, improved and innovated by the technical engineers of our factory on the basis of the original self-priming pump. It fills the international and domestic types of historical blanks, can automatically start and automatically control without the need of irrigation water (ie, the vacuum pump set automatically starts when the vacuum is reduced to a low level, and the vacuum pump group automatically stops when the vacuum rises to a high level, without interference The main pump operates as an auxiliary function. It is designed to withstand dry grinding and can run for 30 minutes. It can absorb functions such as shallow water and gas-water mixture. The non-irrigating self-priming pump mechanical seal parts are all made of dry-grinding mechanical seal products, and the vacuum system can be added to the bracket between the motor and the powerful self-priming pump, which can be completed in only 30 seconds. The effect of rapid water discharge, and the vacuum system of the powerful self-priming pump can realize the function of automatic start and stop after one-button start. Under the condition of excessive suction, the powerful self-priming pump can not achieve the effect of pumping liquid. The vacuum inside the pump body of the self-priming pump is lowered, and the vacuum pump will automatically start to increase the self-priming ability of the self-priming pump. This series of self-priming pump products without watering is especially effective for urban flood control and rescue trucks, achieving good results in emergency rescue.

Main features of a powerful self-priming pump with vacuum assist system

1. Each time the powerful self-priming pump is started, the tank water is not needed, which realizes the needs of the majority of users: the self-priming pump that can be idling.

2, strong self-priming pump self-priming time is short, in the case of vacuum system can also absorb water, but the water absorption time can be extended to within 2-5 minutes to effluent, avoiding the use of general centrifugal pump products because the vacuum pump is damaged after the whole system The consequences of the embarrassment.

3. The powerful self-priming pump can pump all kinds of sewage and sewage with the effect of non-blocking self-priming sewage pump.

4. Compared with imported powerful self-priming pumps, the cost is much lower, so it is the ideal product for users.

5, the vacuum system can automatically start and stop, do not need to be manually guarded like the original vacuum pump, the drawbacks of manual start and stop.

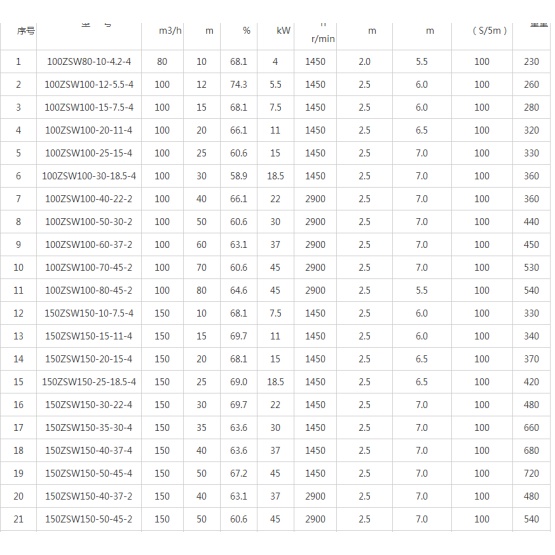

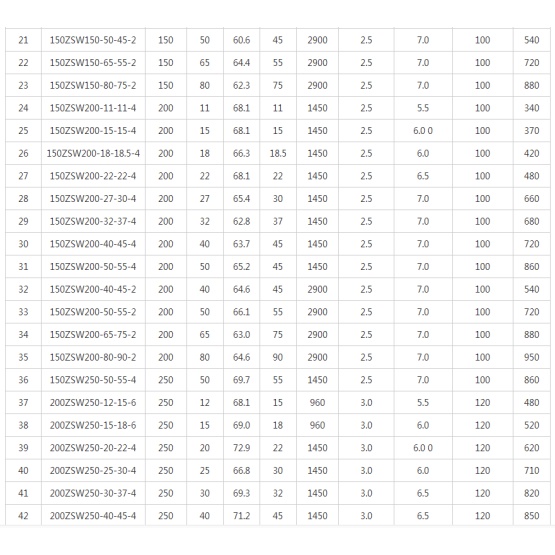

Powerful self-priming pump performance parameters with vacuum assist system

The flow rate is 100-6000m3/h, and the head can be produced from 10-120 meters. The self-priming pump flow head without watering can be customized according to user requirements. After the vacuum system is configured, the self-priming height can reach 8-10 meters and the horizontal distance is less than 20 meters. The lengthening can be customized according to user requirements.
