Basic Info

Model No.: BODA-060

Impeller Number: Single-Stage Pump

Working Pressure: High Pressure Pump

Influent Type of Impeller: Single Suction Pump

Position of Pump Shaft: Horizontal Pump

Pump Casing Combined: Horizontal Split Pumps

Mounting Height: Since Irrigation Centrifugal Pumps

Impeller: Open

Usage: Pumps

Product Name: S Series Double Suction Pump

Additional Info

Packaging: wooden box

Productivity: 500

Brand: BODA

Transportation: Ocean,Land,Air

Place of Origin: china

Supply Ability: 500

Certificate: ISO9901

HS Code: 4101201190

Port: Tianjin,Qingdao,Shanghai

Product Description

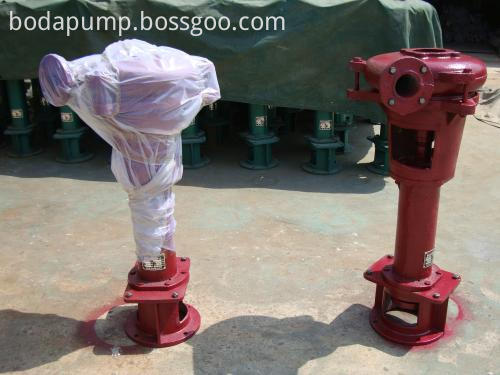

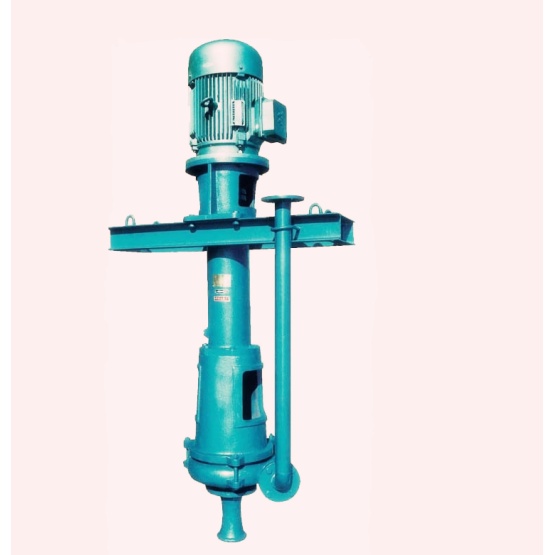

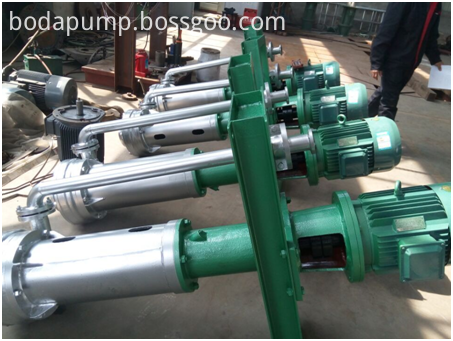

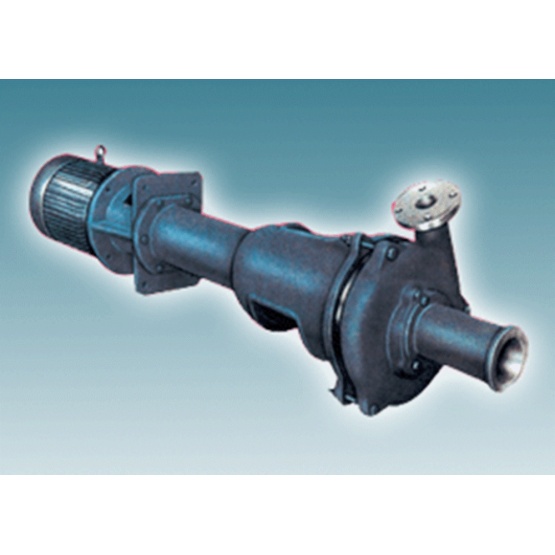

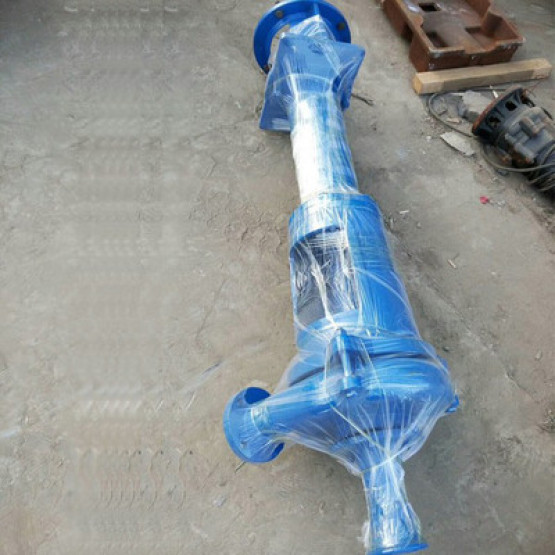

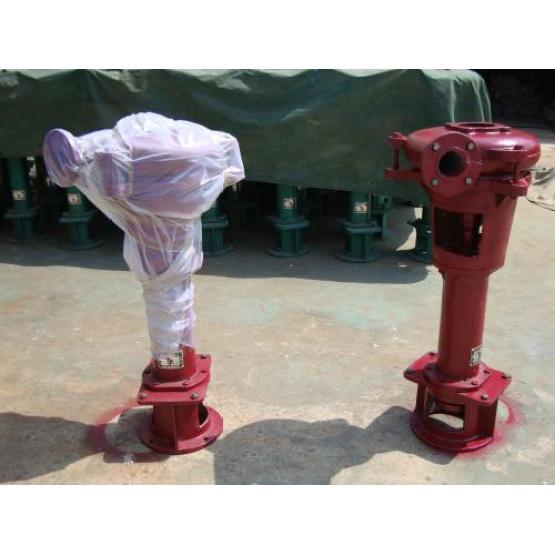

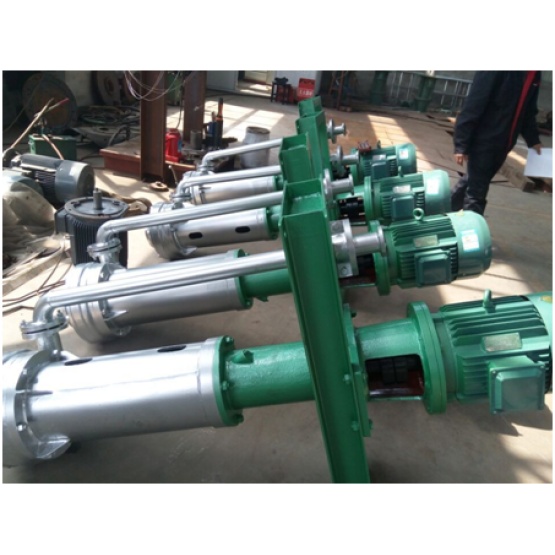

PNL Series mud pump

1.Capacity 30 to 151 m3/h

2.Head: 15 ~ 26 m

3.wear-resistant alloy material

4.it can supply ore liquid for mine

Model Significance Explanation:

2 PNL

2--pump export diameter (in); P-impurities pump; L-vertical (liquid)

Application

long-lives,simple and reliable mud slurry pump,it can supply ore liquid for mine.

Specification:

For Transport Solid-liquid Flow

Slurry Maximum Weight Concentration Is of 50-60%

wear-resistant alloy material

long life

General Description:

1.Shaft seals use general packing seal

2.Shaft seal water should be injected, the pressure is higher than the work pressure 1 kg/cm2

Parameter Scope:

Capacity: 30 to 151 m3 / h

Head: 15 ~ 26 m

Motor power: 11 ~ 22 kW
