LWB type impurity sewage vortex pump

Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm: FOB,CFR,CIF,FCA,CPT
Min. Order: 1 Set/Sets
Delivery Time: 15 Days

Basic Info


Model No.: BODA-193

Product Name: S Series Double Suction Pump


Additional Info


Packaging: wooden box

Productivity: 500

Brand: BODA

Transportation: Ocean,Land,Air

Place of Origin: china

Supply Ability: 500

Certificate: ISO9901

HS Code: 4101201190

Port: Tianjin,Qingdao,Shanghai


Product Description

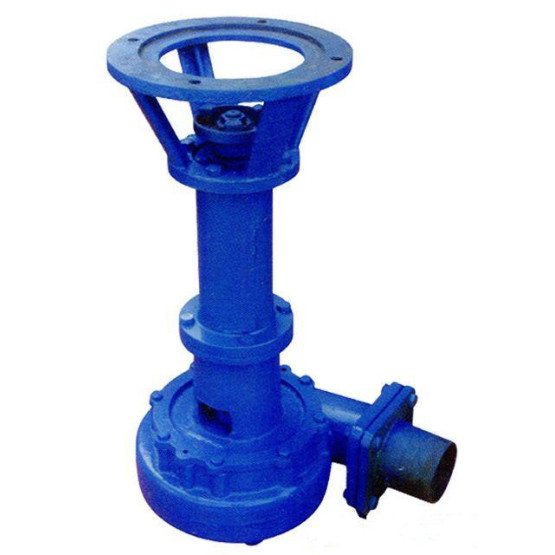

LWB type impurity sewage vortex pump 1_

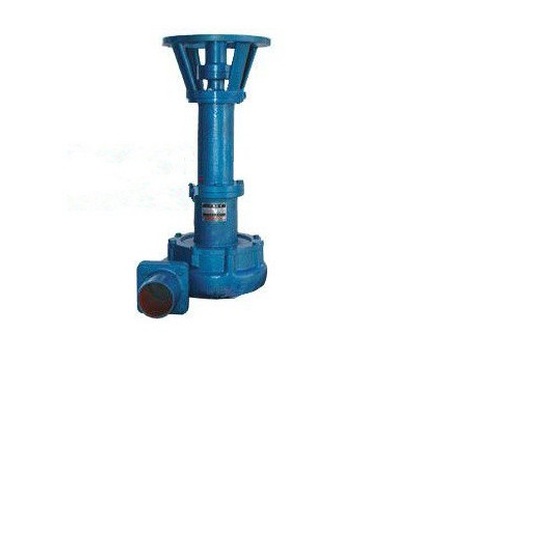

LWB type impurity sewage vortex pump 2_


The LWB type vortex pump is a new type of impurity sewage pump with low wear, no winding and no clogging. The pump is uniquely designed with the impeller not located in the center of the pump chamber and retracted away from the volute configuration. The conveying medium does not pass through the impeller, and directly obtains energy from the pump chamber, and the pumping action generated by the induced vortex when the impeller rotates is unimpededly outputted from the pump outlet.

Overview of LWB type impurity sewage vortex pump

      The LWB type vortex pump is a new type of impurity sewage pump with low wear, no winding and no clogging. The pump is uniquely designed with the impeller not located in the center of the pump chamber and retracted away from the volute configuration. The conveying medium does not pass through the impeller, and directly obtains energy from the pump chamber, and the pumping action generated by the induced vortex when the impeller rotates is unimpededly outputted from the pump outlet. The use of pipes to hydraulically transport various slurry-like fluids containing solid particles is a new means of transportation. It has low cost, less environmental pollution and high economic benefits; it has attracted extensive attention at home and abroad. In order to achieve the purpose of hydraulic transportation, it is necessary to produce a transfer pump that is easy to use, maintain, and is not easy to wall plug, has a long operating life, and is highly efficient. It is the heart of hydraulic transportation.

After repeated practice and continuous improvement, the LWB vertical vortex pump was developed and formed into a series. The pump has excellent performance, reasonable structure, easy to disassemble, repair and use, and has the unique advantage of no blockage. It is used for drainage and sewage disposal in industrial and mining enterprises, agriculture, urban and rural construction.

The pump can be installed on the floating body for surface operations, such as river excavation, dredging, dredging of fish pond shrimp ponds, excavation sinking, embankment and so on. LWB type vortex pump has the function of conveying solid liquid containing large particles without blocking; transporting fiber-containing material, suspended liquid without entanglement; conveying gas-containing liquid without breaking flow. The pump is particularly suitable for conveying a solid-liquid mixed liquid, the temperature of the medium to be transported does not exceed 50 ° C, the particle size of the solid particles is 80% of the outlet diameter, and the weight concentration is 60%. Widely used in industrial and mining enterprises, agriculture, construction, urban sewage and other transport of slurry feed, pulp, mineral sand, manure, mud, garbage and sewage and other liquids with various impurities. The pump has simple structure, reliable operation, low vibration, low noise and convenient use.
