Long Using Liner Slurry Pump Liner from China

Long Using Liner Slurry Pump Liner

Basic Info

Model No.: AHR LR TLR

Position Of Pump Shaft: Horizontal Pump

Origin: Shijiazhuang

Drive Type:: CV, DC, Zv, Cr

Color: As Your Requirement

Power: Electric Or Diesel

Theory:: Centrifugal Pump

Application: Slurry Pump Spare Parts

Package: In Wooden Case Or As Your Requirement

Material: Natural Rubber R55, R26, R08

Name: Single Stage Slurry Pump Rubber Lined Wet End Part

Additional Info

Packaging: In Wooden case or as your requirement

Productivity: In stock

Brand: Boda

Transportation: Ocean,Land,Air

Place of Origin: Shijiazhuang

Certificate: ISO

Product Description

Slurry Pump Spare Parts Provided:

Impeller, shaft, shaft sleeve;

seal (packing seal, mechanical seal,expeller seal.....);

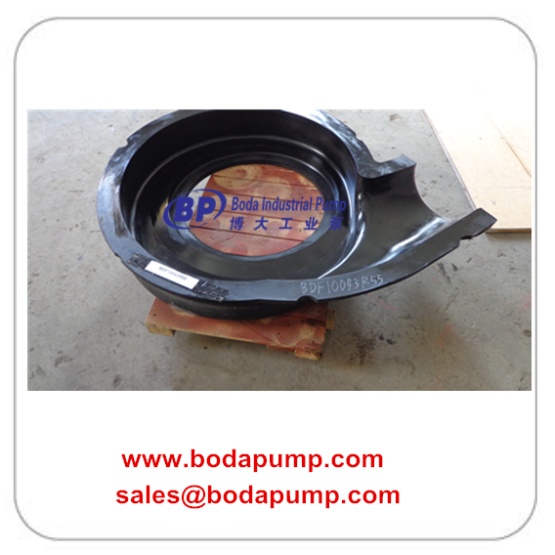

volute liner, frame plate liner, cover plate liner;

pump casing and all of the related parts.

Discharge /Suction Seal Ring,

O ring, Posion Ring, and so on

Slurry Pump Rubber Parts Material For Option:

RUBBER MATERIAL FOR SLURRY PUMP MAINLY INCLUDE THE FOLLOWINGS,

Natural rubber R26, R24,etc

Butyl rubber:S21, etc

Other rubber materials.

Material Code	RUBBER DESCRIPTION
R08	R08 is a black natural rubber, of low to medium hardness. R08 is used for impellers where superior erosive resistance is required in fine particle slurries. The hardness of R08 makes it more resistant to both chunking wear and dilation (ie, expansion caused by centrifugal forces) as compared to R26. R08 is generally only used for impellers.
R26	Anti Thermal Breakdown Rubber (ATB) is a soft natural rubber based on R26, but with improved thermal conductivity. It is intended for use as a liner material in slurry pumping applications where high impeller peripheral speeds are required.
S12	Elastomer S12 is a synthetic rubber which is generally used in applications involving fats, oils and waxes. S12 has moderate erosion resistance.
