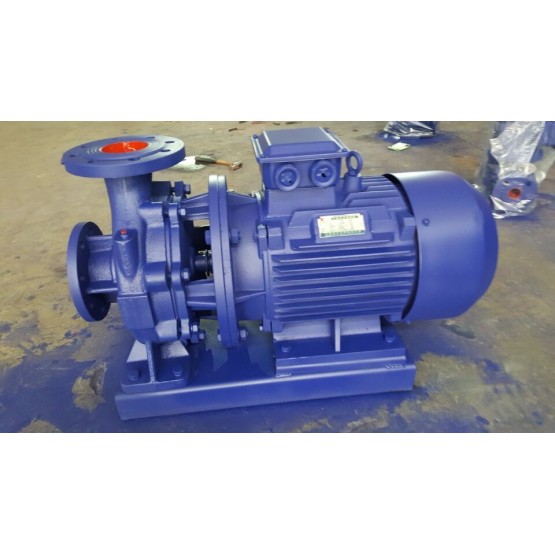

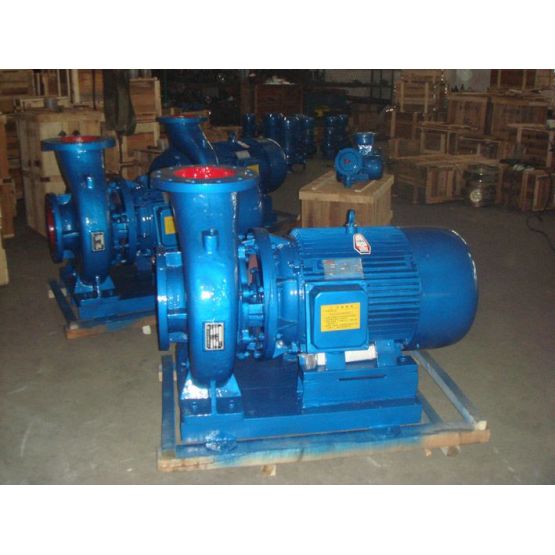

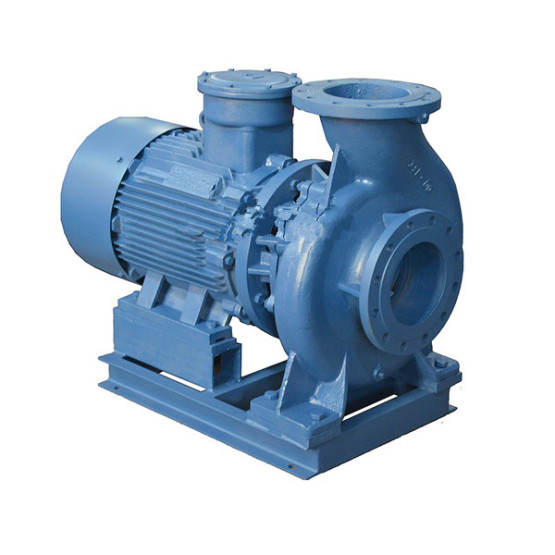

ISWB horizontal single-stage explosion-proof oil pump

Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm: FOB,CFR,CIF,FCA,CPT
Min. Order: 1 Set/Sets
Delivery Time: 15 Days

Basic Info


Model No.: BODA-206

Product Name: S Series Double Suction Pump


Additional Info


Packaging: wooden box

Productivity: 500

Brand: BODA

Transportation: Ocean,Land,Air

Place of Origin: china

Supply Ability: 500

Certificate: ISO9901

HS Code: 4101201190

Port: Tianjin,Qingdao,Shanghai


Product Description

ISWB horizontal single-stage single-suction explosion-proof oil pump horizontal pipeline oil pump 3

 Smooth operation: the absolute concentricity of the pump shaft and the excellent dynamic and static balance of the impeller ensure smooth operation and no vibration.

Drip water does not leak: Carbide seals of different materials ensure that there is no leakage in the transportation of different media.

Low noise: The pump under the support of two low-noise bearings runs smoothly. Except for the weak sound of the motor, there is basically no noise.

The failure rate is low: the structure is simple and reasonable, the key part adopts the international first-class quality matching, and the trouble-free working time of the whole machine is greatly improved.

Easy maintenance: replacement of seals, bearings, easy and convenient.

More land occupation: the exit can be left, right, and up, and the pipelines are installed and installed to save space.

Working conditions

1. Suction pressure ≤1.6MPa, or pump system high working pressure ≤1.6MPa, ie pump suction pressure + pump head ≤1.6MPa, pump static pressure test pressure is 2.5MPa, please indicate system work when ordering pressure. When the working pressure of the pump system is greater than 1.6 MPa, it should be separately proposed at the time of ordering, so that the over-flow part and the connecting part of the pump are made of cast steel at the time of manufacture.

2. The volume of solid particles in the medium to be transported does not exceed 0.1% of the unit volume, and the particle size is <0.2 mm.

Note: If the medium is used with small particles, please specify when ordering, so that the manufacturer can wear a wear-resistant mechanical seal.

Features

Smooth operation: the absolute concentricity of the pump shaft and the excellent dynamic and static balance of the impeller ensure smooth operation and no vibration.

Drip water does not leak: Carbide seals of different materials ensure that there is no leakage in the transportation of different media.

Low noise: The water pump supported by two low-noise bearings runs smoothly. Except for the weak sound of the motor, there is basically no noise.

The failure rate is low: the structure is simple and reasonable, and the key parts adopt the world-class quality; the matching, the trouble-free working time of the whole machine is greatly improved.

Convenient maintenance: replacement of seals, bearings, easy and convenient.

It occupies more land: the exit can be left, right and up, which is convenient for pipeline installation and space saving.

Isw type single stage single suction horizontal centrifugal pump. It adopts advanced hydraulic model, according to the performance parameters of is type centrifugal pump and the unique structure combination design of vertical pump, and is designed and manufactured in strict accordance with international iso2858. The product shaft seal is made of hard alloy mechanical seal device, which has high efficiency, energy saving and performance. Reliable, easy to install and use.

Main features of horizontal pipeline oil pump

Smooth operation: the absolute concentricity of the pump shaft and the excellent dynamic and static balance of the impeller ensure smooth operation and no vibration.

Drip water does not leak: Carbide seals of different materials ensure that there is no leakage in the transportation of different media.

Low noise: The pump under the support of two low-noise bearings runs smoothly. Except for the weak sound of the motor, there is basically no noise.

The failure rate is low: the structure is simple and reasonable, the key part adopts the international first-class quality matching, and the trouble-free working time of the whole machine is greatly improved.

Easy maintenance: replacement of seals, bearings, easy and convenient.

More land occupation: the exit can be left, right, and up, and the pipelines are installed and installed to save space.

The main purpose

1. isw horizontal clean water pump for conveying clean water and other liquids with physical and chemical properties similar to clean water, suitable for industrial and urban water supply and drainage, high-rise building pressurized water supply, garden sprinkler irrigation, fire boosting, long distance transportation, warm Through the refrigeration cycle, bathroom and other cold and warm water circulation pressurization and equipment, the use temperature t ≤ 80 ° C.

2, iswr horizontal heat pump is widely used in: metallurgy, chemical, textile, paper, hotels and restaurants such as boiler hot water pressurized circulation and urban heating system, iswr type use temperature t ≤ 120 °C.

3, iswh horizontal chemical pump, for transporting solid particles, corrosive, viscosity similar to water, suitable for petroleum, chemical, metallurgy, electric power, paper, food and pharmaceutical and synthetic fiber sectors, the use temperature is - 20 ° C ~ +120 ° C.

4, iswb horizontal pipeline oil pump, for transporting gasoline, kerosene, diesel and other oil products or flammable, explosive liquid, the temperature of the medium to be transported is -20 ~ +120 °C.
