ISG single suction vertical pipeline centrifugal pump

Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
Min. Order: 1 Set/Sets
Delivery Time: 15 Days

Basic Info

Model No.: BODA-085

Product Name: S Series Double Suction Pump

Additional Info

Packaging: wooden box

Productivity: 500

Brand: BODA

Transportation: Ocean,Land,Air

Place of Origin: china

Supply Ability: 500

Certificate: ISO9901

HS Code: 4101201190

Port: Tianjin,Qingdao,Shanghai

Product Description

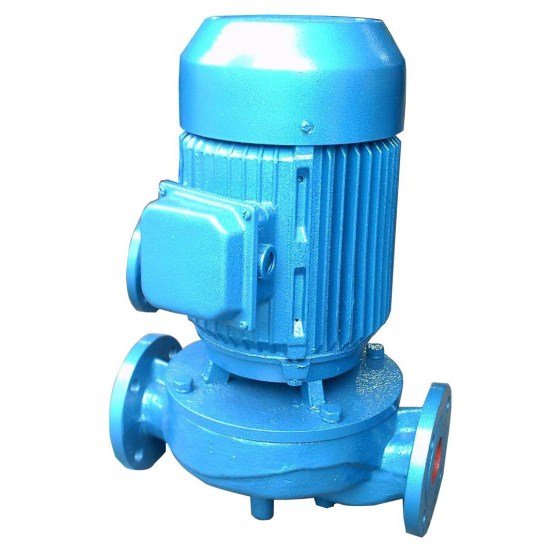

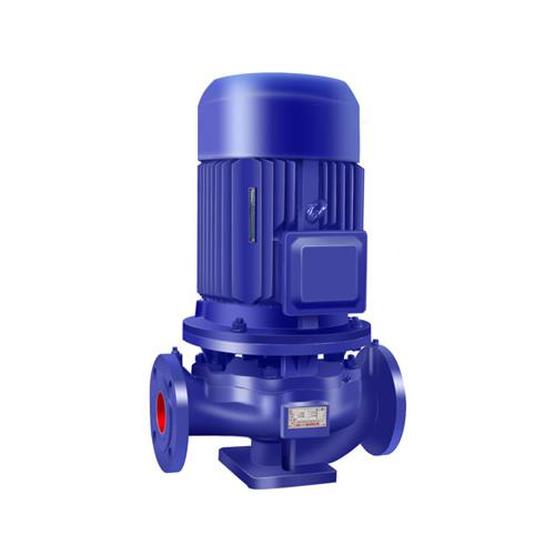

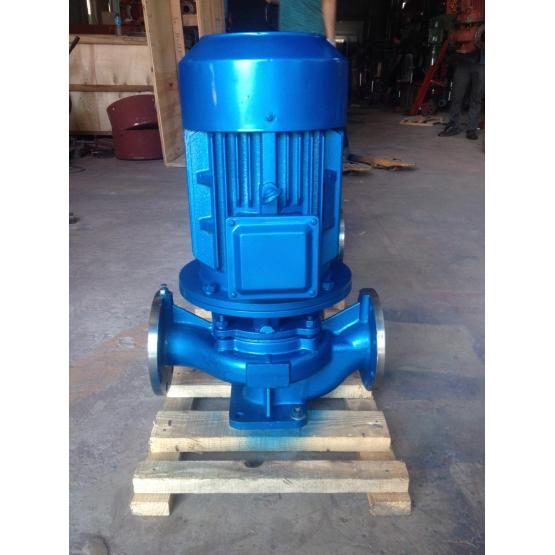

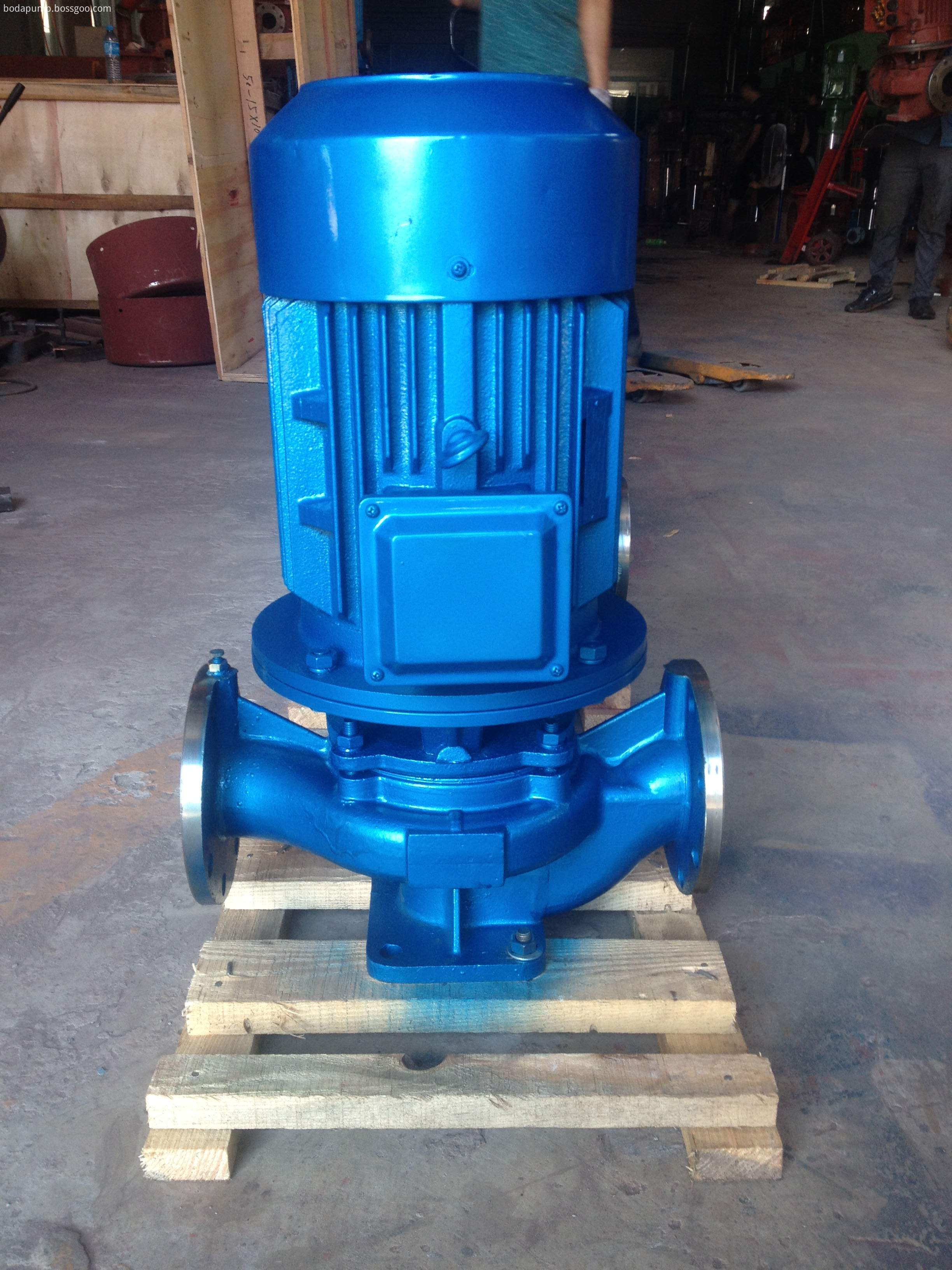

ISG series vertical pipeline centrifugal pump  vertical centrifugal pump 4

Single Stage Vertical Centrifugal Pump Overview

ISG series single-stage single-suction pipe centrifugal pump is the scientific and technical personnel of the unit. The water pump expert in the United Nations selects the domestic excellent hydraulic model, adopts the performance parameters of the IS-type centrifugal pump, and makes a clever combination design on the basis of the general vertical pump. At the same time, according to the use temperature, medium and other different on the basis of lSG type, the application of hot water, high temperature, corrosive chemical pump, oil pump. This series of products has the advantages of high efficiency, low noise, and reliable performance.

Single-stage vertical centrifugal pump product features

1. The clean water pump is of vertical structure, the inlet and outlet are the same diameter, and they are located on the same center line. They can be installed in the pipeline like a valve. The shape is compact and beautiful, the floor space is small, and the construction investment is low, such as adding a protective cover. It can be used outdoors.

2. The clean water pump impeller is directly mounted on the extension shaft of the motor. The axial length is short and the structure is compact. The pump and motor bearings are arranged reasonably, which can effectively balance the radial and axial loads generated by the pump operation, thus ensuring the operation of the pump. Smooth, low vibration and low noise.

3. The shaft seal adopts mechanical seal or mechanical seal combination. It adopts imported titanium alloy seal ring, medium-sized high temperature resistant mechanical seal and hard alloy material. It is wear-resistant and seal, which can effectively extend the service life of mechanical seal.

4, installation and maintenance is convenient, no need to dismantle the pipe road system, as long as the pump joint body nut can be removed to extract all the rotor components.

5. The series and parallel operation modes of the pump can be adopted according to the requirements of use, that is, the flow and the head.

6. The vertical and horizontal installation of the pump can be used according to the requirements of the pipeline arrangement.

Single stage vertical centrifugal pump working conditions

1. Suction pressure ≤1. 0MPa, or pump system high working pressure ≤1.6MPa, that is, pump suction pressure + pump head ≤1.6MPa, pump static pressure test pressure is 2.5MPa, please indicate the system working pressure when ordering. When the working pressure of the pump system is greater than 1.6MPa, it should be separately proposed at the time of ordering, so that the over-flow part and the connecting part of the pump are made of cast steel material during manufacture.

2. Ambient temperature <40 ° C, relative humidity <95%.

3. The volume of solid particles in the medium to be transported does not exceed 0.1% of the unit volume, and the particle size is <0.2 mm.

Note: If the medium is used with small particles, please specify when ordering, so that the manufacturer can wear a wear-resistant mechanical seal.

Single-stage vertical centrifugal pump main use

1ISG vertical pipeline centrifugal pump for conveying clean water and other liquids with physical and chemical properties similar to clean water, suitable for industrial and urban water supply and drainage, high-rise building pressurized water supply, garden sprinkler irrigation, fire boosting, long distance transportation, warm Through the refrigeration cycle, bathroom and other cold and warm water circulation pressurization and equipment, the use temperature T <80 °C.

2IRG (GRG) vertical hot water (high temperature) circulation pump is widely used in: energy, metallurgy, chemical, textile, paper, and high temperature hot water pressurized circulation of boilers and hotels and other urban heating system circulation pump, IRG type The use temperature T < 120 ° C, the GRG type use temperature T < 240 ° C.

3IHG vertical pipeline chemical pump for conveying liquids without solid particles, corrosive and viscosity similar to water, suitable for petroleum, chemical, metallurgical power, paper, food, pharmaceutical and synthetic fiber sectors, temperature is -20 °C ~ +120 °C.

4YG vertical pipeline oil pump for conveying petroleum products such as gasoline, kerosene and diesel oil. The temperature of the medium to be transported is -20 °C ~ +120 °C.
