Basic Info

Model No.: BODA-051

Product Name: S Series Double Suction Pump

Additional Info

Packaging: wooden box

Productivity: 500

Brand: BODA

Transportation: Ocean,Land,Air

Place of Origin: china

Supply Ability: 500

Certificate: ISO9901

HS Code: 4101201190

Port: Tianjin,Qingdao,Shanghai

Product Description

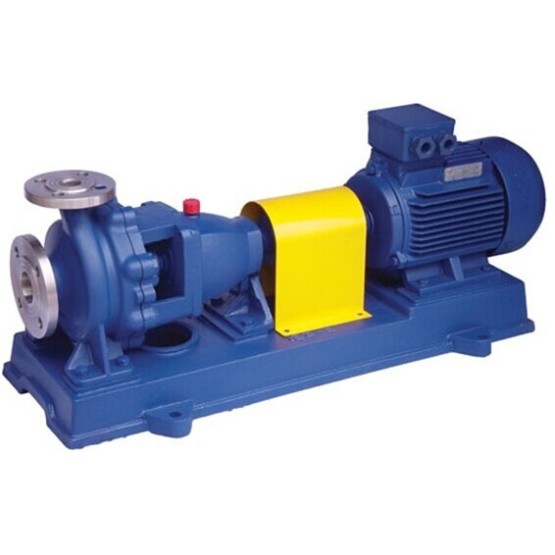

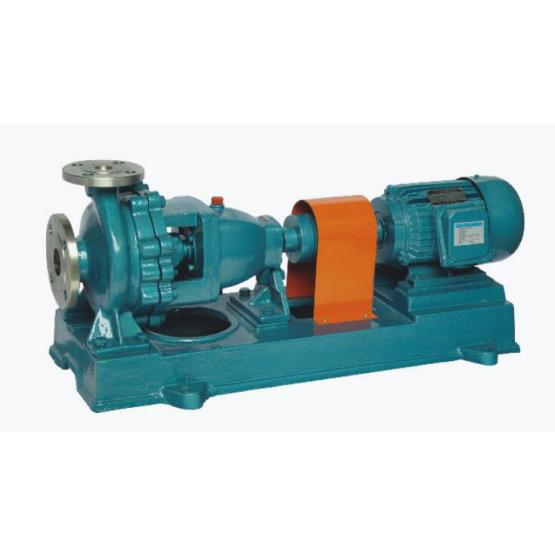

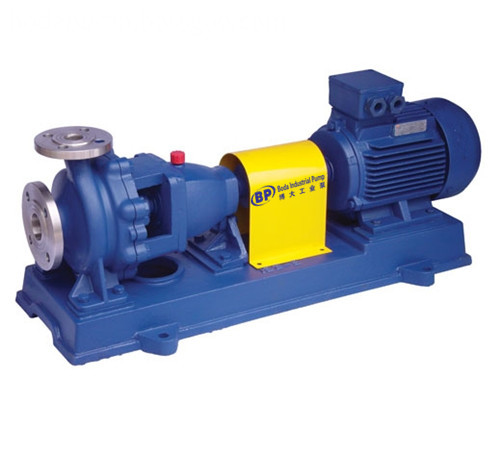

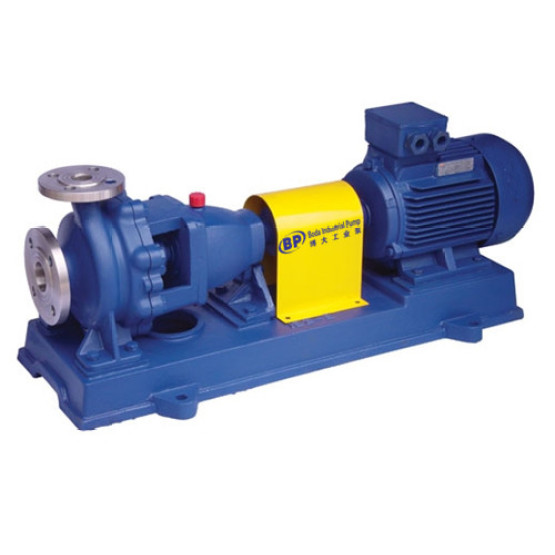

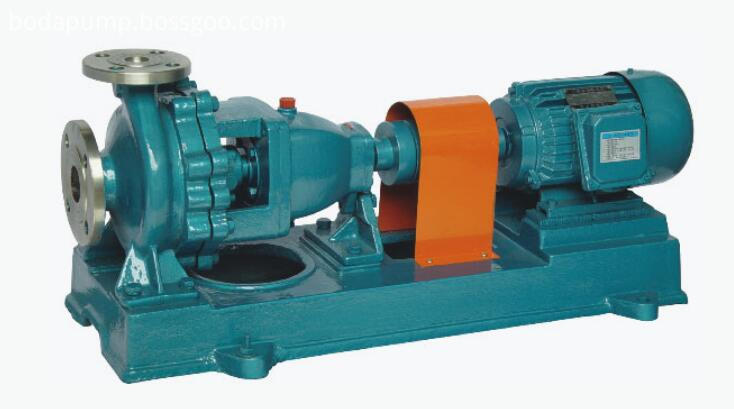

IH Stainless Steel Chemical Pump

Capacity: 6.3-400m3/h;

Head: 5-125m;

Power: 0.55-110kw;

Inlet diameter: 50-200mm

Summarize:

The IH Series are newly designed single-stage, single suction and cantilever centrifugal pumps. It is designed according to the international standard ISO2858 and manufactured according to the international standard ISO5199/DIS. Comparing the design guide line with old products, the efficiency is advanced about 5% and the steam corrosion quantity lowered about 2m. It is an economy high efficiency product, who has the stable capability and standard components. It is confirmed by the Nation mechanic industry department to replace the old style corrosion resist pump and import pumps.
Main Usage:
It is mainly used in chemical, oil, petrochemical industry, metallurgy, light industry, printing dyeing, pharmaceutics, environment protect, seawater desalt, paper making, food and etc .industrial departments to transport corrosive medium without suspended grain or medium.
Main Features:

High Popularization, stable capability, stainless steel material.medium temperature:-20 -+180, system work pressure ≤1.6MPa, flow:6.3-400m3/h. Outlet pressure:5-125m.
