High Head Horizontal Centrifugal Slurry Pump

Payment Type: L/C,T/T,Western Union
Incoterm: FOB,CFR,CIF
Min. Order: 1 Set/Sets
Delivery Time: 20 Days

Basic Info


Model No.: BHH

Working Pressure: High Pressure Pump

Position Of Pump Shaft: Horizontal Pump

Impeller: Closed

Material: A05 A07 A49

Origin: Shijiazhuang

Drive Type:: CV, DC, Zv, Cr

Color: As Your Requirement

Package: In Woodenc Case Or As Your Requirement

Power: Electric Or Diesel

Model No.: BHH


Additional Info


Packaging: In Wooden case or as your requirement

Productivity: 200sets/month

Brand: Boda

Transportation: Ocean,Land,Air

Place of Origin: Shijiazhuang

Certificate: ISO


Product Description

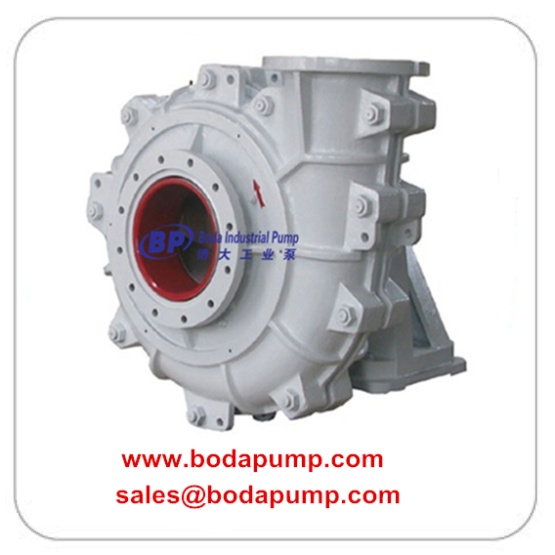

High Head Horizontal Centrifugal Slurry Pump:

Type BHH series slurry pumps are cantilevered, horizontal, centrifugal slurry pumps. They are designed for the handling highly abrasive, high density slurries in the metallurgical, mining, coal, power, building material and other industrial departments etc. The pumps of this type also may be installed in multistage series.

The frame plate liner and impeller for BHH pump are adoptable of wear-resistant metal only.

The shaft seals for type BHH pumps may be adoptable of gland seal or expeller seal. The discharge branch can be positioned at intervals of 45 degrees by request and oriented to any eight positions to suit installations and applications.


High Head Horizontal Centrifugal Slurry Pump Type Selection:

Refering to the performance curves of the pumpm the selected capacity range should be as follows:

Pump type BHH:  40%-80% for medium density, medium abrasive slurries

                             40%-100% for lower density, lower abrasive slurries


High Head Horizontal Centrifugal Slurry Pump Type Selection Chart:

BHH SELECTION CHART



High Head Horizontal Centrifugal Slurry Pump Performance Table:

Pump Model

Allowable Max. Power(kw)

Clear Water Performance

capacity Q

Head H(m)

speed n(r/min)

Max.eff. η%

NPSH (m)

Impeller Dia(mm)

m3/h

l/s

1.5/1C-BHH

30

16.2-34.2

4.5-9.5

25-92

1400-2200

20

2-5.5

330

3/2D-BHH

60

68.4-137

19-38

25-87

850-1400

47

3-7.5

457

4/3E-BHH

120

126-252

35-70

12-97

600-1400

50

2-5

508

6/4F-BHH

560

324-720

90-200

30-118

600-1000

64

3-8

711

8/6S-BHH

560

468-1008

130-280

20-94

500-1000

65

4-12

711


High Head Horizontal Centrifugal Slurry Pump Structure:

BHH PUMP STRUCTURE



packing seal


slurry pump expeller assembly

bearing assembly



Horizontal Abrasion & Corrosion Resistant Slurry Pump Application:

slurry pump application 1

slurry pump  application in series

heavy duty slurry pump

slurry pump application in Aluminum plant

slurry pump application




high head slurry pump
