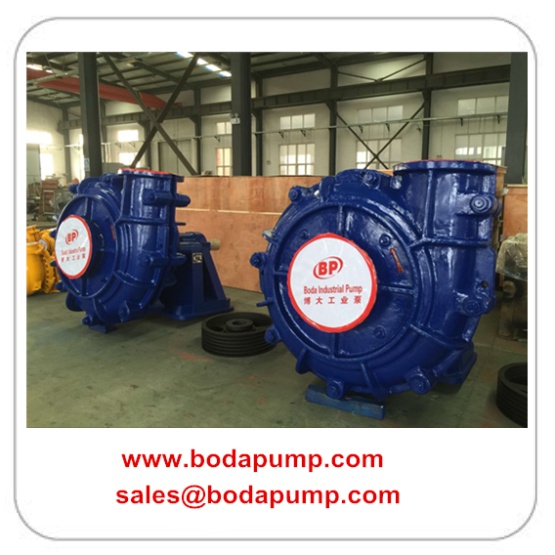

Gland Packing Seal Slurry Mud Mine Pumps

Payment Type: L/C,T/T,Western Union
Incoterm: FOB,CFR,CIF
Min. Order: 1 Set/Sets
Delivery Time: 20 Days

Basic Info


Model No.: BM BH

Working Pressure: High Pressure Pump

Position Of Pump Shaft: Horizontal Pump

Impeller: Closed

Material: A05 A07 A49

Origin: Shijiazhuang

Drive Type:: CV, DC, Zv, Cr

Color: As Your Requirement

Package: In Woodenc Case Or As Your Requirement

Power: Electric Or Diesel

Model No.: BM BH


Additional Info


Packaging: In Wooden case or as your requirement

Productivity: 300sets/month

Brand: Boda

Transportation: Ocean,Land,Air

Place of Origin: Shijiazhuang

Certificate: ISO


Product Description

Gland Packing Seal Slurry Mud Mine Pumps
1.  low noise and vibration
2.  metal or rubber liner
3.  corrosion resistance
4.  good sealing effects
5.  we can change the colors as you need
6.  we have the quality stander ensure
7.  smooth operation and high efficiency
8.  quick-wear parts has a long life


Application:

The slurry pumps are designed for delivering abrasive, large particle and high-density slurries and applied over the fields such as metallurgy, mining, coal, power, building materials, and environmental protection.

Structure characteristics:

1:   Adopts horizontal, vertical axis medium open type double pump shell structure, lining for cemented carbide  or rubber has good wear-resisting, corrosion resistance and high reliability

2:  High efficiency hard alloy, and low NPSH

3:  to meet the different operation conditions, adopted the brief type structure bearing parts, selected high bearing capacity design, alloy bearing grease lubrication oil.

4:   through adjusting the clearance between protection board and impeller, ensuring the pump efficient operation

5:   using packing seal, impeller sealing , container type mechanical seal to adapt to different operating mode requirement

6:   Pump and drive can choose straight league transmission, triangle, hydraulic transmission device coupled transmission, reducer drive

7:   the outflow direction can be installed by eight Angle rotation to adapt to different site installation conditions

8:   available to use multipole series, to satisfy the long-distance transmission requirements.


Slurry Pump Performance Table:

Type
Allowable Mating Max.Power(kw)
Clear Water Performance
Impeller
Capacity  Q
Head
H
(m)
Speed
n
(r/min)
Max EFF η(%)
NPSH)
(m)
No of Vanes
Impel Dia(mm)
(m3/h)
(L/S)
1.5/1B-BH
15
12.6-28.8
3.5-8
6-68
1200-3800
40
2-4
5
152
2/1.5B-BH
15
32.4-72
9-20
6-58
1200-3200
45
3.5-8
5
184
3/2C-BH
30
39.6-86.4
11-24
12-64
1300-2700
55
4-6
5
214
4/3C-BH
30
86.4-198
24-55
9-52
1000-2200
71
4-6
5
245
4/3D-BH
60
6/4D-BH
60
162-360
45-100
12-56
800-1550
65
5-8
5
365
6/4E-BH
120
6/4D-BH
60
180-396
50-110
7-61
600-1600
55
3-8
4
372
6/4E-BH
120
8/6E-BH
120
360-828
100-230
10-61
500-1140
72
2-9
5
510
8/6R-BH
300
8/6E-BH
120
360-828
100-230
7-52
400-1000
70
2.5-6
4
536
8/6R-BH
300
360-828
100-230
7-52
400-1000
70
2.5-6
4
536
10/8ST-BH
560
612-1368
170-380
11-61
400-850
71
4-10
5
686
12/10ST-BH
560
936-1980
260-550
7-68
300-800
82
6
5
762
14/12ST-BH
560
1260-2772
350-770
13-63
300-600
77
3-10
5
965
16/14ST-BH
560
1368-3060
380-850
11-63
250-550
79
4-10
5
1067
16/14TU-BH
1200
10/8E-BM
120
540-1440
150-400
14-60
600-1100
73
4-10
5
549


* Dimensionally Interchangeable with:

BM ≈Warman®M

BH≈Warman®AH


Horizontal Abrasion & Corrosion Resistant Slurry Pump Structure:

slurry pump elastomer parts

slurry pump metal parts

packing seal


slurry pump expeller assembly

bearing assembly



Horizontal Abrasion & Corrosion Resistant Slurry Pump Application:

slurry pump application 1

slurry pump  application in series

heavy duty slurry pump

slurry pump application in Aluminum plant

slurry pump application




Corrosion Resistant Slurry Pump
