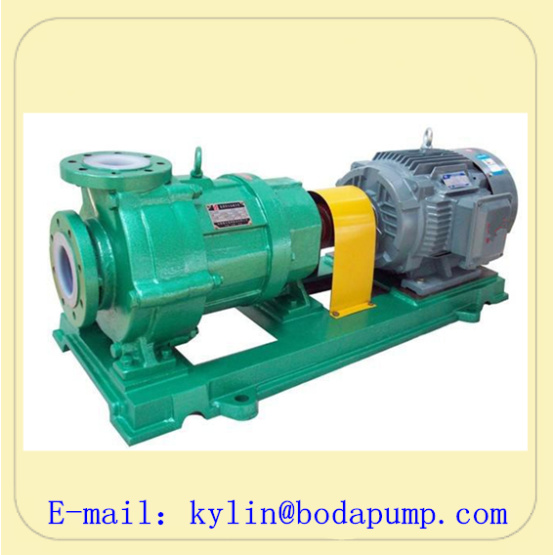

Fluoroplastic Alloy Chemical Pump (IHF)

Payment Type: L/C,T/T,Western Union
Incoterm: FOB,CFR,CIF
Min. Order: 1 Set/Sets
Delivery Time: 20 Days

Basic Info

Model No.: IHF

Working Pressure: High Pressure Pump

Position Of Pump Shaft: Horizontal Pump

Impeller: Closed

Material: A05 A07 A49

Origin: Shijiazhuang

Drive Type:: CV, DC, Zv, Cr

Color: As Your Requirement

Package: In Woodenc Case Or As Your Requirement

Power: Electric Or Diesel

Product Name: Martime Application Slurry Pump

Additional Info

Packaging: In Wooden case or as your requirement

Productivity: 300sets/month

Brand: Boda

Transportation: Ocean,Land,Air

Place of Origin: Shijiazhuang

Supply Ability: 300 sets per month

Certificate: ISO

HS Code: 8413709990

Port: Tianjin,SHANGHAI,Alashankou

Product Description

IHF fluoroplastic alloy chemical pump
a) Caliber: DN40-DN125mm
b) Flow: 6.3-250m3/hr
c) Head:20-100 m
d) Rotate speed: 2900r/min
e) Motor power:1.5-90 kw
IHF Series are single-stage, single suction and fluoroplastic Alloy centrifugal pumps.The pump has a corrosion-resistant, wear-resistant, high temperature resistant, non-aging, high mechanical strength, non-toxic decomposition. The pump body is made by metal housing and FEP (F46) lining, pump cover, impeller and shaft sleeve are made by integrated sintering and pressure molding of metal insert and Fluoro plastic housing, shaft seal is sealed by external bellow mechanical seal.

Main Features:
a)  Has advanced and logical structure
b)  Reliable sealing performance
c)  Stable operation
d)  Low noise and long life-span

Main Uage:
IHF series are widely used with the chemical, pharmaceutical, petroleum, metallurgy, electricity, electroplating, pickling, pesticide, paper and other industries in the liquid delivery, wastewater treatment and processing acids, etc. process.

Selection Chart:
